The VoxelVolume class provides a simple container for storage of voxelized 3D volume data. More...

#include <voxelvolume.h>

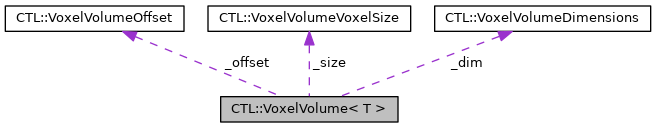

Collaboration diagram for CTL::VoxelVolume< T >:

[legend]

Classes
class	VoxelIterator

Public Types
using	Dimensions = VoxelVolumeDimensions

using	VoxelSize = VoxelVolumeVoxelSize

using	Offset = VoxelVolumeOffset

using	iterator = VoxelIterator< typename std::vector< T >::iterator >

using	const_iterator = VoxelIterator< typename std::vector< T >::const_iterator >

using	reverse_iterator = std::reverse_iterator< iterator >

using	const_reverse_iterator = std::reverse_iterator< const_iterator >

Public Member Functions
iterator	begin ()

iterator	end ()

const_iterator	begin () const

const_iterator	end () const

const_iterator	cbegin () const

const_iterator	cend () const

reverse_iterator	rbegin ()

reverse_iterator	rend ()

const_reverse_iterator	rbegin () const

const_reverse_iterator	rend () const

const_reverse_iterator	crbegin () const

const_reverse_iterator	crend () const

	VoxelVolume (const Dimensions &nbVoxels)

	VoxelVolume (const Dimensions &nbVoxels, const VoxelSize &voxelSize)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, float xSize, float ySize, float zSize)

	VoxelVolume (const Dimensions &nbVoxels, std::vector< T > data)

	VoxelVolume (const Dimensions &nbVoxels, const VoxelSize &voxelSize, std::vector< T > data)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, std::vector< T > data)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, float xSize, float ySize, float zSize, std::vector< T > data)

	VoxelVolume (const VoxelVolume &)=default

	VoxelVolume (VoxelVolume &&)=default

VoxelVolume &	operator= (const VoxelVolume &)=default

VoxelVolume &	operator= (VoxelVolume &&)=default

size_t	allocatedElements () const

const std::vector< T > &	constData () const

const std::vector< T > &	data () const

std::vector< T > &	data ()

const Dimensions &	dimensions () const

bool	hasData () const

const Dimensions &	nbVoxels () const

const Offset &	offset () const

T *	rawData ()

const T *	rawData () const

size_t	totalVoxelCount () const

const VoxelSize &	voxelSize () const

void	setData (std::vector< T > &&data)

void	setData (const std::vector< T > &data)

void	setVolumeOffset (const Offset &offset)

void	setVolumeOffset (float xOffset, float yOffset, float zOffset)

void	setVoxelSize (const VoxelSize &size)

void	setVoxelSize (float xSize, float ySize, float zSize)

void	setVoxelSize (float isotropicSize)

void	allocateMemory ()

void	allocateMemory (const T &initValue)

VoxelCoordinates	coordinates (const VoxelIndex &index) const

VoxelCoordinates	coordinates (uint x, uint y, uint z) const

VoxelCoordinates	cornerVoxel () const

VoxelIndex	index (const VoxelCoordinates &coordinates) const

VoxelIndex	index (float x_mm, float y_mm, float z_mm) const

bool	isIsotropic () const

void	fill (const T &fillValue)

void	freeMemory ()

T	max () const

T	min () const

VoxelVolume< T >	reslicedByX (bool reverse=false) const

VoxelVolume< T >	reslicedByY (bool reverse=false) const

VoxelVolume< T >	reslicedByZ (bool reverse=false) const

Chunk2D< T >	sliceX (uint slice) const

Chunk2D< T >	sliceY (uint slice) const

Chunk2D< T >	sliceZ (uint slice) const

float	smallestVoxelSize () const

VoxelCoordinates	volumeCorner () const

std::vector< T >::reference	operator() (uint x, uint y, uint z)

std::vector< T >::const_reference	operator() (uint x, uint y, uint z) const

std::vector< T >::reference	operator() (const VoxelIndex &index)

std::vector< T >::const_reference	operator() (const VoxelIndex &index) const

VoxelVolume< T > &	operator+= (const VoxelVolume< T > &other)

VoxelVolume< T > &	operator-= (const VoxelVolume< T > &other)

VoxelVolume< T > &	operator+= (const T &additiveShift)

VoxelVolume< T > &	operator-= (const T &subtractiveShift)

VoxelVolume< T > &	operator *= (const T &factor)

VoxelVolume< T > &	operator/= (const T &divisor)

VoxelVolume< T >	operator+ (const VoxelVolume< T > &other) const

VoxelVolume< T >	operator- (const VoxelVolume< T > &other) const

VoxelVolume< T >	operator+ (const T &additiveShift) const

VoxelVolume< T >	operator- (const T &subtractiveShift) const

VoxelVolume< T >	operator * (const T &factor) const

VoxelVolume< T >	operator/ (const T &divisor) const

Static Public Member Functions
static VoxelVolume< T >	fromChunk2DStack (const std::vector< Chunk2D< T >> &stack)

static VoxelVolume< T >	ball (float radius, float voxelSize, const T &fillValue)

static VoxelVolume< T >	cube (uint nbVoxel, float voxelSize, const T &fillValue)

static VoxelVolume< T >	cylinderX (float radius, float height, float voxelSize, const T &fillValue)

static VoxelVolume< T >	cylinderY (float radius, float height, float voxelSize, const T &fillValue)

static VoxelVolume< T >	cylinderZ (float radius, float height, float voxelSize, const T &fillValue)

Protected Attributes
Dimensions	_dim
	The dimensions of the volume.

VoxelSize	_size = { 0.0f, 0.0f, 0.0f }
	The size of individual voxels (in mm).

Offset	_offset = { 0.0f, 0.0f, 0.0f }
	The positional offset of the volume (in mm).

std::vector< T >	_data
	The internal data of the volume.

Private Member Functions
bool	hasEqualSizeAs (const std::vector< T > &other) const

template<class Function >
void	parallelExecution (const Function &f) const

Detailed Description

template<typename T>
class CTL::VoxelVolume< T >

The VoxelVolume class provides a simple container for storage of voxelized 3D volume data.

This class is the main container used for storage of voxelized 3D volume data. The container is templated. Internally, data is stored using an std::vector<T> (one-dimensional). Typical types for T are:

float: for absorption coefficients \([\mu]=\text{mm}^{-1}\).
unsigned short: for Hounsfield units (with offset 1000).

To specify the volume, the number of voxels in each dimensions must be defined. Physical meaning is assigned to the volume by defining the dimensions of the voxels (in millimeter). The physical center of the volume coincides with the origin of the world coordinate system. Optionally, an offset can be specified to describe the an off-center location of the volume in space. Without any offset, the center of the volume is located exactly in the origin \([0,0,0]\) of the world coordinate system.

The internal storage has row major order, i.e. consecutive values are first all voxel values in x-direction followed by y-direction. At last, z is incremented.

Constructor & Destructor Documentation

◆ VoxelVolume() [1/8]

template<typename T >

CTL::VoxelVolume< T >::VoxelVolume ( const Dimensions & nbVoxels )

explicit

Constructs a voxelized volume with nbVoxels voxels.

This constuctor does not allocate memory for the data. To enforce memory allocation, use allocateMemory().

◆ VoxelVolume() [2/8]

template<typename T >

CTL::VoxelVolume< T >::VoxelVolume	(	const Dimensions &	nbVoxels,
		const VoxelSize &	voxelSize
	)

Constructs a voxelized volume with nbVoxels voxels. Each voxel has the (physical) dimensions specified by voxelSize.

This constuctor does not allocate memory for the data. To enforce memory allocation, use allocateMemory().

◆ VoxelVolume() [3/8]

template<typename T >

CTL::VoxelVolume< T >::VoxelVolume	(	uint	nbVoxelX,
		uint	nbVoxelY,
		uint	nbVoxelZ
	)

Constructs a voxelized volume with [nbVoxelX, nbVoxelY, nbVoxelZ] voxels.

This constuctor does not allocate memory for the data. To enforce memory allocation, use allocateMemory().

◆ VoxelVolume() [4/8]

template<typename T >

CTL::VoxelVolume< T >::VoxelVolume	(	uint	nbVoxelX,
		uint	nbVoxelY,
		uint	nbVoxelZ,
		float	xSize,
		float	ySize,
		float	zSize
	)

Constructs a voxelized volume with [nbVoxelX, nbVoxelY, nbVoxelZ] voxels. Each voxel has the (physical) dimensions xSize x ySize x zSize (in millimeters).

This constuctor does not allocate memory for the data. To enforce memory allocation, use allocateMemory().

◆ VoxelVolume() [5/8]

template<typename T>

CTL::VoxelVolume< T >::VoxelVolume	(	const Dimensions &	nbVoxels,
		std::vector< T >	data
	)

Constructs a voxelized volume with nbVoxels voxels and sets its data to data.

A dimension consistency check is performed to set the data, i.e. the number of elements in data need to match the number of voxels in the volume. Throws std::domain_error in case of mismatching dimensions.

◆ VoxelVolume() [6/8]

template<typename T>

CTL::VoxelVolume< T >::VoxelVolume	(	const Dimensions &	nbVoxels,
		const VoxelSize &	voxelSize,
		std::vector< T >	data
	)

Constructs a voxelized volume with nbVoxels voxels and sets its data to data. Each voxel has the (physical) dimensions specified by voxelSize.

A dimension consistency check is performed to set the data, i.e. the number of elements in data need to match the number of voxels in the volume. Throws std::domain_error in case of mismatching dimensions.

◆ VoxelVolume() [7/8]

template<typename T>

CTL::VoxelVolume< T >::VoxelVolume	(	uint	nbVoxelX,
		uint	nbVoxelY,
		uint	nbVoxelZ,
		std::vector< T >	data
	)

Constructs a voxelized volume with [nbVoxelX, nbVoxelY, nbVoxelZ] voxels and sets its data to data.

A dimension consistency check is performed to set the data, i.e. the number of elements in data need to match the number of voxels in the volume. Throws std::domain_error in case of mismatching dimensions.

◆ VoxelVolume() [8/8]

template<typename T>

CTL::VoxelVolume< T >::VoxelVolume	(	uint	nbVoxelX,
		uint	nbVoxelY,
		uint	nbVoxelZ,
		float	xSize,
		float	ySize,
		float	zSize,
		std::vector< T >	data
	)

Constructs a voxelized volume with [nbVoxelX, nbVoxelY, nbVoxelZ] voxels and sets its data to data. The voxels have the (physical) dimensions xSize x ySize x zSize (in millimeters).

A dimension consistency check is performed to set the data, i.e. the number of elements in data need to match the number of voxels in the volume. Throws std::domain_error in case of mismatching dimensions.

Member Function Documentation

◆ allocatedElements()

template<typename T >

size_t CTL::VoxelVolume< T >::allocatedElements ( ) const

Returns the number of elements for which memory has been allocated. This is either zero if no memory has been allocated (after instantiation with a non-allocating constructor) or equal to the number of elements.

Same as: constData().size().

See also: totalVoxelCount(), allocateMemory().

◆ allocateMemory() [1/2]

template<typename T >

void CTL::VoxelVolume< T >::allocateMemory ( )

Enforces memory allocation. This resizes the internal std::vector to the required number of elements, given by the dimensions of the chunk, i.e. width x heigth.

As a result, allocatedElements() will return the same as totalVoxelCount().

See also: totalVoxelCount().

◆ allocateMemory() [2/2]

template<typename T>

void CTL::VoxelVolume< T >::allocateMemory ( const T & initValue )

Enforces memory allocation and if the current number of allocated elements is less than the number of elements in the chunk, additional copies of initValue are appended.

See also: allocatedElements(), allocateMemory(), fill().

◆ ball()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::ball	(	float	radius,
		float	voxelSize,
		const T &	fillValue
	)

static

Constructs a voxelized volume with voxels of isotropic dimensions voxelSize (in mm) and fills all voxels inside a ball of radius radius (in mm) around the center of the volume with fillValue. The voxels surrounding the ball are filled with zeros.

The resulting volume will have \( \left\lceil 2\cdot radius/voxelSize\right\rceil \) voxels in each dimension.

◆ constData()

template<typename T >

const std::vector< T > & CTL::VoxelVolume< T >::constData ( ) const

Returns a constant reference to the stored data vector.

◆ coordinates() [1/2]

template<typename T >

VoxelCoordinates CTL::VoxelVolume< T >::coordinates ( const VoxelIndex & index ) const

Returns the (world) coordinates (in mm) of the center of the voxel with index index.

◆ coordinates() [2/2]

template<typename T >

VoxelCoordinates CTL::VoxelVolume< T >::coordinates	(	uint	x,
		uint	y,
		uint	z
	)		const

Returns the (world) coordinates (in mm) of the center of the voxel with index \([x,y,z]\).

◆ cornerVoxel()

template<typename T >

VoxelCoordinates CTL::VoxelVolume< T >::cornerVoxel ( ) const

Returns the (world) coordinates (in mm) of the center of the voxel with index \([0,0,0]\), i.e. located at the corner of the volume.

◆ cube()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::cube	(	uint	nbVoxel,
		float	voxelSize,
		const T &	fillValue
	)

static

Constructs a cubic voxelized volume with nbVoxel x nbVoxel x nbVoxel voxels (voxel dimension: voxelSize x voxelSize x voxelSize), filled with fillValue.

◆ cylinderX()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::cylinderX	(	float	radius,
		float	height,
		float	voxelSize,
		const T &	fillValue
	)

static

Constructs a voxelized volume with voxels of isotropic dimensions voxelSize (in mm) and fills all voxels inside a cylinder of radius radius (in mm) and height height (in mm) aligned with the x-axis with* fillValue. The voxels surrounding the cylinder are filled with zeros.

The resulting volume will have \( \left\lceil 2\cdot radius/voxelSize\right\rceil \) voxels in y- and z-dimension and \( \left\lceil height/voxelSize\right\rceil \) in x-direction.

◆ cylinderY()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::cylinderY	(	float	radius,
		float	height,
		float	voxelSize,
		const T &	fillValue
	)

static

Constructs a voxelized volume with voxels of isotropic dimensions voxelSize (in mm) and fills all voxels inside a cylinder of radius radius (in mm) and height height (in mm) aligned with the y-axis with* fillValue. The voxels surrounding the cylinder are filled with zeros.

The resulting volume will have \( \left\lceil 2\cdot radius/voxelSize\right\rceil \) voxels in x- and z-dimension and \( \left\lceil height/voxelSize\right\rceil \) in y-direction.

◆ cylinderZ()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::cylinderZ	(	float	radius,
		float	height,
		float	voxelSize,
		const T &	fillValue
	)

static

Constructs a voxelized volume with voxels of isotropic dimensions voxelSize (in mm) and fills all voxels inside a cylinder of radius radius (in mm) and height height (in mm) aligned with the z-axis with* fillValue. The voxels surrounding the cylinder are filled with zeros.

The resulting volume will have \( \left\lceil 2\cdot radius/voxelSize\right\rceil \) voxels in x- and y-dimension and \( \left\lceil height/voxelSize\right\rceil \) in z-direction.

◆ data() [1/2]

template<typename T >

const std::vector< T > & CTL::VoxelVolume< T >::data ( ) const

Returns a constant reference to the stored data vector.

◆ data() [2/2]

template<typename T >

std::vector< T > & CTL::VoxelVolume< T >::data ( )

Returns a reference to the stored data vector.

◆ dimensions()

template<typename T >

const VoxelVolume< T >::Dimensions & CTL::VoxelVolume< T >::dimensions ( ) const

Returns the number of voxels in all three dimensions.

Same as nbVoxels().

◆ fill()

template<typename T>

void CTL::VoxelVolume< T >::fill ( const T & fillValue )

Fills the volume with fillValue. Note that this will overwrite all data stored in the volume.

This method allocates memory for the data if it has not been allocated before.

◆ freeMemory()

template<typename T >

void CTL::VoxelVolume< T >::freeMemory ( )

Deletes the data of the voxel volume.

See also: allocateMemory()

◆ fromChunk2DStack()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::fromChunk2DStack ( const std::vector< Chunk2D< T >> & stack )

static

Constructs a voxelized volume from a stack of slices (vector of Chunk2D). All slices in stack will be concatenated in z-direction.

Note that all slices are required to have identical dimensions. Throws an std::domain_error otherwise. Returns an empty VoxelVolume (all dimensions zero) when an empty stack is passed.

◆ hasData()

template<typename T >

bool CTL::VoxelVolume< T >::hasData ( ) const

Returns true if the number of allocated elements is equal to the total number of voxels. Otherwise the function returns false.

See also: totalVoxelCount(), allocatedElements()

◆ hasEqualSizeAs()

template<typename T>

bool CTL::VoxelVolume< T >::hasEqualSizeAs ( const std::vector< T > & other ) const

private

Checks if the number of elements in other match the voxel count of this instance.

◆ index() [1/2]

template<typename T >

VoxelIndex CTL::VoxelVolume< T >::index ( const VoxelCoordinates & coordinates ) const

Returns the index of the voxel whose center is closest to the world coordinate position coordinates.

Does not perform out of bounds checks.

◆ index() [2/2]

template<typename T >

VoxelIndex CTL::VoxelVolume< T >::index	(	float	x_mm,
		float	y_mm,
		float	z_mm
	)		const

Returns the index of the voxel whose center is closest to the world coordinate position \([x_mm, y_mm, z_mm]\)).

Does not perform out of bounds checks.

◆ isIsotropic()

template<typename T >

bool CTL::VoxelVolume< T >::isIsotropic ( ) const

Returns true if the voxel sizes in all three dimensions are considered equal; thus the size is isotropic. Returns false otherwise.

Same as

voxelSize().isIsotropic()

.

◆ max()

template<typename T >

T CTL::VoxelVolume< T >::max ( ) const

Returns the highest value in this volume. Returns zero for empty VoxelVolume objects.

◆ min()

template<typename T >

T CTL::VoxelVolume< T >::min ( ) const

Returns the smallest value in this volume. Returns zero for empty VoxelVolume objects.

◆ nbVoxels()

template<typename T >

const VoxelVolume< T >::Dimensions & CTL::VoxelVolume< T >::nbVoxels ( ) const

Returns the number of voxels in all three dimensions.

For the total number of voxels in the volume, use totalVoxelCount().

◆ offset()

template<typename T >

const VoxelVolume< T >::Offset & CTL::VoxelVolume< T >::offset ( ) const

Returns the offset of the volume.

◆ operator *()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::operator * ( const T & factor ) const

Returns a copy of this volume with all its voxel values multiplied by factor.

◆ operator *=()

template<typename T>

VoxelVolume< T > & CTL::VoxelVolume< T >::operator *= ( const T & factor )

Multiplies all voxel values in this volume by factor and returns a reference to this instance.

◆ operator()() [1/4]

template<typename T >

std::vector< T >::reference CTL::VoxelVolume< T >::operator()	(	uint	x,
		uint	y,
		uint	z
	)

Returns a reference to the data at voxel \([x,y,z]\). Does not perform boundary checks.

◆ operator()() [2/4]

template<typename T >

std::vector< T >::const_reference CTL::VoxelVolume< T >::operator()	(	uint	x,
		uint	y,
		uint	z
	)		const

Returns a constant reference to the data at voxel \([x,y,z]\). Does not perform boundary checks.

◆ operator()() [3/4]

template<typename T >

std::vector< T >::reference CTL::VoxelVolume< T >::operator() ( const VoxelIndex & index )

Returns a constant reference to the data at voxel index index. Does not perform boundary checks.

◆ operator()() [4/4]

template<typename T >

std::vector< T >::const_reference CTL::VoxelVolume< T >::operator() ( const VoxelIndex & index ) const

Returns a constant reference to the data at voxel index index. Does not perform boundary checks.

◆ operator+() [1/2]

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::operator+ ( const VoxelVolume< T > & other ) const

Returns the (element-wise) sum of this volume and other. Throws an std::domain_error if the dimensions of other and this volume do not match.

Note that the voxel size will be ignored (i.e. there is no consistency check). Hence, the result will always have the voxel size of this instance (i.e. left hand side operand).

◆ operator+() [2/2]

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::operator+ ( const T & additiveShift ) const

Returns a copy of this volume in which additiveShift has been added to all voxel values.

◆ operator+=() [1/2]

template<typename T>

VoxelVolume< T > & CTL::VoxelVolume< T >::operator+= ( const VoxelVolume< T > & other )

Adds the data from other to this volume and returns a reference to this instance. Throws an std::domain_error if the dimensions of other and this volume do not match.

Note that the voxel size will be ignored (i.e. there is no consistency check). Hence, the result will always have the voxel size of this instance.

◆ operator+=() [2/2]

template<typename T>

VoxelVolume< T > & CTL::VoxelVolume< T >::operator+= ( const T & additiveShift )

Adds additiveShift to all voxel values in this volume and returns a reference to this instance.

◆ operator-() [1/2]

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::operator- ( const VoxelVolume< T > & other ) const

Returns the (element-wise) difference between this volume and other. Throws an std::domain_error if the dimensions of other and this volume do not match.

Note that the voxel size will be ignored (i.e. there is no consistency check). Hence, the result will always have the voxel size of this instance (i.e. left hand side operand).

◆ operator-() [2/2]

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::operator- ( const T & subtractiveShift ) const

Returns a copy of this volume in which subtractiveShift has been subtracted from all voxel values.

◆ operator-=() [1/2]

template<typename T>

VoxelVolume< T > & CTL::VoxelVolume< T >::operator-= ( const VoxelVolume< T > & other )

Subtracts the data from other from this volume and returns a reference to this instance. Throws an std::domain_error if the dimensions of other and this volume do not match.

Note that the voxel size will be ignored (i.e. there is no consistency check). Hence, the result will always have the voxel size of this instance.

◆ operator-=() [2/2]

template<typename T>

VoxelVolume< T > & CTL::VoxelVolume< T >::operator-= ( const T & subtractiveShift )

Subtracts subtractiveShift from all voxel values in this volume and returns a reference to this instance.

◆ operator/()

template<typename T>

VoxelVolume< T > CTL::VoxelVolume< T >::operator/ ( const T & divisor ) const

Returns a copy of this volume with all its voxel values divided by divisor.

◆ operator/=()

template<typename T>

VoxelVolume< T > & CTL::VoxelVolume< T >::operator/= ( const T & divisor )

Divides all voxel values in this volume by divisor and returns a reference to this instance.

◆ parallelExecution()

template<typename T >

template<class Function >

void CTL::VoxelVolume< T >::parallelExecution ( const Function & f ) const

private

Helper function for running tasks in parallel over voxels.

◆ rawData() [1/2]

template<typename T >

T * CTL::VoxelVolume< T >::rawData ( )

Returns the pointer to the raw data.

Same as data().data().

◆ rawData() [2/2]

template<typename T >

const T * CTL::VoxelVolume< T >::rawData ( ) const

Returns the pointer to the constant raw data.

Same as constData().data().

◆ reslicedByX()

template<typename T >

VoxelVolume< T > CTL::VoxelVolume< T >::reslicedByX ( bool reverse = false ) const

Returns a copy of the volume resliced along the x-axis. If reverse is set true, reslicing will be performed in inverse order (i.e. with descending x value).

The reslicing process switches the orientation of the volume, such that the original axes: [x,y,z] change to [y,z,x].

◆ reslicedByY()

template<typename T >

VoxelVolume< T > CTL::VoxelVolume< T >::reslicedByY ( bool reverse = false ) const

Returns a copy of the volume resliced along the y-axis. If reverse is set true, reslicing will be performed in inverse order (i.e. with descending y value).

The reslicing process switches the orientation of the volume, such that the original axes: [x,y,z] change to [x,z,y].

◆ reslicedByZ()

template<typename T >

VoxelVolume< T > CTL::VoxelVolume< T >::reslicedByZ ( bool reverse = false ) const

Returns a copy of the volume resliced along the z-axis. If reverse is set true, reslicing will be performed in inverse order (i.e. with descending z value).

Since the volume is sliced in z-direction by default, this method will not change the axes when reverse is false (default value). It simply returns an exact copy of the volume.

◆ setData() [1/2]

template<typename T>

void CTL::VoxelVolume< T >::setData ( std::vector< T > && data )

Move-sets the data vector to data. This method performs a dimensionality check and throws an error if dimensions mismatch.

◆ setData() [2/2]

template<typename T>

void CTL::VoxelVolume< T >::setData ( const std::vector< T > & data )

Sets the data vector to data. This method performs a dimensionality check and throws an error if dimensions mismatch.

◆ setVolumeOffset() [1/2]

template<typename T >

void CTL::VoxelVolume< T >::setVolumeOffset ( const Offset & offset )

Sets the offset of the volume to offset. This is expected to be specified in millimeter.

◆ setVolumeOffset() [2/2]

template<typename T >

void CTL::VoxelVolume< T >::setVolumeOffset	(	float	xOffset,
		float	yOffset,
		float	zOffset
	)

Convenience setter. Sets the offset of the volume using the components xOffset, yOffset and zOffset. Offset values are expected to be specified in millimeter.

◆ setVoxelSize() [1/3]

template<typename T >

void CTL::VoxelVolume< T >::setVoxelSize ( const VoxelSize & size )

Sets the voxel size to size. This is expected to be specified in millimeter.

◆ setVoxelSize() [2/3]

template<typename T >

void CTL::VoxelVolume< T >::setVoxelSize	(	float	xSize,
		float	ySize,
		float	zSize
	)

Convenience setter. Sets the voxel size using the components xSize, ySize and zSize. Dimensions are expected to be specified in millimeter.

◆ setVoxelSize() [3/3]

template<typename T >

void CTL::VoxelVolume< T >::setVoxelSize ( float isotropicSize )

Sets an isotropic voxels size of isotropicSize (in mm).

◆ sliceX()

template<typename T >

Chunk2D< T > CTL::VoxelVolume< T >::sliceX ( uint slice ) const

Returns the yz-slice of the volume at position \(x=\) slice as a Chunk2D.

◆ sliceY()

template<typename T >

Chunk2D< T > CTL::VoxelVolume< T >::sliceY ( uint slice ) const

Returns the xz-slice of the volume at position \(y=\) slice as a Chunk2D.

◆ sliceZ()

template<typename T >

Chunk2D< T > CTL::VoxelVolume< T >::sliceZ ( uint slice ) const

Returns the xy-slice of the volume at position \(z=\) slice as a Chunk2D.

◆ smallestVoxelSize()

template<typename T >

float CTL::VoxelVolume< T >::smallestVoxelSize ( ) const

Returns the smallest edge length of the voxels (in millimeter).

◆ totalVoxelCount()

template<typename T >

size_t CTL::VoxelVolume< T >::totalVoxelCount ( ) const

Returns the total number of voxels in the volume. This is the product of the voxel count in all three dimensions.

◆ volumeCorner()

template<typename T >

VoxelCoordinates CTL::VoxelVolume< T >::volumeCorner ( ) const

Returns the (world) coordinates (in mm) of the corner of the volume (referring to voxel \([0,0,0]\)).

◆ voxelSize()

template<typename T >

const VoxelVolume< T >::VoxelSize & CTL::VoxelVolume< T >::voxelSize ( ) const

Returns the size of the voxels (in millimeter).

The documentation for this class was generated from the following files:

modules/src/gui/widgets/ctsystemview.h
modules/src/img/voxelvolume.h
modules/src/img/voxelvolume.tpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Detailed Description

template<typename T> class CTL::VoxelVolume< T >

Constructor & Destructor Documentation

◆ VoxelVolume() [1/8]

◆ VoxelVolume() [2/8]

◆ VoxelVolume() [3/8]

◆ VoxelVolume() [4/8]

◆ VoxelVolume() [5/8]

◆ VoxelVolume() [6/8]

◆ VoxelVolume() [7/8]

◆ VoxelVolume() [8/8]

Member Function Documentation

◆ allocatedElements()

◆ allocateMemory() [1/2]

◆ allocateMemory() [2/2]

◆ ball()

◆ constData()

◆ coordinates() [1/2]

◆ coordinates() [2/2]

◆ cornerVoxel()

◆ cube()

◆ cylinderX()

◆ cylinderY()

◆ cylinderZ()

◆ data() [1/2]

◆ data() [2/2]

◆ dimensions()

◆ fill()

◆ freeMemory()

◆ fromChunk2DStack()

◆ hasData()

◆ hasEqualSizeAs()

◆ index() [1/2]

◆ index() [2/2]

◆ isIsotropic()

◆ max()

◆ min()

◆ nbVoxels()

◆ offset()

◆ operator *()

◆ operator *=()

◆ operator()() [1/4]

◆ operator()() [2/4]

◆ operator()() [3/4]

◆ operator()() [4/4]

◆ operator+() [1/2]

◆ operator+() [2/2]

◆ operator+=() [1/2]

◆ operator+=() [2/2]

◆ operator-() [1/2]

◆ operator-() [2/2]

◆ operator-=() [1/2]

◆ operator-=() [2/2]

◆ operator/()

◆ operator/=()

◆ parallelExecution()

◆ rawData() [1/2]

◆ rawData() [2/2]

◆ reslicedByX()

◆ reslicedByY()

◆ reslicedByZ()

◆ setData() [1/2]

◆ setData() [2/2]

◆ setVolumeOffset() [1/2]

◆ setVolumeOffset() [2/2]

◆ setVoxelSize() [1/3]

◆ setVoxelSize() [2/3]

◆ setVoxelSize() [3/3]

◆ sliceX()

◆ sliceY()

◆ sliceZ()

◆ smallestVoxelSize()

◆ totalVoxelCount()

◆ volumeCorner()

template<typename T>
class CTL::VoxelVolume< T >
