CTL::AbstractCTSystemBlueprint Class Reference

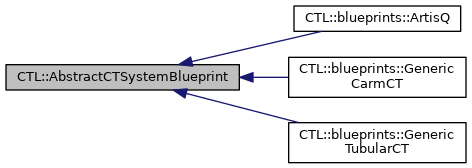

Inheritance diagram for CTL::AbstractCTSystemBlueprint:

Public Member Functions
virtual AbstractDetector *	detector () const =0
virtual AbstractGantry *	gantry () const =0
virtual AbstractSource *	source () const =0
virtual	~AbstractCTSystemBlueprint ()=default
virtual QString	systemName () const
virtual std::vector< AbstractBeamModifier * >	modifiers () const

Protected Member Functions
	AbstractCTSystemBlueprint ()=default
	AbstractCTSystemBlueprint (const AbstractCTSystemBlueprint &)=default
	AbstractCTSystemBlueprint (AbstractCTSystemBlueprint &&)=default
AbstractCTSystemBlueprint &	operator= (const AbstractCTSystemBlueprint &)=default
AbstractCTSystemBlueprint &	operator= (AbstractCTSystemBlueprint &&)=default

Constructor & Destructor Documentation

~AbstractCTSystemBlueprint()

CTL::AbstractCTSystemBlueprint::~AbstractCTSystemBlueprint ( )

virtualdefault

Default destructor. Virtual for purpose of polymorphism.

AbstractCTSystemBlueprint() [1/3]

CTL::AbstractCTSystemBlueprint::AbstractCTSystemBlueprint ( )

protecteddefault

Constructs the source component for the blueprinted system. The caller must take care of the ownership of the constructed object.

Implement this method in derived classes such that it constructs the specific source component that shall be used in the system.

Standard default constructor.

AbstractCTSystemBlueprint() [2/3]

CTL::AbstractCTSystemBlueprint::AbstractCTSystemBlueprint ( const AbstractCTSystemBlueprint &  )

protecteddefault

Standard copy constructor.

AbstractCTSystemBlueprint() [3/3]

CTL::AbstractCTSystemBlueprint::AbstractCTSystemBlueprint ( AbstractCTSystemBlueprint &&  )

protecteddefault

Standard move constructor.

Member Function Documentation

detector()

AbstractDetector * CTL::AbstractCTSystemBlueprint::detector ( ) const

pure virtual

Constructs the detector component for the blueprinted system. The caller must take care of the ownership of the constructed object.

Implement this method in derived classes such that it constructs the specific detector component that shall be used in the system.

Implemented in CTL::blueprints::ArtisQ, CTL::blueprints::GenericCarmCT, and CTL::blueprints::GenericTubularCT.

gantry()

AbstractGantry * CTL::AbstractCTSystemBlueprint::gantry ( ) const

pure virtual

Constructs the gantry component for the blueprinted system. The caller must take care of the ownership of the constructed object.

Implement this method in derived classes such that it constructs the specific gantry component that shall be used in the system.

Implemented in CTL::blueprints::ArtisQ, CTL::blueprints::GenericCarmCT, and CTL::blueprints::GenericTubularCT.

modifiers()

std::vector< GenericBeamModifier * > CTL::AbstractCTSystemBlueprint::modifiers ( ) const

inlinevirtual

Constructs all beam modifier components blueprinted for the system and returns a vector containing pointers to all constructed objects.

(Optionally) implement this method in derived classes such that it constructs the specific beam modifier components that shall be used in the system.

operator=() [1/2]

AbstractCTSystemBlueprint & CTL::AbstractCTSystemBlueprint::operator= ( const AbstractCTSystemBlueprint &  )

protecteddefault

Standard copy assignment operator.

operator=() [2/2]

AbstractCTSystemBlueprint & CTL::AbstractCTSystemBlueprint::operator= ( AbstractCTSystemBlueprint &&  )

protecteddefault

Standard move assignment operator.

source()

AbstractSource * CTL::AbstractCTSystemBlueprint::source ( ) const

pure virtual

Constructs the source component for the blueprinted system. The caller must take care of the ownership of the constructed object.

Implement this method in derived classes such that it constructs the specific source component that shall be used in the system.

Implemented in CTL::blueprints::ArtisQ, CTL::blueprints::GenericCarmCT, and CTL::blueprints::GenericTubularCT.

systemName()

QString CTL::AbstractCTSystemBlueprint::systemName ( ) const

inlinevirtual

Returns the name of the blueprinted system.

Default return value is "Blueprinted system". Reimplement this method in derived classes to return the desired system name.

Reimplemented in CTL::blueprints::ArtisQ, CTL::blueprints::GenericCarmCT, and CTL::blueprints::GenericTubularCT.

---

The documentation for this class was generated from the following files:

• modules/src/acquisition/ctsystembuilder.h
• modules/src/acquisition/ctsystembuilder.cpp
