Base class for detector components. More...

#include <abstractdetector.h>

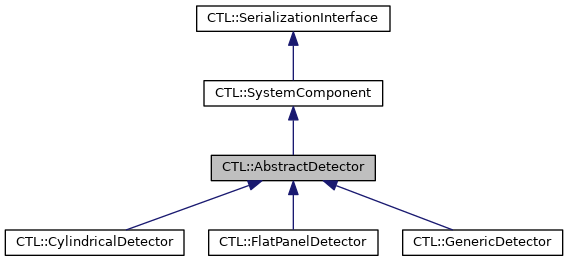

Inheritance diagram for CTL::AbstractDetector:

[legend]

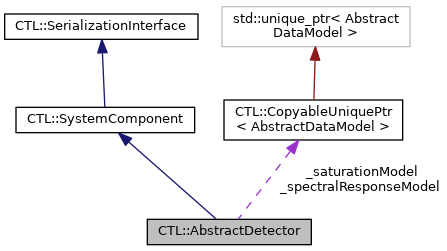

Collaboration diagram for CTL::AbstractDetector:

[legend]

Public Types
enum	{ Type = 100 }

enum	SaturationModelType { Extinction, PhotonCount, Intensity, Undefined }

typedef mat::Location	ModuleLocation

Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

virtual QVector< ModuleLocation >	moduleLocations () const =0

	AbstractDetector (const QSize &nbPixelPerModule, const QSizeF &pixelSize, const QString &name)

QString	info () const override

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

void	setSaturationModel (AbstractDataModel *model, SaturationModelType type)

void	setSaturationModel (std::unique_ptr< AbstractDataModel > model, SaturationModelType type)

void	setSpectralResponseModel (AbstractDataModel *model)

void	setSpectralResponseModel (std::unique_ptr< AbstractDataModel > model)

uint	nbDetectorModules () const

const QSize &	nbPixelPerModule () const

const QSizeF &	pixelDimensions () const

const QSizeF &	pixelSize () const

ModuleLocation	moduleLocation (uint module) const

const AbstractDataModel *	saturationModel () const

const AbstractDataModel *	spectralResponseModel () const

XYDataSeries	inputResponse (float from, float to, uint nbSamples) const

XYDataSeries	spectralResponse (float from, float to, uint nbSamples) const

SaturationModelType	saturationModelType () const

double	skewAngle () const

bool	hasSaturationModel () const

bool	hasSpectralResponseModel () const

QSizeF	moduleDimensions () const

SingleViewData::Dimensions	viewDimensions () const

std::unique_ptr< GenericDetector >	toGeneric () const

Public Member Functions inherited from CTL::SystemComponent
int	type () const override

	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

virtual SystemComponent *	clone () const

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Protected Member Functions
	AbstractDetector (const QString &name)

	AbstractDetector (const AbstractDetector &)=default

	AbstractDetector (AbstractDetector &&)=default

AbstractDetector &	operator= (const AbstractDetector &)=default

AbstractDetector &	operator= (AbstractDetector &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Protected Attributes
QSize	_nbPixelPerModule
	Number of pixels in each detector module.

QSizeF	_pixelSize
	Size of individual pixels (in mm).

double	_skewAngle = 0.0
	obliqueness angle (specifies non-orthogonality of pixels)

AbstractDataModelPtr	_spectralResponseModel
	Data model for spectral detector response.

AbstractDataModelPtr	_saturationModel
	Data model for saturation of measured values.

SaturationModelType	_saturationModelType = Undefined
	States whether saturation model refers to intensity or extinction values.

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Related Functions
(Note that these are not member functions.)

std::unique_ptr< AbstractDetector >	makeDetector (ConstructorArguments &&... arguments)

Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Additional Inherited Members
Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)

Detailed Description

Base class for detector components.

This is the base class for all detector components. Detectors are always considered to be composed of multiple flat panel elements, called modules. The arrangement of all modules is described by a vector of ModuleLocation objects, one for each of the modules. The ModuleLocation object must contain the position of the module in world coordinates as well as a rotation matrix that represents the transformation from the module's coordinate system to the CT-system (i.e. the coordinate system of the detector as a whole). In addition to the arrangement, detector modules are characterized by their number of pixels (channels x rows) and the corresponding dimensions of an individual pixel (width x height).

Custom detector types can be implemented by creating a sub-class of AbstractDetector. Such sub-classes need to implement the method moduleLocations() that should extract the location of all flat panel modules in the detector based on the specific parametrization chosen for the sub-class.

When creating a sub-class of AbstractDetector, make sure to register the new component in the enumeration using the CTL_TYPE_ID(newIndex) macro. It is required to specify a value for newIndex that is not already in use. This can be easily achieved by use of values starting from GenericComponent::UserType, as these are reserved for user-defined types.

To enable de-/serialization of objects of the new sub-class, reimplement the toVariant() and fromVariant() methods. These should take care of all newly introduced information of the sub-class. Additionally, call the macro DECLARE_SERIALIZABLE_TYPE(YourNewClassName) within the .cpp file of your new class (substitute "YourNewClassName" with the actual class name). Objects of the new class can then be de-/serialized with any of the serializer classes (see also AbstractSerializer).

Member Typedef Documentation

◆ ModuleLocation

CTL::AbstractDetector::ModuleLocation

Synonym for mat::Location.

Member Enumeration Documentation

◆ SaturationModelType

enum CTL::AbstractDetector::SaturationModelType

Specification of whether the saturation model of this instance relates to intensity or extinction values.

Constructor & Destructor Documentation

◆ AbstractDetector() [1/2]

CTL::AbstractDetector::AbstractDetector	(	const QSize &	nbPixelPerModule,
		const QSizeF &	pixelSize,
		const QString &	name
	)

inline

Constructs an AbstractDetector object with name name which contains modules that have nbPixelPerModule pixels (channels x rows) with physical dimensions of pixelSize (width mm x height mm).

◆ AbstractDetector() [2/2]

CTL::AbstractDetector::AbstractDetector ( const QString & name )

inlineprotected

Constructs an empty object named name.

Member Function Documentation

◆ fromVariant()

void CTL::AbstractDetector::fromVariant ( const QVariant & variant )

inlineoverridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::CylindricalDetector, CTL::GenericDetector, and CTL::FlatPanelDetector.

◆ hasSaturationModel()

bool CTL::AbstractDetector::hasSaturationModel ( ) const

inline

Returns true if this instance has a saturation model.

◆ hasSpectralResponseModel()

bool CTL::AbstractDetector::hasSpectralResponseModel ( ) const

inline

Returns true if this instance has a saturation model.

◆ info()

QString CTL::AbstractDetector::info ( ) const

inlineoverridevirtual

Returns a formatted string with information about the object.

In addition to the information from the base class, the info string contains the following details:

Nb. of detector modules
Nb. of pixels per module
Pixel size.

Reimplemented from CTL::SystemComponent.

Reimplemented in CTL::CylindricalDetector, CTL::GenericDetector, and CTL::FlatPanelDetector.

◆ inputResponse()

XYDataSeries CTL::AbstractDetector::inputResponse	(	float	from,
		float	to,
		uint	nbSamples
	)		const

inline

Returns a sampled series of the saturation model of this instance.

Returns an empty XYDataSeries if this instance does not have a saturation model set.

◆ moduleDimensions()

QSizeF CTL::AbstractDetector::moduleDimensions ( ) const

inline

Returns the (physical) dimensions of an individual detector module as QSizeF. Dimensions are specified as width x height.

◆ moduleLocation()

AbstractDetector::ModuleLocation CTL::AbstractDetector::moduleLocation ( uint module ) const

inline

Returns the location of module module. Same as moduleLocations().at(module).

Using this method is typically very inefficient, as it always requires computation of all module locations. In case you need multiple calls to this method, consider storing a local copy of the entire set of locations (using moduleLocations()) and querying individual module locations from that local copy using QVector::at().

See also: moduleLocations()

◆ moduleLocations()

QVector< ModuleLocation > CTL::AbstractDetector::moduleLocations ( ) const

pure virtual

Returns the location (i.e. position and rotation) of all individual detector modules with respect to the (physical) center of the detector. These locations are considered in addition to the global positioning of the detector (managed by AbstractGantry).

Implement this method in derived classes to compute the locations of individual modules based on the specific parametrization of that particular sub-class.

Implemented in CTL::GenericDetector, CTL::CylindricalDetector, and CTL::FlatPanelDetector.

◆ nbDetectorModules()

uint CTL::AbstractDetector::nbDetectorModules ( ) const

inline

Returns the number of detector modules.

Same as moduleLocations().size().

◆ nbPixelPerModule()

const QSize & CTL::AbstractDetector::nbPixelPerModule ( ) const

inline

Returns the number of pixels in an individual module as QSize. Dimensions are specified as detector channels x rows.

◆ pixelDimensions()

const QSizeF & CTL::AbstractDetector::pixelDimensions ( ) const

inline

This function has been deprecated. Use pixelSize() instead.

◆ pixelSize()

const QSizeF & CTL::AbstractDetector::pixelSize ( ) const

inline

Returns the size of an individual pixel as QSizeF. The pixel size specified as width mm x height mm (or x-spacing and y-spacing, respectively).

Pixel sizes always refer to the pixel's rectangular (i.e. unskewed) shape.

◆ saturationModel()

const AbstractDataModel * CTL::AbstractDetector::saturationModel ( ) const

inline

Returns a pointer to the saturation model of this instance.

◆ saturationModelType()

AbstractDetector::SaturationModelType CTL::AbstractDetector::saturationModelType ( ) const

inline

Returns the type of the saturation model, i.e. whether it refers to extinction or intensity values.

◆ setSaturationModel() [1/2]

void CTL::AbstractDetector::setSaturationModel	(	AbstractDataModel *	model,
		AbstractDetector::SaturationModelType	type
	)

inline

Sets the saturation model to model. The argument type must specify whether the passed model refers to extinction values or intensities.

◆ setSaturationModel() [2/2]

void CTL::AbstractDetector::setSaturationModel	(	std::unique_ptr< AbstractDataModel >	model,
		SaturationModelType	type
	)

inline

Sets the saturation model to model. The argument type must specify whether the passed model refers to extinction values or intensities.

◆ setSpectralResponseModel() [1/2]

void CTL::AbstractDetector::setSpectralResponseModel ( AbstractDataModel * model )

inline

Sets the spectral response model to model. The model shall contain multiplicative factors describing the sensitivity of the detector to specific photon energies.

◆ setSpectralResponseModel() [2/2]

void CTL::AbstractDetector::setSpectralResponseModel ( std::unique_ptr< AbstractDataModel > model )

inline

Sets the spectral response model to model. The model shall contain multiplicative factors describing the sensitivity of the detector to specific photon energies.

◆ spectralResponse()

XYDataSeries CTL::AbstractDetector::spectralResponse	(	float	from,
		float	to,
		uint	nbSamples
	)		const

inline

Returns a sampled series of the spectral response model of this instance.

Returns an empty XYDataSeries if this instance does not have a spectral response model set.

◆ spectralResponseModel()

const AbstractDataModel * CTL::AbstractDetector::spectralResponseModel ( ) const

inline

Returns a pointer to the spectral response model of this instance.

◆ toVariant()

QVariant CTL::AbstractDetector::toVariant ( ) const

inlineoverridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::CylindricalDetector, CTL::GenericDetector, and CTL::FlatPanelDetector.

◆ type()

int CTL::AbstractDetector::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::GenericDetector, CTL::CylindricalDetector, and CTL::FlatPanelDetector.

◆ viewDimensions()

SingleViewData::Dimensions CTL::AbstractDetector::viewDimensions ( ) const

inline

Returns the dimensions of a single view that would be acquired by this instance. This contains number of channels (per module), number of rows (per module) and number of modules.

Friends And Related Function Documentation

◆ makeDetector()

std::unique_ptr< AbstractDetector > makeDetector ( ConstructorArguments &&... arguments )

This is similar to the more general method GenericComponent::makeComponent() with the difference that it returns a unique pointer to the AbstractDetector base type instead of GenericComponent.

See also: GenericComponent::makeComponent().

The documentation for this class was generated from the following files:

modules/src/components/abstractdetector.h
modules/src/components/abstractdetector.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Related Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ModuleLocation

Member Enumeration Documentation

◆ SaturationModelType

Constructor & Destructor Documentation

◆ AbstractDetector() [1/2]

◆ AbstractDetector() [2/2]

Member Function Documentation

◆ fromVariant()

◆ hasSaturationModel()

◆ hasSpectralResponseModel()

◆ info()

◆ inputResponse()

◆ moduleDimensions()

◆ moduleLocation()

◆ moduleLocations()

◆ nbDetectorModules()

◆ nbPixelPerModule()

◆ pixelDimensions()

◆ pixelSize()

◆ saturationModel()

◆ saturationModelType()

◆ setSaturationModel() [1/2]

◆ setSaturationModel() [2/2]

◆ setSpectralResponseModel() [1/2]

◆ setSpectralResponseModel() [2/2]

◆ spectralResponse()

◆ spectralResponseModel()

◆ toVariant()

◆ type()

◆ viewDimensions()

Friends And Related Function Documentation

◆ makeDetector()
