CTL::AbstractDataModel2DOperation Class Reference

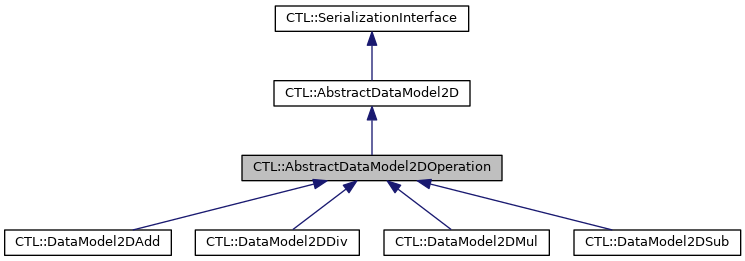

Inheritance diagram for CTL::AbstractDataModel2DOperation:

Collaboration diagram for CTL::AbstractDataModel2DOperation:

Public Member Functions
	AbstractDataModel2DOperation (std::shared_ptr< AbstractDataModel2D > lhs, std::shared_ptr< AbstractDataModel2D > rhs)
QVariant	parameter () const override
void	setParameter (const QVariant &parameter) override
Public Member Functions inherited from CTL::AbstractDataModel2D
int	type () const override
virtual float	valueAt (float x, float y) const =0
virtual AbstractDataModel2D *	clone () const =0
void	setParameter (const QString &name, const QVariant &value)
void	fromVariant (const QVariant &variant) override
QVariant	toVariant () const override
QString	name () const
void	setName (const QString &name)
Chunk2D< float >	sampleChunk (const SamplingRange &xRange, const SamplingRange &yRange, uint nbSamplesX, uint nbSamplesY) const
Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Protected Member Functions
	AbstractDataModel2DOperation (const AbstractDataModel2DOperation &)=default
	AbstractDataModel2DOperation (AbstractDataModel2DOperation &&)=default
AbstractDataModel2DOperation &	operator= (const AbstractDataModel2DOperation &)=default
AbstractDataModel2DOperation &	operator= (AbstractDataModel2DOperation &&)=default
Protected Member Functions inherited from CTL::AbstractDataModel2D
	AbstractDataModel2D (const AbstractDataModel2D &)=default
	AbstractDataModel2D (AbstractDataModel2D &&)=default
AbstractDataModel2D &	operator= (const AbstractDataModel2D &)=default
AbstractDataModel2D &	operator= (AbstractDataModel2D &&)=default
Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default
	SerializationInterface (const SerializationInterface &)=default
	SerializationInterface (SerializationInterface &&)=default
SerializationInterface &	operator= (const SerializationInterface &)=default
SerializationInterface &	operator= (SerializationInterface &&)=default

Protected Attributes
std::shared_ptr< AbstractDataModel2D >	_lhs
std::shared_ptr< AbstractDataModel2D >	_rhs

Additional Inherited Members
Public Types inherited from CTL::AbstractDataModel2D
enum	{ Type = 1000 }
Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }
Related Functions inherited from CTL::AbstractDataModel2D
std::shared_ptr< AbstractDataModel2D >	operator+ (std::shared_ptr< AbstractDataModel2D > lhs, std::shared_ptr< AbstractDataModel2D > rhs)
std::shared_ptr< AbstractDataModel2D >	operator- (std::shared_ptr< AbstractDataModel2D > lhs, std::shared_ptr< AbstractDataModel2D > rhs)
std::shared_ptr< AbstractDataModel2D >	operator * (std::shared_ptr< AbstractDataModel2D > lhs, std::shared_ptr< AbstractDataModel2D > rhs)
std::shared_ptr< AbstractDataModel2D >	operator/ (std::shared_ptr< AbstractDataModel2D > lhs, std::shared_ptr< AbstractDataModel2D > rhs)
std::shared_ptr< AbstractDataModel2D > &	operator+= (std::shared_ptr< AbstractDataModel2D > &lhs, const std::shared_ptr< AbstractDataModel2D > &rhs)
std::shared_ptr< AbstractDataModel2D > &	operator-= (std::shared_ptr< AbstractDataModel2D > &lhs, const std::shared_ptr< AbstractDataModel2D > &rhs)
std::shared_ptr< AbstractDataModel2D > &	operator *= (std::shared_ptr< AbstractDataModel2D > &lhs, const std::shared_ptr< AbstractDataModel2D > &rhs)
std::shared_ptr< AbstractDataModel2D > &	operator/= (std::shared_ptr< AbstractDataModel2D > &lhs, const std::shared_ptr< AbstractDataModel2D > &rhs)

Member Function Documentation

parameter()

QVariant CTL::AbstractDataModel2DOperation::parameter ( ) const

overridevirtual

Returns the parameters of this model as a QVariant.

Default implementation returns an empty QVariant. Override in custom classes to encode all relevant information from the class' members. The returned QVariant must contain all information to fully specify the objects state. In particular, calling setParameter(parameter()) should not change the state of an object.

Reimplemented from CTL::AbstractDataModel2D.

setParameter()

void CTL::AbstractDataModel2DOperation::setParameter ( const QVariant &  parameter )

overridevirtual

Sets the parameters of this model based on data held in parameter.

Default implementation does nothing. Override in custom classes to extract all relevant information from parameter and set class members accordingly. A call to this method (given an appropriate input parameter) should prepare the full state of the object. In particular, calling setParameter(parameter()) should not change the state of an object.

Reimplemented from CTL::AbstractDataModel2D.

---

The documentation for this class was generated from the following files:

• modules/src/models/datamodeloperations.h
• modules/src/models/datamodeloperations.cpp
