CTL::SerializationInterface Class Reference

Specify an interface for de-/serialization from/to QVariants. More...

#include <serializationinterface.h>

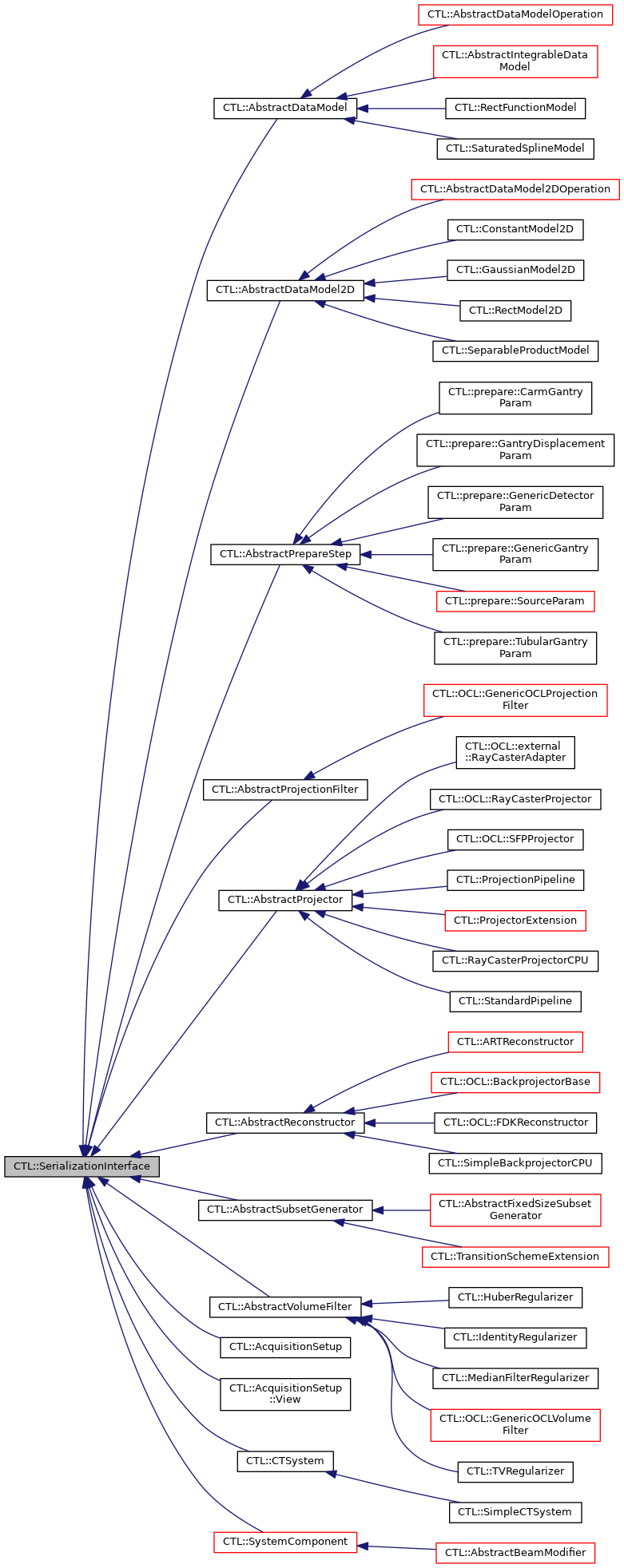

Inheritance diagram for CTL::SerializationInterface:

Public Types
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
virtual int	type () const
virtual void	fromVariant (const QVariant &variant)
virtual QVariant	toVariant () const
virtual	~SerializationInterface ()=default

Protected Member Functions
	SerializationInterface ()=default
	SerializationInterface (const SerializationInterface &)=default
	SerializationInterface (SerializationInterface &&)=default
SerializationInterface &	operator= (const SerializationInterface &)=default
SerializationInterface &	operator= (SerializationInterface &&)=default

Detailed Description

Specify an interface for de-/serialization from/to QVariants.

See also

CTL_TYPE_ID(newIndex)

Constructor & Destructor Documentation

~SerializationInterface()

CTL::SerializationInterface::~SerializationInterface ( )

virtualdefault

Default destructor. Virtual for purpose of polymorphism.

SerializationInterface() [1/3]

CTL::SerializationInterface::SerializationInterface ( )

protecteddefault

Standard default constructor.

SerializationInterface() [2/3]

CTL::SerializationInterface::SerializationInterface ( const SerializationInterface &  )

protecteddefault

Standard copy constructor.

SerializationInterface() [3/3]

CTL::SerializationInterface::SerializationInterface ( SerializationInterface &&  )

protecteddefault

Standard move constructor.

Member Function Documentation

fromVariant()

void CTL::SerializationInterface::fromVariant ( const QVariant &  variant )

inlinevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);

// assuming our class has a member "double _myMemberVariable"

_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented in CTL::AcquisitionSetup::View, CTL::AbstractReconstructor, CTL::prepare::GenericDetectorParam, CTL::AcquisitionSetup, CTL::prepare::XrayTubeParam, CTL::prepare::XrayLaserParam, CTL::ProjectorExtension, CTL::prepare::SourceParam, CTL::StandardPipeline, CTL::AbstractFixedSizeSubsetGenerator, CTL::prepare::GantryDisplacementParam, CTL::CTSystem, CTL::TransitionSchemeExtension, CTL::AbstractProjector, CTL::ProjectionPipeline, CTL::AbstractSource, CTL::prepare::GenericGantryParam, CTL::AbstractGantry, CTL::SimpleSubsetGenerator, CTL::AbstractDetector, CTL::AbstractDataModel, CTL::AbstractSubsetGenerator, CTL::SystemComponent, CTL::AbstractDataModel2D, CTL::AbstractBeamModifier, CTL::AbstractPrepareStep, CTL::prepare::CarmGantryParam, CTL::CylindricalDetector, CTL::TubularGantry, CTL::GenericGantry, CTL::GenericDetector, CTL::CarmGantry, CTL::XrayLaser, CTL::AttenuationFilter, CTL::GenericBeamModifier, CTL::GenericSource, CTL::FlatPanelDetector, CTL::prepare::TubularGantryParam, CTL::XrayTube, CTL::AbstractVolumeFilter, and CTL::AbstractProjectionFilter.

operator=() [1/2]

SerializationInterface & CTL::SerializationInterface::operator= ( const SerializationInterface &  )

protecteddefault

Standard copy assignment operator.

operator=() [2/2]

SerializationInterface & CTL::SerializationInterface::operator= ( SerializationInterface &&  )

protecteddefault

Standard move assignment operator.

toVariant()

QVariant CTL::SerializationInterface::toVariant ( ) const

inlinevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();

ret.insert("my member variable", _myMemberVariable);

return ret;

Reimplemented in CTL::AcquisitionSetup::View, CTL::AbstractReconstructor, CTL::prepare::GenericDetectorParam, CTL::AcquisitionSetup, CTL::GaussianModel1D, CTL::prepare::XrayTubeParam, CTL::prepare::XrayLaserParam, CTL::ProjectorExtension, CTL::prepare::SourceParam, CTL::SeparableProductModel, CTL::StandardPipeline, CTL::AbstractFixedSizeSubsetGenerator, CTL::ARTReconstructor, CTL::prepare::GantryDisplacementParam, CTL::CTSystem, CTL::RectModel2D, CTL::TransitionSchemeExtension, CTL::AbstractProjector, CTL::SpectralEffectsExtension, CTL::ProjectionPipeline, CTL::AbstractSource, CTL::OCL::SimpleBackprojector, CTL::ArealFocalSpotExtension, CTL::prepare::GenericGantryParam, CTL::AbstractGantry, CTL::PoissonNoiseExtension, CTL::SimpleBackprojectorCPU, CTL::SimpleSubsetGenerator, CTL::AbstractDetector, CTL::DetectorSaturationExtension, CTL::AbstractDataModel, CTL::AbstractSubsetGenerator, CTL::SystemComponent, CTL::AbstractDataModel2D, CTL::AbstractBeamModifier, CTL::GaussianModel2D, CTL::OCL::SFPBackprojector, CTL::AbstractPrepareStep, CTL::prepare::CarmGantryParam, CTL::CylindricalDetector, CTL::TubularGantry, CTL::GenericGantry, CTL::OCL::RayCasterProjector, CTL::GenericDetector, CTL::CarmGantry, CTL::XrayLaser, CTL::DynamicProjectorExtension, CTL::AttenuationFilter, CTL::GenericBeamModifier, CTL::GenericSource, CTL::FlatPanelDetector, CTL::RayCasterProjectorCPU, CTL::prepare::TubularGantryParam, CTL::XrayTube, CTL::ConstantModel2D, CTL::AbstractVolumeFilter, and CTL::AbstractProjectionFilter.

type()

int CTL::SerializationInterface::type ( ) const

inlinevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented in CTL::TASMIPSpectrumModel, CTL::HeuristicCubicSpectrumModel, CTL::KramersLawSpectrumModel, CTL::FixedXraySpectrumModel, CTL::prepare::GenericDetectorParam, CTL::GaussianModel1D, CTL::DataModel2DDiv, CTL::DataModel2DMul, CTL::prepare::XrayTubeParam, CTL::IdentityModel, CTL::HuberRegularizer, CTL::OCL::HilbertFilter, CTL::DataModel2DSub, CTL::DataModel2DAdd, CTL::AbstractReconstructor, CTL::prepare::XrayLaserParam, CTL::OCL::RamLakFilter, CTL::RectFunctionModel, CTL::DefaultSubsetGenerator, CTL::ProjectorExtension, CTL::ConstantModel, CTL::XrayLaserSpectrumModel, CTL::prepare::SourceParam, CTL::OCL::GenericOCLProjectionFilter, CTL::IntegrableDataModelSub, CTL::TVRegularizer, CTL::SeparableProductModel, CTL::OCL::ApodizationFilter, CTL::OCL::GenericOCLVolumeFilter, CTL::AbstractFixedSizeSubsetGenerator, CTL::IntegrableDataModelAdd, CTL::StepFunctionModel, CTL::StandardPipeline, CTL::prepare::GantryDisplacementParam, CTL::TransitionSchemeExtension, CTL::RectModel2D, CTL::OCL::BackprojectorBase, CTL::OCL::ParkerWeightingRev, CTL::DataModelCat, CTL::ARTReconstructor, CTL::SpectralEffectsExtension, CTL::ProjectionPipeline, CTL::XraySpectrumTabulatedModel, CTL::OrthogonalSubsetGenerator, CTL::MedianFilterRegularizer, CTL::AbstractSource, CTL::AbstractProjector, CTL::prepare::GenericGantryParam, CTL::DataModelDiv, CTL::OCL::TVRegularizer, CTL::OCL::SimpleBackprojector, CTL::AbstractGantry, CTL::ArealFocalSpotExtension, CTL::OCL::FDKReconstructor, CTL::PoissonNoiseExtension, CTL::SimpleBackprojectorCPU, CTL::SaturatedSplineModel, CTL::SimpleSubsetGenerator, CTL::DetectorSaturationExtension, CTL::AbstractSubsetGenerator, CTL::AbstractDataModel, CTL::DataModelMul, CTL::AbstractDetector, CTL::SystemComponent, CTL::AbstractDataModel2D, CTL::AbstractPrepareStep, CTL::AbstractBeamModifier, CTL::prepare::CarmGantryParam, CTL::GaussianModel2D, CTL::DataModelSub, CTL::TabulatedDataModel, CTL::OCL::SFPBackprojector, CTL::OCL::HuberRegularizer, CTL::DataModelAdd, CTL::OCL::CosineWeighting, CTL::TubularGantry, CTL::GenericGantry, CTL::CarmGantry, CTL::SaturatedLinearModel, CTL::DynamicProjectorExtension, CTL::GenericDetector, CTL::CylindricalDetector, CTL::OCL::RayCasterProjector, CTL::GenericBeamModifier, CTL::prepare::TubularGantryParam, CTL::NumericalIntegrationDecorator, CTL::IdentityRegularizer, CTL::AttenuationFilter, CTL::ConstantModel2D, CTL::FlatPanelDetector, CTL::XrayLaser, CTL::RayCasterProjectorCPU, CTL::GenericSource, CTL::AbstractVolumeFilter, CTL::AbstractProjectionFilter, and CTL::XrayTube.

---

The documentation for this class was generated from the following file:

• modules/src/io/serializationinterface.h
