The SpectralVolumeData class holds voxelized data (for a single material) along with information on its spectrally-dependent absorption properties. More...

#include <spectralvolumedata.h>

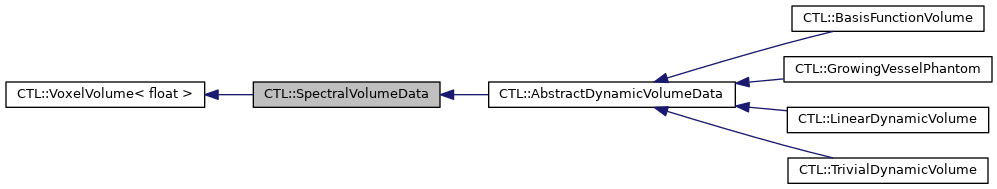

Inheritance diagram for CTL::SpectralVolumeData:

[legend]

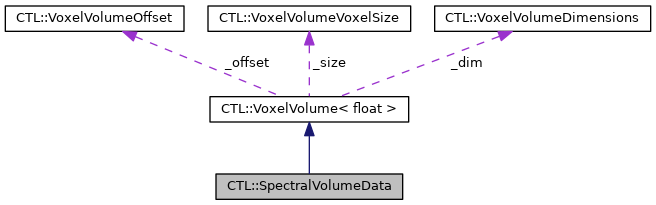

Collaboration diagram for CTL::SpectralVolumeData:

[legend]

Public Member Functions
	SpectralVolumeData (VoxelVolume< float > muValues)
	Constructs a SpectralVolumeData representing the attenuation coefficients muValues (in 1/mm). More...

	SpectralVolumeData (VoxelVolume< float > muValues, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, float referenceEnergy, const QString &materialName=QString())
	Constructs a SpectralVolumeData representing the attenuation coefficients muValues (in 1/mm) with respect to the given referenceEnergy (in keV) for a material described by absorptionModel. More...

	SpectralVolumeData (VoxelVolume< float > materialDensity, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, const QString &materialName=QString())
	Constructs a SpectralVolumeData representing the density values materialDensity (in g/cm^3) for a material described by absorptionModel. More...

virtual SpectralVolumeData *	clone () const

std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel () const

std::unique_ptr< SpectralVolumeData >	densityVolume () const

bool	hasSpectralInformation () const

bool	isDensityVolume () const

bool	isMuVolume () const

float	massAttenuationCoeff (float atEnergy) const

const QString &	materialName () const

float	meanMassAttenuationCoeff (float centerEnergy, float binWidth) const

std::unique_ptr< SpectralVolumeData >	muVolume (float referenceEnergy) const

std::unique_ptr< SpectralVolumeData >	muVolume (float centerEnergy, float binWidth) const

float	referenceEnergy () const

float	referenceMassAttenuationCoeff () const

void	replaceAbsorptionModel (AbstractIntegrableDataModel *absorptionModel)

void	replaceAbsorptionModel (std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

void	setDensity (VoxelVolume< float > density)

void	setMaterialName (const QString &name)

	SpectralVolumeData (const SpectralVolumeData &)=default

	SpectralVolumeData (SpectralVolumeData &&)=default

SpectralVolumeData &	operator= (const SpectralVolumeData &)=default

SpectralVolumeData &	operator= (SpectralVolumeData &&)=default

void	transformToAttenuationCoeff (float referenceEnergy)

void	transformToDensity ()

Public Member Functions inherited from CTL::VoxelVolume< float >
iterator	begin ()

const_iterator	begin () const

iterator	end ()

const_iterator	end () const

const_iterator	cbegin () const

const_iterator	cend () const

reverse_iterator	rbegin ()

const_reverse_iterator	rbegin () const

reverse_iterator	rend ()

const_reverse_iterator	rend () const

const_reverse_iterator	crbegin () const

const_reverse_iterator	crend () const

	VoxelVolume (const Dimensions &nbVoxels)

	VoxelVolume (const Dimensions &nbVoxels, const VoxelSize &voxelSize)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, float xSize, float ySize, float zSize)

	VoxelVolume (const Dimensions &nbVoxels, std::vector< float > data)

	VoxelVolume (const Dimensions &nbVoxels, const VoxelSize &voxelSize, std::vector< float > data)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, std::vector< float > data)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, float xSize, float ySize, float zSize, std::vector< float > data)

	VoxelVolume (const VoxelVolume &)=default

	VoxelVolume (VoxelVolume &&)=default

VoxelVolume &	operator= (const VoxelVolume &)=default

VoxelVolume &	operator= (VoxelVolume &&)=default

size_t	allocatedElements () const

const std::vector< float > &	constData () const

const std::vector< float > &	data () const

std::vector< float > &	data ()

const Dimensions &	dimensions () const

bool	hasData () const

const Dimensions &	nbVoxels () const

const Offset &	offset () const

float *	rawData ()

const float *	rawData () const

size_t	totalVoxelCount () const

const VoxelSize &	voxelSize () const

void	setData (std::vector< float > &&data)

void	setData (const std::vector< float > &data)

void	setVolumeOffset (const Offset &offset)

void	setVolumeOffset (float xOffset, float yOffset, float zOffset)

void	setVoxelSize (const VoxelSize &size)

void	setVoxelSize (float xSize, float ySize, float zSize)

void	setVoxelSize (float isotropicSize)

void	allocateMemory ()

void	allocateMemory (const float &initValue)

VoxelCoordinates	coordinates (const VoxelIndex &index) const

VoxelCoordinates	coordinates (uint x, uint y, uint z) const

VoxelCoordinates	cornerVoxel () const

VoxelIndex	index (const VoxelCoordinates &coordinates) const

VoxelIndex	index (float x_mm, float y_mm, float z_mm) const

bool	isIsotropic () const

void	fill (const float &fillValue)

void	freeMemory ()

float	max () const

float	min () const

VoxelVolume< float >	reslicedByX (bool reverse=false) const

VoxelVolume< float >	reslicedByY (bool reverse=false) const

VoxelVolume< float >	reslicedByZ (bool reverse=false) const

Chunk2D< float >	sliceX (uint slice) const

Chunk2D< float >	sliceY (uint slice) const

Chunk2D< float >	sliceZ (uint slice) const

float	smallestVoxelSize () const

VoxelCoordinates	volumeCorner () const

std::vector< float >::reference	operator() (uint x, uint y, uint z)

std::vector< float >::const_reference	operator() (uint x, uint y, uint z) const

std::vector< float >::reference	operator() (const VoxelIndex &index)

std::vector< float >::const_reference	operator() (const VoxelIndex &index) const

VoxelVolume< float > &	operator+= (const VoxelVolume< float > &other)

VoxelVolume< float > &	operator+= (const float &additiveShift)

VoxelVolume< float > &	operator-= (const VoxelVolume< float > &other)

VoxelVolume< float > &	operator-= (const float &subtractiveShift)

VoxelVolume< float > &	operator *= (const float &factor)

VoxelVolume< float > &	operator/= (const float &divisor)

VoxelVolume< float >	operator+ (const VoxelVolume< float > &other) const

VoxelVolume< float >	operator+ (const float &additiveShift) const

VoxelVolume< float >	operator- (const VoxelVolume< float > &other) const

VoxelVolume< float >	operator- (const float &subtractiveShift) const

VoxelVolume< float >	operator * (const float &factor) const

VoxelVolume< float >	operator/ (const float &divisor) const

Static Public Member Functions
static SpectralVolumeData	ball (float radius, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cube (uint nbVoxel, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cylinderX (float radius, float height, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cylinderY (float radius, float height, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cylinderZ (float radius, float height, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	fromMuVolume (VoxelVolume< float > muValues, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, float referenceEnergy=50.0f)

static SpectralVolumeData	fromHUVolume (VoxelVolume< float > HUValues, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, float referenceEnergy=50.0f)

Static Public Member Functions inherited from CTL::VoxelVolume< float >
static VoxelVolume< float >	fromChunk2DStack (const std::vector< Chunk2D< float >> &stack)

static VoxelVolume< float >	ball (float radius, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cube (uint nbVoxel, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cylinderX (float radius, float height, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cylinderY (float radius, float height, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cylinderZ (float radius, float height, float voxelSize, const float &fillValue)

Private Member Functions
void	changeReferenceEnergy (float newReferenceEnergy)

void	changeReferenceMassAttCoeff (float newReferenceMassAttCoeff, float correspondingRefEnergy)

void	transformToAttenuationCoeff (float referenceMassAttCoeff, float correspondingRefEnergy)

Private Attributes
std::shared_ptr< AbstractIntegrableDataModel >	_absorptionModel

QString	_materialName

bool	_hasNonDefaultAbsModel { false }
	True if absorption model has been set explicitely.

bool	_isMu { false }
	True if voxel data represents att. coefficents.

float	_refEnergy { -1.0f }
	Reference energy corresponding to mu values.

float	_refMassAttenuationCoeff { -1.0f }
	Reference att. coeff. corresponding to mu values.

Additional Inherited Members
Public Types inherited from CTL::VoxelVolume< float >
using	Dimensions = VoxelVolumeDimensions

using	VoxelSize = VoxelVolumeVoxelSize

using	Offset = VoxelVolumeOffset

using	iterator = VoxelIterator< typename std::vector< float >::iterator >

using	const_iterator = VoxelIterator< typename std::vector< float >::const_iterator >

using	reverse_iterator = std::reverse_iterator< iterator >

using	const_reverse_iterator = std::reverse_iterator< const_iterator >

Protected Attributes inherited from CTL::VoxelVolume< float >
Dimensions	_dim
	The dimensions of the volume.

VoxelSize	_size
	The size of individual voxels (in mm).

Offset	_offset
	The positional offset of the volume (in mm).

std::vector< float >	_data
	The internal data of the volume.

Detailed Description

The SpectralVolumeData class holds voxelized data (for a single material) along with information on its spectrally-dependent absorption properties.

This class is an extension of the VoxelVolume class (template type float) by means of enhancing it with information on its spectrally-dependent absorption properties. It represents a single material (either elemental or composite), in the way that the spectral dependency of the mass attenuation coefficient is assumed identical for all voxels (use CompositeVolume in cases where this assumption is too restrictive).

Spectral information always requires a data model describing the spectral dependency of the mass-attenuation coefficient for the material represented by this volume. Additionally, one of the following conditions must be fulfilled:

numerical values in individual voxels represent material density (in g/cm^-3), or
numerical values in individual voxels represent attenuation coefficiens (in 1/mm) and the corresponding reference energy is specified.

The two different representations can be queried explicitely with densityVolume() and muVolume(). Note that both these methods need to create copies of the data.

Availability of spectral information in the object can be checked via hasSpectralInformation(). In case the abovementioned conditions are not entirely fulfilled, the stored data is considered to represent straightforward attenuation coefficients (mu, in 1/mm) without any spectral information. Internally, such a volume object works with a constant attenuation model (i.e. mu/rho = 1.0 cm^2/g across entire energy range). This behavior is implemented only for convenience and it is recommended to use plain VoxelVolume<float> objects for such cases. Any VoxelVolume<float> object representing attenuation values (either in 1/mm (i.e. mu) or Hounsfield units) can be transformed into SpectralVolumeData using the factory methods fromMuVolume() or fromHUVolume() to complement the missing spectral information.

Constructor & Destructor Documentation

◆ SpectralVolumeData() [1/3]

CTL::SpectralVolumeData::SpectralVolumeData ( VoxelVolume< float > muValues )

Constructs a SpectralVolumeData representing the attenuation coefficients muValues (in 1/mm).

This is a convenience constructor, mainly intended to allow for implicit casts of VoxelVolume<float> to SpectralVolumeData.

Note that it is not meaningful to use this constructor with input data in Hounsfield units (HU).

No spectral information is available in the resulting object. It is strongly encouraged to use VoxelVolume<float> directly when managing non-spectral attenuation information.

◆ SpectralVolumeData() [2/3]

CTL::SpectralVolumeData::SpectralVolumeData	(	VoxelVolume< float >	muValues,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel,
		float	referenceEnergy,
		const QString &	materialName = `QString()`
	)

Constructs a SpectralVolumeData representing the attenuation coefficients muValues (in 1/mm) with respect to the given referenceEnergy (in keV) for a material described by absorptionModel.

Note that this can only be used when muValues holds values in 1/mm. To create from Hounsfield units (HU), use fromHUVolume().

Keeps internally stored data in attenuation domain. The factory method fromMuVolume() has similar function, but transforms data to density domain.

◆ SpectralVolumeData() [3/3]

CTL::SpectralVolumeData::SpectralVolumeData	(	VoxelVolume< float >	materialDensity,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel,
		const QString &	materialName = `QString()`
	)

Constructs a SpectralVolumeData representing the density values materialDensity (in g/cm^3) for a material described by absorptionModel.

Member Function Documentation

◆ absorptionModel()

std::shared_ptr< AbstractIntegrableDataModel > CTL::SpectralVolumeData::absorptionModel ( ) const

Returns the absorption model of this instance.

The absorption model represents a single material (either elemental or composite) and contains the spectral dependency of its mass attenuation coefficients (in cm^2/g).

◆ ball()

SpectralVolumeData CTL::SpectralVolumeData::ball	(	float	radius,
		float	voxelSize,
		float	density,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel
	)

static

Creates a SpectralVolumeData object that represents a voxelized ball with radius radius, isometric voxel size voxelSize (both in mm) and filled (homogeneuosly) with density value density (in g/cm^3). The material properties (i.e. spectrally-dependent mass attenuation coefficients) are specified by absorptionModel. The voxels surrounding the ball are filled with density 0.0 g/cm^3.

◆ cube()

SpectralVolumeData CTL::SpectralVolumeData::cube	(	uint	nbVoxel,
		float	voxelSize,
		float	density,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel
	)

static

Constructs a cubic SpectralVolumeData with nbVoxel x nbVoxel x nbVoxel voxels (voxel dimension: voxelSize x voxelSize x voxelSize), filled (homogeneuosly) with density value density (in g/cm^3). The material properties (i.e. spectrally-dependent mass attenuation coefficients) are specified by absorptionModel.

◆ cylinderX()

SpectralVolumeData CTL::SpectralVolumeData::cylinderX	(	float	radius,
		float	height,
		float	voxelSize,
		float	density,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel
	)

static

Creates a SpectralVolumeData object that represents a voxelized cylinder with radius radius and height height (both in mm) that is aligned with the x-axis. It has isometric voxel size voxelSize (in mm) and is filled (homogeneuosly) with density value density (in g/cm^3). The material properties (i.e. spectrally-dependent mass attenuation coefficients) are specified by absorptionModel. The voxels surrounding the cylinder are filled with density 0.0 g/cm^3.

The resulting volume will have \( \left\lceil 2\cdot radius/voxelSize\right\rceil \) voxels in y- and z-dimension and \( \left\lceil height/voxelSize\right\rceil \) in x-direction.

◆ cylinderY()

SpectralVolumeData CTL::SpectralVolumeData::cylinderY	(	float	radius,
		float	height,
		float	voxelSize,
		float	density,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel
	)

static

Creates a SpectralVolumeData object that represents a voxelized cylinder with radius radius and height height (both in mm) that is aligned with the y-axis. It has isometric voxel size voxelSize (in mm) and is filled (homogeneuosly) with density value density (in g/cm^3). The material properties (i.e. spectrally-dependent mass attenuation coefficients) are specified by absorptionModel. The voxels surrounding the cylinder are filled with density 0.0 g/cm^3.

The resulting volume will have \( \left\lceil 2\cdot radius/voxelSize\right\rceil \) voxels in x- and z-dimension and \( \left\lceil height/voxelSize\right\rceil \) in y-direction.

◆ cylinderZ()

SpectralVolumeData CTL::SpectralVolumeData::cylinderZ	(	float	radius,
		float	height,
		float	voxelSize,
		float	density,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel
	)

static

Creates a SpectralVolumeData object that represents a voxelized cylinder with radius radius and height height (both in mm) that is aligned with the z-axis. It has isometric voxel size voxelSize (in mm) and is filled (homogeneuosly) with density value density (in g/cm^3). The material properties (i.e. spectrally-dependent mass attenuation coefficients) are specified by absorptionModel. The voxels surrounding the cylinder are filled with density 0.0 g/cm^3.

The resulting volume will have \( \left\lceil 2\cdot radius/voxelSize\right\rceil \) voxels in x- and y-dimension and \( \left\lceil height/voxelSize\right\rceil \) in z-direction.

◆ densityVolume()

std::unique_ptr< SpectralVolumeData > CTL::SpectralVolumeData::densityVolume ( ) const

Returns the density representation of this instance.

Note that this creates a copy of the data. In case this instance does already contain density data (check this via isDensityVolume()) it is discouraged to call this method because it would only create an unnecessary copy.

◆ fromHUVolume()

SpectralVolumeData CTL::SpectralVolumeData::fromHUVolume	(	VoxelVolume< float >	HUValues,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel,
		float	referenceEnergy = `50.0f`
	)

static

Creates a SpectralVolumeData object from the attenuation values given by HUValues (in Hounsfield units) representing the material specified by its spectrally-dependent mass attenuation coefficients in absorptionModel. For meaningful results, you need to also specify the reference energy, to which the Hounsfield units correspond, by referenceEnergy (in keV).

Generates the density representation of the data.

// Starting point: voxel data in Hounsfield units (eg. loaded patient data)
// here: make a cube phantom (100^3 voxels, size 1 mm^3) filled with value 100 HU
auto volumeHU = VoxelVolume<float>(100, 100, 100, 1.0f, 1.0f, 1.0f);
volumeHU.fill(100.0f); // fill with value 100 HU
// Now: create spectral volume from HU data (soft tissue data, reference energy of 62 keV)
auto volume = SpectralVolumeData::fromHUVolume(volumeHU,   /* std::move(volumeHU), if no longer required. */
                                               database::attenuationModel(database::Composite::Tissue_Soft),
                                               62.0f);
qInfo() << volume.max(); // output: 1.10614 (g/cm^3)  <-- density representation

◆ fromMuVolume()

SpectralVolumeData CTL::SpectralVolumeData::fromMuVolume	(	VoxelVolume< float >	muValues,
		std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel,
		float	referenceEnergy = `50.0f`
	)

static

Creates a SpectralVolumeData object from the attenuation values given by muValues (in 1 / mm) corresponding to the reference energy referenceEnergy of the material specified by its spectrally-dependent mass attenuation coefficients in absorptionModel.

Generates the density representation of the data. To prevent transformation into density domain (e.g. if follow-up processing needs to be done in attenuation domain anyway), use the constructor with the same input instead.

// Starting point: voxel data with attenuation coefficients in 1/mm
// here: make a cube phantom (100^3 voxels, size 1 mm^3) representing cortical bone
auto volumeMu = VoxelVolume<float>(100, 100, 100, 1.0f, 1.0f, 1.0f);
volumeMu.fill(0.056f); // fill with value 0.056/mm <-- approx. attenuation coeff. of bone @ 65 keV
// create spectral volume from mu (i.e. att. coeff.) data (cortical bone data, reference energy of 65 keV)
auto volume = SpectralVolumeData::fromMuVolume(volumeMu,  /* std::move(volumeMu), if no longer required. */
                                               database::attenuationModel(database::Composite::Bone_Cortical),
                                               65.0f);
qInfo() << volume.max(); // output: 1.91896 (g/cm^3) <-- density representation

See also: muVolume()

◆ hasSpectralInformation()

bool CTL::SpectralVolumeData::hasSpectralInformation ( ) const

Returns true if this instance has full spectral information. This means the following conditions are fulfilled:

a data model describing the spectral dependency of the mass-attenuation coefficient for the material represented by this volume has been set
one of the following conditions is fulfilled:
- numerical values in individual voxels represent material density (in g/cm^3), or
- numerical values in individual voxels represent attenuation coefficiens (in 1/mm) and the corresponding reference energy is specified.

◆ isDensityVolume()

bool CTL::SpectralVolumeData::isDensityVolume ( ) const

Returns true if the data stored by this instance are density values (in g/cm^3).

auto volume = SpectralVolumeData(VoxelVolume<float>::cube(100, 1.0f, 0.02f),
                                 database::attenuationModel(database::Composite::Water),
                                 65.0f);
qInfo() << volume.isDensityVolume(); // output: false  <-- constructor keeps attenuation domain
// This time, we use the factory method.
auto volume2 = SpectralVolumeData::fromMuVolume(VoxelVolume<float>::cube(100, 1.0f, 0.02f),
                                                database::attenuationModel(database::Composite::Water),
                                                65.0f);
qInfo() << volume2.isDensityVolume(); // output: true  <-- fromMuVolume() transforms to density

◆ isMuVolume()

bool CTL::SpectralVolumeData::isMuVolume ( ) const

Returns true if the data stored by this instance are attenuation values (in 1/mm).

auto volume = SpectralVolumeData(VoxelVolume<float>::cube(100, 1.0f, 0.02f),
                                 database::attenuationModel(database::Composite::Water),
                                 65.0f);
qInfo() << volume.isDensityVolume(); // output: false  <-- constructor keeps attenuation domain
// This time, we use the factory method.
auto volume2 = SpectralVolumeData::fromMuVolume(VoxelVolume<float>::cube(100, 1.0f, 0.02f),
                                                database::attenuationModel(database::Composite::Water),
                                                65.0f);
qInfo() << volume2.isDensityVolume(); // output: true  <-- fromMuVolume() transforms to density

◆ massAttenuationCoeff()

float CTL::SpectralVolumeData::massAttenuationCoeff ( float atEnergy ) const

Returns the mass attenuation coefficient (in cm^2/g) of the material described by this instance for energy atEnergy (in keV).

Same as absorptionModel()->valueAt(atEnergy).

◆ materialName()

const QString & CTL::SpectralVolumeData::materialName ( ) const

Returns the name of the material described by this instance.

◆ meanMassAttenuationCoeff()

float CTL::SpectralVolumeData::meanMassAttenuationCoeff	(	float	centerEnergy,
		float	binWidth
	)		const

Returns the mass attenuation coefficient of the material described by this instance averaged over the energy bin [centerEnergy - binWidth / 2, centerEnergy + binWidth / 2].

Same as absorptionModel()->meanValue(centerEnergy, binWidth).

◆ muVolume() [1/2]

std::unique_ptr< SpectralVolumeData > CTL::SpectralVolumeData::muVolume ( float referenceEnergy ) const

Returns the attenuation coefficient (with respect to the reference energy referenceEnergy) representation of this instance.

Note that this creates a copy of the data. The density values are transformed to attenuation coefficients with respect to the given reference energy referenceEnergy. In case this instance does already contain attenuation coefficient data, the values are re-referenced to referenceEnergy.

If this instance contains attenuation coefficient data and referenceEnergy == referenceEnergy(), it is discouraged to call this method because it would only create an unnecessary copy.

// Starting point: voxel data with attenuation coefficients in 1/mm
// here: make a cube phantom (100^3 voxels, size 1 mm^3) filled with value 0.02/mm (water)
VoxelVolume<float> muValues(100, 100, 100, 1.0f, 1.0f, 1.0f);
muValues.fill(0.02f); // 0.02 / mm is approx. attenuation of water for 60 keV
// Now: create spectral data by complementing \c muValues with the attenuation model of water
auto volume = SpectralVolumeData(muValues,              /* std::move(muValues), if no longer required. */
                                 database::attenuationModel(database::Composite::Water),
                                 60.0f);
qInfo() << volume.max();                                // output: 0.02 (our input, still in attenuation domain)
qInfo() << volume.referenceEnergy();                    // output: 60
qInfo() << volume.referenceMassAttenuationCoeff();      // output: 0.2059
// auto otherVolume = volume.muVolume(60.0f);           // meaningless copy, result identical to 'volume'
auto otherVolume = volume.muVolume(45.0f);              // changes reference energy from 60 keV to 45 keV
qInfo() << otherVolume.max();                           // output: 0.0240505 (rescaled to new reference energy)
qInfo() << otherVolume.referenceEnergy();               // output: 45
qInfo() << otherVolume.referenceMassAttenuationCoeff(); // output: 0.2476

◆ muVolume() [2/2]

std::unique_ptr< SpectralVolumeData > CTL::SpectralVolumeData::muVolume	(	float	centerEnergy,
		float	binWidth
	)		const

Returns the attenuation coefficient with respect to an average mass attenuation coefficient in the energy interval [centerEnergy - binWidth / 2, centerEnergy + binWidth / 2].

Note that this creates a copy of the data.

See also: muVolume(float), meanMassAttenuationCoeff().

◆ referenceEnergy()

float CTL::SpectralVolumeData::referenceEnergy ( ) const

Returns the reference energy corresponding to the attenuation values managed by this instance. Does not contain meaningful information in case this instance manages density values.

◆ referenceMassAttenuationCoeff()

float CTL::SpectralVolumeData::referenceMassAttenuationCoeff ( ) const

Returns the reference mass attenuation coefficient corresponding to the attenuation values managed by this instance. Does not contain meaningful information in case this instance manages density values.

◆ replaceAbsorptionModel() [1/2]

void CTL::SpectralVolumeData::replaceAbsorptionModel ( AbstractIntegrableDataModel * absorptionModel )

Replaces the absorption model in this instance by absorptionModel (must not be nullptr).

Note that this is only allowed for objects that already have spectral information available and throws an std::runtime_error otherwise.

◆ replaceAbsorptionModel() [2/2]

void CTL::SpectralVolumeData::replaceAbsorptionModel ( std::shared_ptr< AbstractIntegrableDataModel > absorptionModel )

Replaces the absorption model in this instance by absorptionModel (must not be nullptr).

Note that this is only allowed for objects that already have spectral information available and throws an std::runtime_error otherwise.

◆ setDensity()

void CTL::SpectralVolumeData::setDensity ( VoxelVolume< float > density )

Replaces the voxel data in this instance by the density values given by density (in g/cm^3).

Note that this is only allowed for objects that have a non-defaulted absorbtion model set and throws an std::runtime_error otherwise.

◆ setMaterialName()

void CTL::SpectralVolumeData::setMaterialName ( const QString & name )

Sets the name of the material described by this instance to name.

The documentation for this class was generated from the following files:

modules/src/img/spectralvolumedata.h
modules/src/img/spectralvolumedata.cpp

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SpectralVolumeData() [1/3]

◆ SpectralVolumeData() [2/3]

◆ SpectralVolumeData() [3/3]

Member Function Documentation

◆ absorptionModel()

◆ ball()

◆ cube()

◆ cylinderX()

◆ cylinderY()

◆ cylinderZ()

◆ densityVolume()

◆ fromHUVolume()

◆ fromMuVolume()

◆ hasSpectralInformation()

◆ isDensityVolume()

◆ isMuVolume()

◆ massAttenuationCoeff()

◆ materialName()

◆ meanMassAttenuationCoeff()

◆ muVolume() [1/2]

◆ muVolume() [2/2]

◆ referenceEnergy()

◆ referenceMassAttenuationCoeff()

◆ replaceAbsorptionModel() [1/2]

◆ replaceAbsorptionModel() [2/2]

◆ setDensity()

◆ setMaterialName()
