CTL::prepare::SourceParam Class Reference

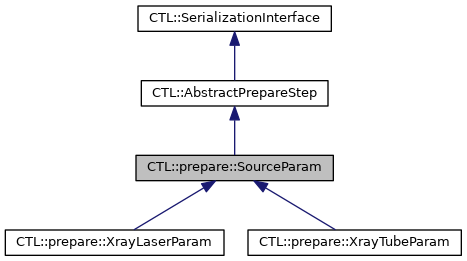

Inheritance diagram for CTL::prepare::SourceParam:

Collaboration diagram for CTL::prepare::SourceParam:

Public Types
enum	{ Type = 300 }
Public Types inherited from CTL::AbstractPrepareStep
enum	{ Type = 0 }
Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override
void	setEnergyRangeRestriction (const Range< float > &range)
void	setFluxModifier (double modifier)
void	setFocalSpotSize (const QSizeF &size)
void	setFocalSpotPosition (const Vector3x1 &position)
void	prepare (SimpleCTSystem &system) const override
bool	isApplicableTo (const CTSystem &system) const override
void	fromVariant (const QVariant &variant) override
QVariant	toVariant () const override
Public Member Functions inherited from CTL::AbstractPrepareStep
	~AbstractPrepareStep () override=default
Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static std::shared_ptr< SourceParam >	forEnergyRangeRestriction (const Range< float > &range)
static std::shared_ptr< SourceParam >	forFluxModifier (double modifier)
static std::shared_ptr< SourceParam >	forFocalSpotSize (const QSizeF &size)
static std::shared_ptr< SourceParam >	forFocalSpotPosition (const Vector3x1 &position)

Protected Attributes
QPair< bool, double >	_newFluxModifier = {false, 0.0}
QPair< bool, QSizeF >	_newFocalSpotSize = {false, QSizeF(0.0, 0.0)}
QPair< bool, Vector3x1 >	_newSpotPosition = {false, Vector3x1(0.0)}
QPair< bool, Range< float > >	_energyRangeRestr = {false, { 0.0f, 0.0f } }

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Protected Member Functions inherited from CTL::AbstractPrepareStep
	AbstractPrepareStep (const AbstractPrepareStep &)=default
	AbstractPrepareStep (AbstractPrepareStep &&)=default
AbstractPrepareStep &	operator= (const AbstractPrepareStep &)=default
AbstractPrepareStep &	operator= (AbstractPrepareStep &&)=default
Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default
	SerializationInterface (const SerializationInterface &)=default
	SerializationInterface (SerializationInterface &&)=default
SerializationInterface &	operator= (const SerializationInterface &)=default
SerializationInterface &	operator= (SerializationInterface &&)=default

Member Function Documentation

fromVariant()

void CTL::prepare::SourceParam::fromVariant ( const QVariant &  variant )

overridevirtual

Reads all member variables from the QVariant variant.

Reimplemented from CTL::AbstractPrepareStep.

Reimplemented in CTL::prepare::XrayTubeParam, and CTL::prepare::XrayLaserParam.

isApplicableTo()

bool CTL::prepare::SourceParam::isApplicableTo ( const CTSystem &  system ) const

overridevirtual

Returns true if this prepare step can be applied to system.

Typically, this method will check whether system contains all components that shall be prepared by this instance.

Implements CTL::AbstractPrepareStep.

Reimplemented in CTL::prepare::XrayTubeParam, and CTL::prepare::XrayLaserParam.

prepare()

void CTL::prepare::SourceParam::prepare ( SimpleCTSystem &  system ) const

overridevirtual

This method performs the actual preparation of the state of system. This usually consists of setting member variables of certain components in system to defined values.

Note that this does not necessarily have to be limited to changes to a single component within the system.

Implements CTL::AbstractPrepareStep.

Reimplemented in CTL::prepare::XrayTubeParam, and CTL::prepare::XrayLaserParam.

toVariant()

QVariant CTL::prepare::SourceParam::toVariant ( ) const

overridevirtual

Stores all member variables in a QVariant.

Reimplemented from CTL::AbstractPrepareStep.

Reimplemented in CTL::prepare::XrayTubeParam, and CTL::prepare::XrayLaserParam.

type()

int CTL::prepare::SourceParam::type ( ) const

inlineoverridevirtual

Returns the type id of the prepare step.

List of all default types:

Type	Type-ID
AbstractPrepareStep::Type	0
GenericDetectorParam::Type	101
GenericGantryParam::Type	201
CarmGantryParam::Type	210
TubularGantryParam::Type	220
GantryDisplacementParam::Type	230
SourceParam::Type	300
XrayLaserParam::Type	310
XrayTubeParam::Type	320

Reimplemented from CTL::AbstractPrepareStep.

Reimplemented in CTL::prepare::XrayTubeParam, and CTL::prepare::XrayLaserParam.

---

The documentation for this class was generated from the following files:

• modules/src/acquisition/preparesteps.h
• modules/src/acquisition/preparesteps.cpp
