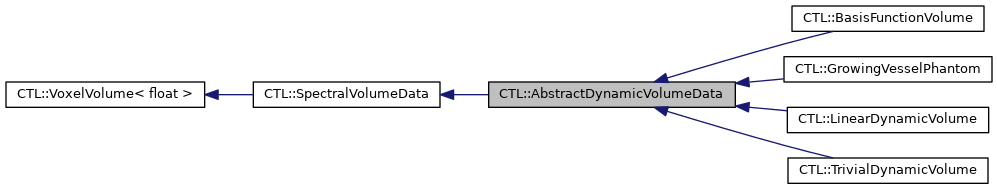

Inheritance diagram for CTL::AbstractDynamicVolumeData:

[legend]

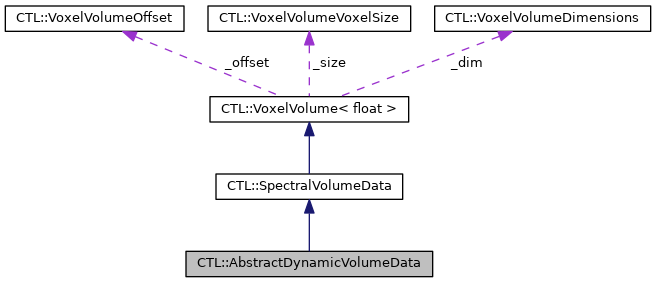

Collaboration diagram for CTL::AbstractDynamicVolumeData:

[legend]

Public Member Functions
SpectralVolumeData *	clone () const override=0

	AbstractDynamicVolumeData (const SpectralVolumeData &other)

virtual XYDataSeries	timeCurve (uint x, uint y, uint z, const std::vector< float > &timePoints)

void	setTime (double seconds)

double	time () const

XYDataSeries	timeCurve (uint x, uint y, uint z, float tStart, float tEnd, uint nbSamples)

XYDataSeries	timeCurve (uint x, uint y, uint z, SamplingRange timeRange, uint nbSamples)

Public Member Functions inherited from CTL::SpectralVolumeData
	SpectralVolumeData (VoxelVolume< float > muValues)
	Constructs a SpectralVolumeData representing the attenuation coefficients muValues (in 1/mm). More...

	SpectralVolumeData (VoxelVolume< float > muValues, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, float referenceEnergy, const QString &materialName=QString())
	Constructs a SpectralVolumeData representing the attenuation coefficients muValues (in 1/mm) with respect to the given referenceEnergy (in keV) for a material described by absorptionModel. More...

	SpectralVolumeData (VoxelVolume< float > materialDensity, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, const QString &materialName=QString())
	Constructs a SpectralVolumeData representing the density values materialDensity (in g/cm^3) for a material described by absorptionModel. More...

std::shared_ptr< AbstractIntegrableDataModel >	absorptionModel () const

std::unique_ptr< SpectralVolumeData >	densityVolume () const

bool	hasSpectralInformation () const

bool	isDensityVolume () const

bool	isMuVolume () const

float	massAttenuationCoeff (float atEnergy) const

const QString &	materialName () const

float	meanMassAttenuationCoeff (float centerEnergy, float binWidth) const

std::unique_ptr< SpectralVolumeData >	muVolume (float referenceEnergy) const

std::unique_ptr< SpectralVolumeData >	muVolume (float centerEnergy, float binWidth) const

float	referenceEnergy () const

float	referenceMassAttenuationCoeff () const

void	replaceAbsorptionModel (AbstractIntegrableDataModel *absorptionModel)

void	replaceAbsorptionModel (std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

void	setDensity (VoxelVolume< float > density)

void	setMaterialName (const QString &name)

	SpectralVolumeData (const SpectralVolumeData &)=default

	SpectralVolumeData (SpectralVolumeData &&)=default

SpectralVolumeData &	operator= (const SpectralVolumeData &)=default

SpectralVolumeData &	operator= (SpectralVolumeData &&)=default

void	transformToAttenuationCoeff (float referenceEnergy)

void	transformToDensity ()

Public Member Functions inherited from CTL::VoxelVolume< float >
iterator	begin ()

const_iterator	begin () const

iterator	end ()

const_iterator	end () const

const_iterator	cbegin () const

const_iterator	cend () const

reverse_iterator	rbegin ()

const_reverse_iterator	rbegin () const

reverse_iterator	rend ()

const_reverse_iterator	rend () const

const_reverse_iterator	crbegin () const

const_reverse_iterator	crend () const

	VoxelVolume (const Dimensions &nbVoxels)

	VoxelVolume (const Dimensions &nbVoxels, const VoxelSize &voxelSize)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, float xSize, float ySize, float zSize)

	VoxelVolume (const Dimensions &nbVoxels, std::vector< float > data)

	VoxelVolume (const Dimensions &nbVoxels, const VoxelSize &voxelSize, std::vector< float > data)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, std::vector< float > data)

	VoxelVolume (uint nbVoxelX, uint nbVoxelY, uint nbVoxelZ, float xSize, float ySize, float zSize, std::vector< float > data)

	VoxelVolume (const VoxelVolume &)=default

	VoxelVolume (VoxelVolume &&)=default

VoxelVolume &	operator= (const VoxelVolume &)=default

VoxelVolume &	operator= (VoxelVolume &&)=default

size_t	allocatedElements () const

const std::vector< float > &	constData () const

const std::vector< float > &	data () const

std::vector< float > &	data ()

const Dimensions &	dimensions () const

bool	hasData () const

const Dimensions &	nbVoxels () const

const Offset &	offset () const

float *	rawData ()

const float *	rawData () const

size_t	totalVoxelCount () const

const VoxelSize &	voxelSize () const

void	setData (std::vector< float > &&data)

void	setData (const std::vector< float > &data)

void	setVolumeOffset (const Offset &offset)

void	setVolumeOffset (float xOffset, float yOffset, float zOffset)

void	setVoxelSize (const VoxelSize &size)

void	setVoxelSize (float xSize, float ySize, float zSize)

void	setVoxelSize (float isotropicSize)

void	allocateMemory ()

void	allocateMemory (const float &initValue)

VoxelCoordinates	coordinates (const VoxelIndex &index) const

VoxelCoordinates	coordinates (uint x, uint y, uint z) const

VoxelCoordinates	cornerVoxel () const

VoxelIndex	index (const VoxelCoordinates &coordinates) const

VoxelIndex	index (float x_mm, float y_mm, float z_mm) const

bool	isIsotropic () const

void	fill (const float &fillValue)

void	freeMemory ()

float	max () const

float	min () const

VoxelVolume< float >	reslicedByX (bool reverse=false) const

VoxelVolume< float >	reslicedByY (bool reverse=false) const

VoxelVolume< float >	reslicedByZ (bool reverse=false) const

Chunk2D< float >	sliceX (uint slice) const

Chunk2D< float >	sliceY (uint slice) const

Chunk2D< float >	sliceZ (uint slice) const

float	smallestVoxelSize () const

VoxelCoordinates	volumeCorner () const

std::vector< float >::reference	operator() (uint x, uint y, uint z)

std::vector< float >::const_reference	operator() (uint x, uint y, uint z) const

std::vector< float >::reference	operator() (const VoxelIndex &index)

std::vector< float >::const_reference	operator() (const VoxelIndex &index) const

VoxelVolume< float > &	operator+= (const VoxelVolume< float > &other)

VoxelVolume< float > &	operator+= (const float &additiveShift)

VoxelVolume< float > &	operator-= (const VoxelVolume< float > &other)

VoxelVolume< float > &	operator-= (const float &subtractiveShift)

VoxelVolume< float > &	operator *= (const float &factor)

VoxelVolume< float > &	operator/= (const float &divisor)

VoxelVolume< float >	operator+ (const VoxelVolume< float > &other) const

VoxelVolume< float >	operator+ (const float &additiveShift) const

VoxelVolume< float >	operator- (const VoxelVolume< float > &other) const

VoxelVolume< float >	operator- (const float &subtractiveShift) const

VoxelVolume< float >	operator * (const float &factor) const

VoxelVolume< float >	operator/ (const float &divisor) const

Protected Member Functions
virtual void	updateVolume ()=0

	AbstractDynamicVolumeData (const AbstractDynamicVolumeData &)=default

	AbstractDynamicVolumeData (AbstractDynamicVolumeData &&)=default

AbstractDynamicVolumeData &	operator= (const AbstractDynamicVolumeData &)=default

AbstractDynamicVolumeData &	operator= (AbstractDynamicVolumeData &&)=default

Private Attributes
double	_time = 0.0
	current time in milliseconds

Additional Inherited Members
Public Types inherited from CTL::VoxelVolume< float >
using	Dimensions = VoxelVolumeDimensions

using	VoxelSize = VoxelVolumeVoxelSize

using	Offset = VoxelVolumeOffset

using	iterator = VoxelIterator< typename std::vector< float >::iterator >

using	const_iterator = VoxelIterator< typename std::vector< float >::const_iterator >

using	reverse_iterator = std::reverse_iterator< iterator >

using	const_reverse_iterator = std::reverse_iterator< const_iterator >

Static Public Member Functions inherited from CTL::SpectralVolumeData
static SpectralVolumeData	ball (float radius, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cube (uint nbVoxel, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cylinderX (float radius, float height, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cylinderY (float radius, float height, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	cylinderZ (float radius, float height, float voxelSize, float density, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel)

static SpectralVolumeData	fromMuVolume (VoxelVolume< float > muValues, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, float referenceEnergy=50.0f)

static SpectralVolumeData	fromHUVolume (VoxelVolume< float > HUValues, std::shared_ptr< AbstractIntegrableDataModel > absorptionModel, float referenceEnergy=50.0f)

Static Public Member Functions inherited from CTL::VoxelVolume< float >
static VoxelVolume< float >	fromChunk2DStack (const std::vector< Chunk2D< float >> &stack)

static VoxelVolume< float >	ball (float radius, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cube (uint nbVoxel, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cylinderX (float radius, float height, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cylinderY (float radius, float height, float voxelSize, const float &fillValue)

static VoxelVolume< float >	cylinderZ (float radius, float height, float voxelSize, const float &fillValue)

Protected Attributes inherited from CTL::VoxelVolume< float >
Dimensions	_dim
	The dimensions of the volume.

VoxelSize	_size
	The size of individual voxels (in mm).

Offset	_offset
	The positional offset of the volume (in mm).

std::vector< float >	_data
	The internal data of the volume.

Constructor & Destructor Documentation

◆ AbstractDynamicVolumeData()

CTL::AbstractDynamicVolumeData::AbstractDynamicVolumeData ( const SpectralVolumeData & other )

inline

Initializes the dynamic volume using a static VoxelVolume

Member Function Documentation

◆ timeCurve() [1/3]

XYDataSeries CTL::AbstractDynamicVolumeData::timeCurve	(	uint	x,
		uint	y,
		uint	z,
		const std::vector< float > &	timePoints
	)

inlinevirtual

Returns the data series containing the data of voxel (x, y, z) at the time points specified in timePoints (to be specified in ms).

Note that this is a highly inefficient implementation that requires updating the entire volume for each requested time point using updateVolume(). Make sure to override this method in sub- classes to use more efficient ways of evaluating values of the requested voxel alone, if possible.

Reimplemented in CTL::LinearDynamicVolume.

◆ timeCurve() [2/3]

XYDataSeries CTL::AbstractDynamicVolumeData::timeCurve	(	uint	x,
		uint	y,
		uint	z,
		float	tStart,
		float	tEnd,
		uint	nbSamples
	)

inline

Convenience alternative of timeCurve(uint, uint, uint, const std::vector<float>&).

Returns the time series sampled at nbSamples equally-spaced positions within the interval [tStart, tEnd] (in ms).

◆ timeCurve() [3/3]

XYDataSeries CTL::AbstractDynamicVolumeData::timeCurve	(	uint	x,
		uint	y,
		uint	z,
		SamplingRange	timeRange,
		uint	nbSamples
	)

inline

Convenience alternative of timeCurve(uint, uint, uint, const std::vector<float>&).

Returns the time series sampled at nbSamples equally-spaced positions within the interval specified by timeRange.

Same as:

timeCurve(x, y, z, timeRange.linspace(nbSamples));

The documentation for this class was generated from the following file:

modules/src/img/abstractdynamicvolumedata.h
