CTL::AbstractIntegrableDataModelOperation Class Reference

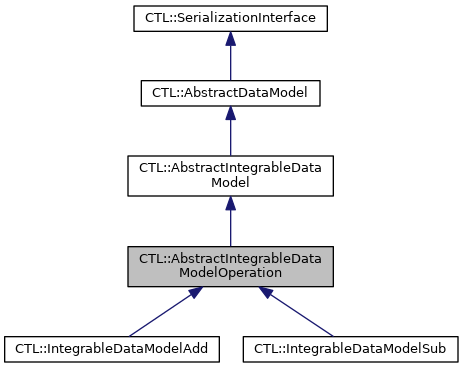

Inheritance diagram for CTL::AbstractIntegrableDataModelOperation:

Collaboration diagram for CTL::AbstractIntegrableDataModelOperation:

Public Member Functions
	AbstractIntegrableDataModelOperation (std::shared_ptr< AbstractIntegrableDataModel > lhs, std::shared_ptr< AbstractIntegrableDataModel > rhs)
QVariant	parameter () const override
void	setParameter (const QVariant &parameter) override
Public Member Functions inherited from CTL::AbstractIntegrableDataModel
virtual float	binIntegral (float position, float binWidth) const =0
	Returns the integral over model values in the interval [position - 0.5 * binWidth, position + 0.5 * binWidth]. More...
virtual AbstractIntegrableDataModel *	clone () const override=0
float	meanValue (float position, float binWidth) const
Public Member Functions inherited from CTL::AbstractDataModel
int	type () const override
virtual float	valueAt (float position) const =0
void	fromVariant (const QVariant &variant) override
QVariant	toVariant () const override
bool	isIntegrable () const
void	setName (const QString &name)
const QString &	name () const
Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Protected Member Functions
	AbstractIntegrableDataModelOperation (const AbstractIntegrableDataModelOperation &)=default
	AbstractIntegrableDataModelOperation (AbstractIntegrableDataModelOperation &&)=default
AbstractIntegrableDataModelOperation &	operator= (const AbstractIntegrableDataModelOperation &)=default
AbstractIntegrableDataModelOperation &	operator= (AbstractIntegrableDataModelOperation &&)=default
Protected Member Functions inherited from CTL::AbstractIntegrableDataModel
	AbstractIntegrableDataModel (const AbstractIntegrableDataModel &)=default
	AbstractIntegrableDataModel (AbstractIntegrableDataModel &&)=default
AbstractIntegrableDataModel &	operator= (const AbstractIntegrableDataModel &)=default
AbstractIntegrableDataModel &	operator= (AbstractIntegrableDataModel &&)=default
Protected Member Functions inherited from CTL::AbstractDataModel
	AbstractDataModel (const AbstractDataModel &)=default
	AbstractDataModel (AbstractDataModel &&)=default
AbstractDataModel &	operator= (const AbstractDataModel &)=default
AbstractDataModel &	operator= (AbstractDataModel &&)=default
Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default
	SerializationInterface (const SerializationInterface &)=default
	SerializationInterface (SerializationInterface &&)=default
SerializationInterface &	operator= (const SerializationInterface &)=default
SerializationInterface &	operator= (SerializationInterface &&)=default

Protected Attributes
std::shared_ptr< AbstractIntegrableDataModel >	_lhs
std::shared_ptr< AbstractIntegrableDataModel >	_rhs

Additional Inherited Members
Public Types inherited from CTL::AbstractDataModel
enum	{ Type = 0 }
Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }
Related Functions inherited from CTL::AbstractDataModel
	DataModelPtr
	Template alias name for CopyableUniquePtr<ModelType> to a suitable ModelType.
	AbstractDataModelPtr
	Alias name for DataModelPtr<AbstractDataModel>. More...
std::unique_ptr< ModelType >	makeDataModel (ConstructorArguments &&... arguments)
using DataModelPtr	CopyableUniquePtr
	Alias name for CopyableUniquePtr<ModelType> to a suitable ModelType.

Member Function Documentation

parameter()

QVariant CTL::AbstractIntegrableDataModelOperation::parameter ( ) const

overridevirtual

Returns the parameters of this instance as a QVariant.

Re-implement this method within your sub-class such that it encapsulates all necessary information into a QVariant.

Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::parameter().toMap();

ret.insert("my new parameter", _myNewParameter);

return ret;

Reimplemented from CTL::AbstractDataModel.

setParameter()

void CTL::AbstractIntegrableDataModelOperation::setParameter ( const QVariant &  parameter )

overridevirtual

Passes parameter to this instance.

Encapsulate all necessary information into the passed QVariant and re-implement this method within your sub-class to parse it into your required format.

Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

DirectBaseClass::setParameter(parameter);

// assuming our class has a parameter member "double _myNewParameter"

_myNewParameter = parameter.toMap().value("my new parameter").toDouble();

Reimplemented from CTL::AbstractDataModel.

---

The documentation for this class was generated from the following files:

• modules/src/models/datamodeloperations.h
• modules/src/models/datamodeloperations.cpp
