CTL::AbstractDataModel Class Reference

The AbstractDataModel class is the base class for basic data models. More...

#include <abstractdatamodel.h>

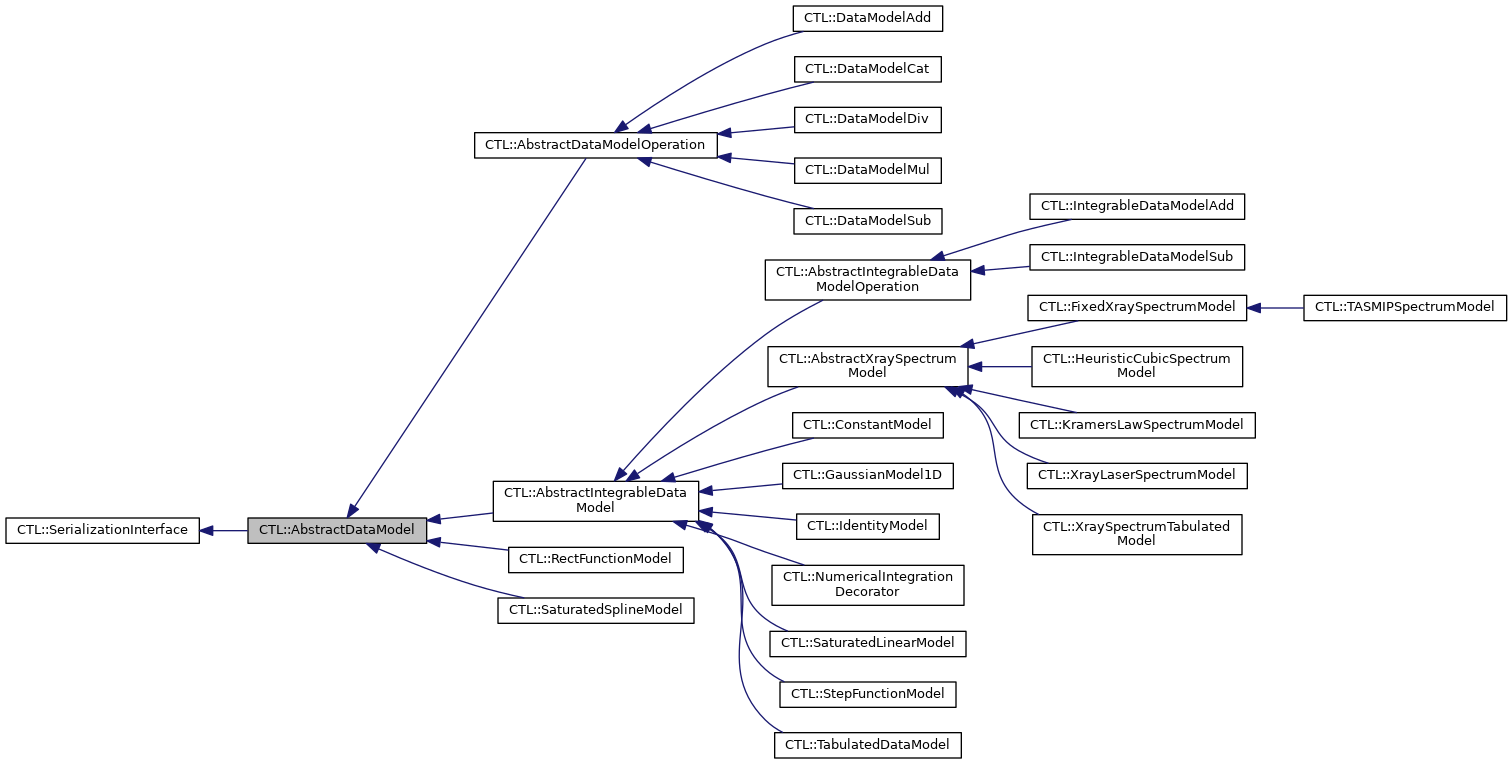

Inheritance diagram for CTL::AbstractDataModel:

Collaboration diagram for CTL::AbstractDataModel:

Public Types
enum	{ Type = 0 }
Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override
virtual float	valueAt (float position) const =0
virtual AbstractDataModel *	clone () const =0
virtual QVariant	parameter () const
virtual void	setParameter (const QVariant &parameter)
void	fromVariant (const QVariant &variant) override
QVariant	toVariant () const override
bool	isIntegrable () const
void	setName (const QString &name)
const QString &	name () const
Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Protected Member Functions
	AbstractDataModel (const AbstractDataModel &)=default
	AbstractDataModel (AbstractDataModel &&)=default
AbstractDataModel &	operator= (const AbstractDataModel &)=default
AbstractDataModel &	operator= (AbstractDataModel &&)=default
Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default
	SerializationInterface (const SerializationInterface &)=default
	SerializationInterface (SerializationInterface &&)=default
SerializationInterface &	operator= (const SerializationInterface &)=default
SerializationInterface &	operator= (SerializationInterface &&)=default

Private Attributes
QString	_name

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Related Functions
(Note that these are not member functions.)
	DataModelPtr
	Template alias name for CopyableUniquePtr<ModelType> to a suitable ModelType.
	AbstractDataModelPtr
	Alias name for DataModelPtr<AbstractDataModel>. More...
std::unique_ptr< ModelType >	makeDataModel (ConstructorArguments &&... arguments)
using DataModelPtr	CopyableUniquePtr
	Alias name for CopyableUniquePtr<ModelType> to a suitable ModelType.

Detailed Description

The AbstractDataModel class is the base class for basic data models.

Sub-classes must implement the method to sample a value at a given position (valueAt()).

Parameters can be set by passing a QVariant that contains all necessary information. Re-implement the setParameter() method to parse the QVariant into your required format within sub-classes of AbstractDataModel.

To enable de-/serialization of sub-class objects, also reimplement the parameter() method such that it stores all parameters of the model in a QVariant. Additionally, call the macro DECLARE_SERIALIZABLE_TYPE(YourNewClassName) within the .cpp file of your new class (substitute "YourNewClassName" with the actual class name). Objects of the new class can then be de-/serialized with any of the serializer classes (see also AbstractSerializer).

Alternatively, the de-/serialization interface methods toVariant() and fromVariant() can be reimplemented directly. This might be required in some specific situations (usually when polymorphic class members are in use). For the majority of cases, using the parameter() / setParameter() approach should be sufficient and is recommended.

Member Function Documentation

clone()

AbstractDataModel * CTL::AbstractDataModel::clone ( ) const

pure virtual

Creates a copy of this instance and returns a base class pointer to the new object.

Implemented in CTL::TASMIPSpectrumModel, CTL::HeuristicCubicSpectrumModel, CTL::KramersLawSpectrumModel, CTL::FixedXraySpectrumModel, CTL::GaussianModel1D, CTL::IdentityModel, CTL::RectFunctionModel, CTL::XrayLaserSpectrumModel, CTL::ConstantModel, CTL::IntegrableDataModelSub, CTL::IntegrableDataModelAdd, CTL::AbstractIntegrableDataModel, CTL::StepFunctionModel, CTL::DataModelCat, CTL::XraySpectrumTabulatedModel, CTL::DataModelDiv, CTL::SaturatedSplineModel, CTL::DataModelMul, CTL::DataModelSub, CTL::TabulatedDataModel, CTL::DataModelAdd, CTL::AbstractXraySpectrumModel, CTL::SaturatedLinearModel, and CTL::NumericalIntegrationDecorator.

fromVariant()

void CTL::AbstractDataModel::fromVariant ( const QVariant &  variant )

overridevirtual

Decodes all information required to describe this instance from variant. Required to provide de-/serialization functionality.

Reimplemented from CTL::SerializationInterface.

isIntegrable()

bool CTL::AbstractDataModel::isIntegrable

(

)

const

Convenience function that returns true if a dynamic_cast to AbstractIntegrableDataModel is successful and false otherwise.

Returns true if this instance allows integration of data (i.e. it provides the binIntegral() method).

Same as dynamic_cast<const AbstractIntegrableDataModel*>(this).

name()

const QString & CTL::AbstractDataModel::name

(

)

const

Returns the name of this model.

parameter()

QVariant CTL::AbstractDataModel::parameter ( ) const

virtual

Returns the parameters of this instance as a QVariant.

Re-implement this method within your sub-class such that it encapsulates all necessary information into a QVariant.

Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::parameter().toMap();

ret.insert("my new parameter", _myNewParameter);

return ret;

Reimplemented in CTL::FixedXraySpectrumModel, CTL::GaussianModel1D, CTL::RectFunctionModel, CTL::ConstantModel, CTL::StepFunctionModel, CTL::AbstractIntegrableDataModelOperation, CTL::XraySpectrumTabulatedModel, CTL::SaturatedSplineModel, CTL::TabulatedDataModel, CTL::SaturatedLinearModel, CTL::AbstractXraySpectrumModel, CTL::NumericalIntegrationDecorator, and CTL::AbstractDataModelOperation.

setName()

void CTL::AbstractDataModel::setName

(

const QString &

name

)

Sets the name of this model to name.

setParameter()

void CTL::AbstractDataModel::setParameter ( const QVariant &  parameter )

virtual

Passes parameter to this instance.

Encapsulate all necessary information into the passed QVariant and re-implement this method within your sub-class to parse it into your required format.

Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

DirectBaseClass::setParameter(parameter);

// assuming our class has a parameter member "double _myNewParameter"

_myNewParameter = parameter.toMap().value("my new parameter").toDouble();

Reimplemented in CTL::TASMIPSpectrumModel, CTL::FixedXraySpectrumModel, CTL::GaussianModel1D, CTL::RectFunctionModel, CTL::ConstantModel, CTL::StepFunctionModel, CTL::AbstractIntegrableDataModelOperation, CTL::XraySpectrumTabulatedModel, CTL::SaturatedSplineModel, CTL::TabulatedDataModel, CTL::SaturatedLinearModel, CTL::NumericalIntegrationDecorator, CTL::AbstractXraySpectrumModel, and CTL::AbstractDataModelOperation.

toVariant()

QVariant CTL::AbstractDataModel::toVariant ( ) const

overridevirtual

Encodes all information required to describe this instance into a QVariant.

Required to provide de-/serialization functionality.

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::GaussianModel1D.

type()

int CTL::AbstractDataModel::type ( ) const

inlineoverridevirtual

Returns the type id of this instance.

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::TASMIPSpectrumModel, CTL::HeuristicCubicSpectrumModel, CTL::KramersLawSpectrumModel, CTL::FixedXraySpectrumModel, CTL::GaussianModel1D, CTL::IdentityModel, CTL::RectFunctionModel, CTL::ConstantModel, CTL::XrayLaserSpectrumModel, CTL::IntegrableDataModelSub, CTL::IntegrableDataModelAdd, CTL::StepFunctionModel, CTL::DataModelCat, CTL::XraySpectrumTabulatedModel, CTL::DataModelDiv, CTL::SaturatedSplineModel, CTL::DataModelMul, CTL::DataModelSub, CTL::TabulatedDataModel, CTL::DataModelAdd, CTL::SaturatedLinearModel, and CTL::NumericalIntegrationDecorator.

valueAt()

float CTL::AbstractDataModel::valueAt ( float  position ) const

pure virtual

Returns the value sampled from the model at the given position.

Implemented in CTL::HeuristicCubicSpectrumModel, CTL::KramersLawSpectrumModel, CTL::FixedXraySpectrumModel, CTL::GaussianModel1D, CTL::IdentityModel, CTL::RectFunctionModel, CTL::XrayLaserSpectrumModel, CTL::ConstantModel, CTL::IntegrableDataModelSub, CTL::IntegrableDataModelAdd, CTL::StepFunctionModel, CTL::DataModelCat, CTL::XraySpectrumTabulatedModel, CTL::DataModelDiv, CTL::SaturatedSplineModel, CTL::DataModelMul, CTL::DataModelSub, CTL::TabulatedDataModel, CTL::DataModelAdd, CTL::SaturatedLinearModel, and CTL::NumericalIntegrationDecorator.

Friends And Related Function Documentation

AbstractDataModelPtr()

AbstractDataModelPtr

related

Alias name for DataModelPtr<AbstractDataModel>.

It provide unique_ptr like behavior for subclasses of AbstractDataModel with option to copy by means of deep copying (provided by clone()).

makeDataModel()

std::unique_ptr< ModelType > makeDataModel ( ConstructorArguments &&...  arguments )

related

Global (free) make function that creates a new AbstractDataModel from the constructor arguments. The component is returned as a std::unique_ptr<ModelType>, whereas ModelType is the template argument of this function that needs to be specified.

---

The documentation for this class was generated from the following files:

• modules/src/models/abstractdatamodel.h
• modules/src/models/abstractdatamodel.cpp
