Generic implementation of a gantry component. More...

#include <genericgantry.h>

Inheritance diagram for CTL::GenericGantry:

[legend]

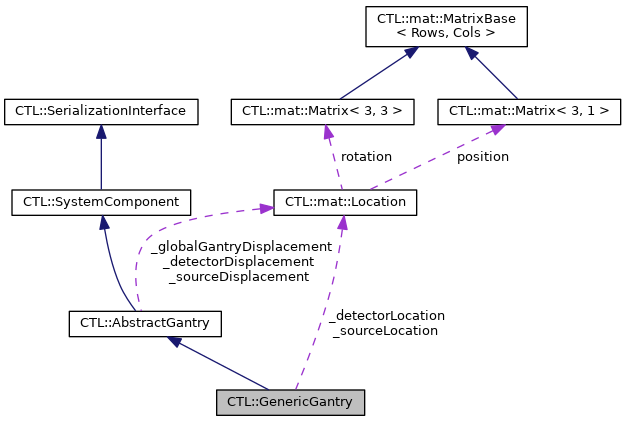

Collaboration diagram for CTL::GenericGantry:

[legend]

Public Types
enum	{ Type = 201 }

Public Types inherited from CTL::AbstractGantry
enum	{ Type = 200 }

Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

	GenericGantry (const QString &name=defaultName())

	GenericGantry (const mat::Location &sourceLocation, const mat::Location &detectorLocation, const QString &name=defaultName())

	GenericGantry (const Vector3x1 &sourcePosition, const Matrix3x3 &sourceRotation, const Vector3x1 &detectorPosition, const Matrix3x3 &detectorRotation, const QString &name=defaultName())

SystemComponent *	clone () const override

QString	info () const override

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

void	setDetectorLocation (const mat::Location &location)

void	setSourceLocation (const mat::Location &location)

void	setDetectorPosition (const Vector3x1 &detectorPosition)

void	setDetectorRotation (const Matrix3x3 &detectorRotation)

void	setSourcePosition (const Vector3x1 &sourcePosition)

void	setSourceRotation (const Matrix3x3 &sourceRotation)

Public Member Functions inherited from CTL::AbstractGantry
mat::Location	sourceLocation () const

mat::Location	detectorLocation () const

const mat::Location &	detectorDisplacement () const

const mat::Location &	gantryDisplacement () const

const mat::Location &	sourceDisplacement () const

void	setDetectorDisplacement (const mat::Location &displacement)

void	setGantryDisplacement (const mat::Location &displacement)

void	setSourceDisplacement (const mat::Location &displacement)

Vector3x1	sourcePosition () const

Matrix3x3	sourceRotation () const

Vector3x1	detectorPosition () const

Matrix3x3	detectorRotation () const

void	setDetectorDisplacementAngles (double rollAngle, double tiltAngle, double twistAngle)

void	setDetectorDisplacementPosition (const Vector3x1 &position)

void	setDetectorDisplacementPosition (double x, double y, double z)

void	setGantryDisplacementPosition (const Vector3x1 &position)

void	setGantryDisplacementPosition (double x, double y, double z)

void	setSourceDisplacementPosition (const Vector3x1 &position)

void	setSourceDisplacementPosition (double x, double y, double z)

std::unique_ptr< GenericGantry >	toGeneric () const

Public Member Functions inherited from CTL::SystemComponent
int	type () const override

	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static QString	defaultName ()

static std::unique_ptr< GenericGantry >	fromOther (const AbstractGantry &other)

Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Protected Member Functions
mat::Location	nominalDetectorLocation () const override

mat::Location	nominalSourceLocation () const override

Protected Member Functions inherited from CTL::AbstractGantry
	AbstractGantry (const QString &name)

	AbstractGantry (const AbstractGantry &)=default

	AbstractGantry (AbstractGantry &&)=default

AbstractGantry &	operator= (const AbstractGantry &)=default

AbstractGantry &	operator= (AbstractGantry &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Private Attributes
mat::Location	_detectorLocation
	Location of the detector component.

mat::Location	_sourceLocation
	Location of the source component.

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)

Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Detailed Description

Generic implementation of a gantry component.

This class implements AbstractGantry with a straightforward parametrization of the locations of its detector and source component. In particular, this parametrization consists of the locations (in world coordinates) themselves. These are stored as private members. The abstract interface methods nominalDetectorLocation() and nominalSourceLocation() are implemented such that they simply return their corresponding private members.

Use the setter methods setDetectorLocation() or setSourceLocation() to change the locations of source and/or detector, respectively. For convenience, setter methods for isolated changes of the position or rotation component of these locations are provided.

Constructor & Destructor Documentation

◆ GenericGantry() [1/3]

CTL::GenericGantry::GenericGantry ( const QString & name = defaultName() )

Constructs a GenericGantry object named name.

◆ GenericGantry() [2/3]

CTL::GenericGantry::GenericGantry	(	const mat::Location &	sourceLocation,
		const mat::Location &	detectorLocation,
		const QString &	name = `defaultName()`
	)

Constructs a GenericGantry with the source placed at sourceLocation (note that this includes its position and rotation) and the detector mounted at detectorLocation.

For details on all coordinate systems: see detailed class description.

◆ GenericGantry() [3/3]

CTL::GenericGantry::GenericGantry	(	const Vector3x1 &	sourcePosition,
		const Matrix3x3 &	sourceRotation,
		const Vector3x1 &	detectorPosition,
		const Matrix3x3 &	detectorRotation,
		const QString &	name = `defaultName()`
	)

Constructs a GenericGantry with a source at sourcePosition (orientation given by sourceRotation) and the detector placed at detectorPosition (orientation given by detectorRotation).

For details on all coordinate systems: see detailed class description.

Member Function Documentation

◆ clone()

SystemComponent * CTL::GenericGantry::clone ( ) const

overridevirtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented from CTL::SystemComponent.

◆ defaultName()

QString CTL::GenericGantry::defaultName ( )

static

Returns the default name for the component: "Generic gantry".

◆ fromVariant()

void CTL::GenericGantry::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractGantry.

◆ info()

QString CTL::GenericGantry::info ( ) const

overridevirtual

Returns a formatted string with information about the object.

In addition to the information from the base class (GenericComponent), the info string contains the following details:

Source position
Detector position
Source rotation
Detector rotation.

Reimplemented from CTL::AbstractGantry.

◆ nominalDetectorLocation()

mat::Location CTL::GenericGantry::nominalDetectorLocation ( ) const

overrideprotectedvirtual

Returns the nominal detector location. This ignores any (optional) detector displacement.

Override this method when sub-classing GenericGantry allows for customization of the parametrization of the components' locations.

See also: detectorLocation().

Implements CTL::AbstractGantry.

◆ nominalSourceLocation()

mat::Location CTL::GenericGantry::nominalSourceLocation ( ) const

overrideprotectedvirtual

Returns the nominal source location. This ignores any (optional) source displacement.

Override this method when sub-classing GenericGantry allows for customization of the parametrization of the components' locations.

See also: sourceLocation().

Implements CTL::AbstractGantry.

◆ setDetectorLocation()

void CTL::GenericGantry::setDetectorLocation ( const mat::Location & location )

Sets the location (i.e. position and rotation) of the detector to location. Must not contain effects considered by the displacement.

◆ setDetectorPosition()

void CTL::GenericGantry::setDetectorPosition ( const Vector3x1 & detectorPosition )

Convenience setter. Sets the position of the detector to detectorPosition.

See also: setDetectorLocation()

◆ setDetectorRotation()

void CTL::GenericGantry::setDetectorRotation ( const Matrix3x3 & detectorRotation )

Convenience setter. Sets the rotation of the detector to detectorRotation.

The rotation matrix describes the transformation from WCS to CTS.

See also: setDetectorLocation()

◆ setSourceLocation()

void CTL::GenericGantry::setSourceLocation ( const mat::Location & location )

Sets the location (i.e. position and rotation) of the source to location. Must not contain effects considered by the displacement.

◆ setSourcePosition()

void CTL::GenericGantry::setSourcePosition ( const Vector3x1 & sourcePosition )

Convenience setter. Sets the position of the source to sourcePosition.

See also: setSourceLocation()

◆ setSourceRotation()

void CTL::GenericGantry::setSourceRotation ( const Matrix3x3 & sourceRotation )

Convenience setter. Sets the rotation of the source to sourceRotation.

The rotation matrix describes the transformation from the intrinsic source coordinate system to the WCS.

See also: setSourceLocation()

◆ toVariant()

QVariant CTL::GenericGantry::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::AbstractGantry.

◆ type()

int CTL::GenericGantry::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractGantry.

The documentation for this class was generated from the following files:

modules/src/components/genericgantry.h
modules/src/components/genericgantry.cpp
