Base class for all system components. More...

#include <systemcomponent.h>

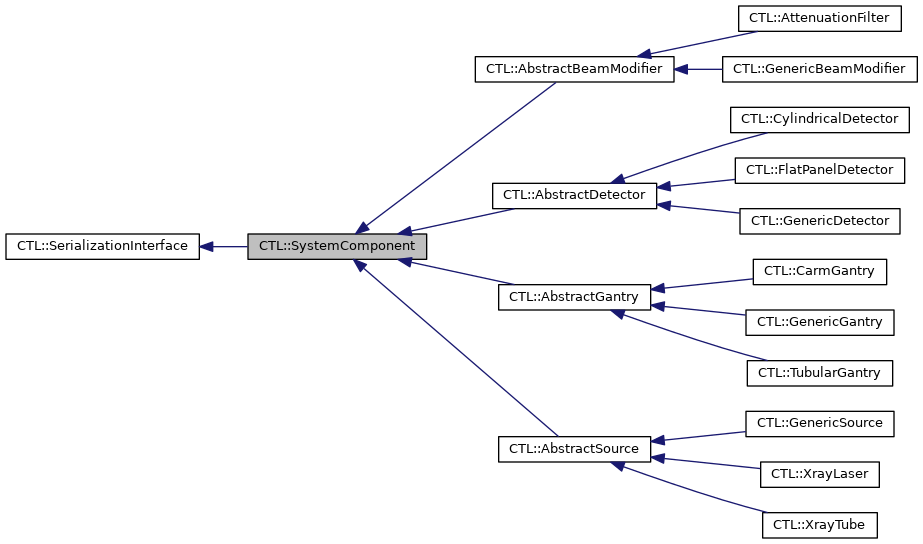

Inheritance diagram for CTL::SystemComponent:

[legend]

Collaboration diagram for CTL::SystemComponent:

Public Types
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

virtual QString	info () const

virtual SystemComponent *	clone () const

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static QString	defaultName ()

Static Protected Member Functions
static QString	typeInfoString (const std::type_info &type)

Private Attributes
QString	_name
	The component's name.

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Related Functions
(Note that these are not member functions.)

std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Additional Inherited Members
Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Detailed Description

Base class for all system components.

This is the base class for all system components. It holds the components' name and defines the interface type(), elementalType() and info() as well as the clone() method. Additionally, the interface to de-/serialize components from/to JSON format are defined by read() and write().

To implement a custom component, create a sub-class of SystemComponent and make sure to register the component in the enumeration using the CTL_TYPE_ID(newIndex) macro. It is required to specify a value for newIndex that is not already in use. Please refer to the table found in type() for a list of values that are already in use. Another easy way to employ a free index is to use values starting from SystemComponent::UserType, as these are reserved for user-defined types.

To enable de-/serialization of objects of the new sub-class, reimplement the toVariant() and fromVariant() methods. These should take care of all newly introduced information of the sub-class. Additionally, call the macro DECLARE_SERIALIZABLE_TYPE(YourNewClassName) within the .cpp file of your new class (substitute "YourNewClassName" with the actual class name). Objects of the new class can then be de-/serialized with any of the serializer classes (see also AbstractSerializer).

It is strongly advised to sub-class one of the specialized abstract component types (instead of sub-classing SystemComponent directly), with respect to the specific purpose of the new class. By concept, the CTL core module is built-up on four different elemental sub-classes:

However, in the rare case that it is desired to extend this selection by a custom elemental component type, SystemComponent can also be sub-classed directly. In this case the DECLARE_ELEMENTAL_TYPE macro should be used to signalize that the class represents an elemental type. This will provide the possibility to query the underlying elemental type of all further sub-classes using their elementalType() method. Note that newly introduced elemental types will not be considered at any stage within the CTL modules without suitable changes/additions to the corresponding routines.

See also: elementalType()

Constructor & Destructor Documentation

◆ SystemComponent()

CTL::SystemComponent::SystemComponent ( const QString & name = defaultName() )

Constructs a component with the name name. If no name is passed, it defaults to "Generic system component".

Default move-constructor.

Default copy-constructor.

Member Function Documentation

◆ clone()

SystemComponent * CTL::SystemComponent::clone ( ) const

virtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented in CTL::CylindricalDetector, CTL::TubularGantry, CTL::GenericGantry, CTL::GenericDetector, CTL::CarmGantry, CTL::AttenuationFilter, CTL::GenericBeamModifier, CTL::GenericSource, CTL::XrayLaser, CTL::FlatPanelDetector, and CTL::XrayTube.

◆ defaultName()

QString CTL::SystemComponent::defaultName ( )

static

Returns the default name for the component: "Generic system component".

◆ elementalType()

int CTL::SystemComponent::elementalType ( ) const

inlinevirtual

Returns the type id of the underlying elemental base class.

By default, there are four different elemental sub-classes:

◆ fromVariant()

void CTL::SystemComponent::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::TubularGantry, CTL::XrayLaser, and CTL::XrayTube.

◆ info()

QString CTL::SystemComponent::info ( ) const

virtual

Returns a string that should contain all information about the component.

Reimplemented in CTL::AbstractSource, CTL::AbstractGantry, CTL::AbstractDetector, CTL::AbstractBeamModifier, CTL::CylindricalDetector, CTL::TubularGantry, CTL::GenericGantry, CTL::GenericDetector, CTL::AttenuationFilter, CTL::CarmGantry, CTL::GenericBeamModifier, CTL::GenericSource, CTL::XrayLaser, CTL::FlatPanelDetector, and CTL::XrayTube.

◆ name()

const QString & CTL::SystemComponent::name ( ) const

Returns the objects name.

◆ rename()

void CTL::SystemComponent::rename ( QString name )

Sets the objects name to name.

◆ toVariant()

QVariant CTL::SystemComponent::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::TubularGantry, CTL::XrayLaser, and CTL::XrayTube.

◆ type()

int CTL::SystemComponent::type ( ) const

inlineoverridevirtual

Returns the type id of the component.

List of all default types:

Type	Type-ID
SystemComponent::Type	0
AbstractDetector::Type	100
AbstractGantry::Type	200
AbstractSource::Type	300
AbstractBeamModifier::Type	400
GenericDetector::Type	101
GenericGantry::Type	201
GenericSource::Type	301
GenericBeamModifier::Type	401
CylindricalDetector::Type	110
FlatPanelDetector::Type	120
CarmGantry::Type	210
TubularGantry::Type	220
XrayLaser::Type	310
XrayTube::Type	320

Reimplemented from CTL::SerializationInterface.

Reimplemented in CTL::TubularGantry, CTL::XrayLaser, and CTL::XrayTube.

◆ typeInfoString()

QString CTL::SystemComponent::typeInfoString ( const std::type_info & type )

staticprotected

Returns a string that contains the typename of type.

Friends And Related Function Documentation

◆ makeComponent()

std::unique_ptr< ComponentType > makeComponent ( ConstructorArguments &&... arguments )

Global (free) make function that creates a new SystemComponent from the constructor arguments. The component is returned as a std::unique_ptr<ComponentType>, whereas ComponentType is the template argument of this function that needs to be specified.

◆ makeComponentFromJson()

std::unique_ptr< SystemComponent > makeComponentFromJson	(	const QJsonObject &	object,
		bool	fallbackToGenericType
	)

Global (free) make function that parses a QJsonObject and creates a concrete SystemComponent (any subtype) whose Type-ID is registered (with CTL_TYPE_ID). It is also required that this type has been added to the switch-case list inside the implementation of parseComponentFromJson(const QJsonObject&) in the header file "components/jsonparser.h". If the type is not known (not implemented into the switch-case list) and fallbackToGenericType is set to true, the function tries - by using parseGenericComponentFromJson(const QJsonObject&) - to restore a Generic<Type> (e.g. GenericSource) based of its elemental type id. However in this case all the specific information (member variables) of the unknown type as well as the information of the Generic<Type> cannot be restored, only the information of the elemental Abstract<Type> is recovered. If the parsing of the Json object was not successful, the functions returns a nullptr.

The documentation for this class was generated from the following files:

modules/src/components/systemcomponent.h
modules/src/components/systemcomponent.cpp
