Inheritance diagram for CTL::GenericSource:

[legend]

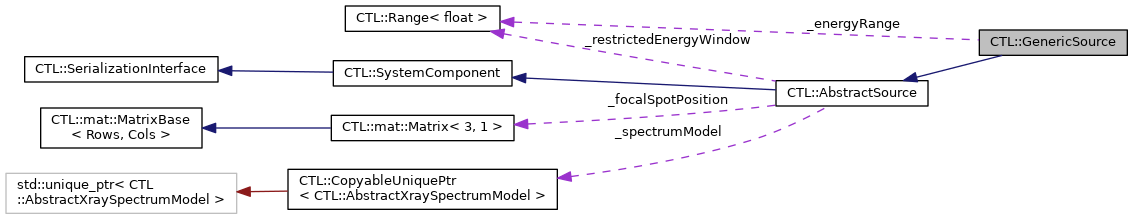

Collaboration diagram for CTL::GenericSource:

[legend]

Public Types
enum	{ Type = 301 }

Public Types inherited from CTL::AbstractSource
enum	{ Type = 300 }

Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

virtual EnergyRange	nominalEnergyRange () const override

	GenericSource (const QString &name)

	GenericSource (const IntervalDataSeries &spectrum, double photonFlux=-1.0, const QSizeF &focalSpotSize=QSizeF(0.0, 0.0), const Vector3x1 &focalSpotPosition=Vector3x1(0.0), const QString &name=defaultName())

	GenericSource (const QSizeF &focalSpotSize=QSizeF(0.0, 0.0), const Vector3x1 &focalSpotPosition=Vector3x1(0.0), const QString &name=defaultName())

SystemComponent *	clone () const override

QString	info () const override

uint	spectrumDiscretizationHint () const override

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

void	setEnergyRange (const EnergyRange &range)

void	setSpectrum (const IntervalDataSeries &spectrum, bool updateFlux=false)

void	setPhotonFlux (double flux)

Public Member Functions inherited from CTL::AbstractSource
virtual IntervalDataSeries	spectrum (uint nbSamples) const
	Returns the (relative) emitted radiation spectrum sampled with nbSamples bins covering the energy range of [energyRange().start(), energyRange().end()] keV. More...

virtual void	setSpectrumModel (AbstractXraySpectrumModel *model)

EnergyRange	energyRange () const

float	meanEnergy () const

double	photonFlux () const

double	fluxModifier () const

const QSizeF &	focalSpotSize () const

const Vector3x1 &	focalSpotPosition () const

const AbstractXraySpectrumModel *	spectrumModel () const

void	setFluxModifier (double modifier)

void	setFocalSpotSize (const QSizeF &size)

void	setFocalSpotSize (double width, double height)

void	setFocalSpotPosition (const Vector3x1 &position)

void	setFocalSpotPosition (double x, double y, double z)

void	setEnergyRangeRestriction (const EnergyRange &window)

IntervalDataSeries	spectrum (EnergyRange range, uint nbSamples) const

bool	hasSpectrumModel () const

void	setSpectrumModel (std::unique_ptr< AbstractXraySpectrumModel > model)

std::unique_ptr< GenericSource >	toGeneric () const

Public Member Functions inherited from CTL::SystemComponent
int	type () const override

	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static QString	defaultName ()

static void	setPhotonCountInSystem (SimpleCTSystem *system, double photonsPerPixel)

static std::unique_ptr< GenericSource >	fromOther (const AbstractSource &other, uint nbSamplesForSpectrum=0)

Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Protected Member Functions
virtual double	nominalPhotonFlux () const override

Protected Member Functions inherited from CTL::AbstractSource
	AbstractSource (const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const Vector3x1 &focalSpotPosition, const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const Vector3x1 &focalSpotPosition, AbstractXraySpectrumModel *spectumModel, const QString &name)

	AbstractSource (const AbstractSource &)=default

	AbstractSource (AbstractSource &&)=default

AbstractSource &	operator= (const AbstractSource &)=default

AbstractSource &	operator= (AbstractSource &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Protected Attributes
EnergyRange	_energyRange = { 0.0f, 0.0f }
	Energy range of the emitted radiation.

uint	_samplingHint = 0
	Number of samples from last set spectrum.

double	_totalFlux = 0.0
	Total photon flux (photons/cm² in 1m distance).

Protected Attributes inherited from CTL::AbstractSource
QSizeF	_focalSpotSize = QSizeF(0.0, 0.0)
	Size of the focal spot (in mm).

Vector3x1	_focalSpotPosition = Vector3x1(0.0)
	Position of the focal spot (relative to source center).

double	_fluxModifier = 1.0
	Global (multiplicative) modifier for the photon flux.

DataModelPtr< AbstractXraySpectrumModel >	_spectrumModel
	Data model for the emitted radiation spectrum.

EnergyRange	_restrictedEnergyWindow = { 0.0f, 0.0f }
	Windowed energy range.

bool	_hasRestrictedEnergyWindow = false

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Static Public Attributes inherited from CTL::AbstractSource
static const uint	DEFAULT_SPECTRUM_RESOLUTION_HINT = 10

Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)

Related Functions inherited from CTL::AbstractSource
	EnergyRange
	Alias name for CTL::Range<float>. More...

Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Constructor & Destructor Documentation

◆ GenericSource() [1/2]

CTL::GenericSource::GenericSource ( const QString & name )

Constructs a GenericSource with the name name.

Focal spot size defaults to QSizeF(0.0, 0.0) and the focal spot position to Vector3x1(0.0f).

◆ GenericSource() [2/2]

CTL::GenericSource::GenericSource	(	const QSizeF &	focalSpotSize = `QSizeF(0.0, 0.0)`,
		const Vector3x1 &	focalSpotPosition = `Vector3x1(0.0)`,
		const QString &	name = `defaultName()`
	)

Constructs a GenericSource with a focal spot size of focalSpotSize, the focal spot positioned at focalSpotPosition and the name name.

Member Function Documentation

◆ clone()

SystemComponent * CTL::GenericSource::clone ( ) const

overridevirtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented from CTL::SystemComponent.

◆ defaultName()

QString CTL::GenericSource::defaultName ( )

static

Returns the default name for the component: "Generic source".

◆ fromVariant()

void CTL::GenericSource::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractSource.

◆ info()

QString CTL::GenericSource::info ( ) const

overridevirtual

Returns a formatted string with information about the object.

Reimplemented from CTL::AbstractSource.

◆ nominalEnergyRange()

EnergyRange CTL::GenericSource::nominalEnergyRange ( ) const

overridevirtual

Returns the energy range [in keV] of the radiation emitted by this instance.

Implements CTL::AbstractSource.

◆ nominalPhotonFlux()

double CTL::GenericSource::nominalPhotonFlux ( ) const

overrideprotectedvirtual

Returns the nominal photon flux (photons/cm² in 1m distance).

Implements CTL::AbstractSource.

◆ setEnergyRange()

void CTL::GenericSource::setEnergyRange ( const EnergyRange & range )

Sets the energy range to range.

Note that an appropriate energy range will be set automatically when using setSpectrum(). Use this method only if you specifically intend to change the energy range and yor are sure that meaningful information for range is available from the spectrum set to this instance.

◆ setPhotonFlux()

void CTL::GenericSource::setPhotonFlux ( double flux )

Sets total photon flux to flux (in photons/cm² in 1m distance).

◆ setSpectrum()

void CTL::GenericSource::setSpectrum	(	const IntervalDataSeries &	spectrum,
		bool	updateFlux = `false`
	)

Sets the spectrum of this instance to the sampled data provided by spectrum. Also sets the energy range of this instance to the range covered by spectrum and stores the number of samples in spectrum for later use in spectrumDiscretizationHint().

Internally, a TabulatedDataModel is created that stores the data passed by spectrum. This model is then used as this component's spectral model. Hence, calling spectrum(spectrumDiscretizationHint()) after setting a spectrum using this method will return the same data series as has been set.

If updateFlux = true, the total flux will be set to the integral over the samples from spectrum. Otherwise, the total flux remains unchanged. Use this only if you provide unnormalized spectral data that encodes the total flux by its scaling.

◆ spectrumDiscretizationHint()

uint CTL::GenericSource::spectrumDiscretizationHint ( ) const

overridevirtual

Returns a hint for a reasonable number of sampling points when querying a spectrum of the component. This returns the number of samples of the last spectrum set using setSpectrum().

Reimplemented from CTL::AbstractSource.

◆ toVariant()

QVariant CTL::GenericSource::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::AbstractSource.

◆ type()

int CTL::GenericSource::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractSource.

The documentation for this class was generated from the following files:

modules/src/components/genericsource.h
modules/src/components/genericsource.cpp
