The SimpleSubsetGenerator class provides an implementation of subset generation featuring a few simple options. More...

#include <simplesubsetgenerator.h>

Inheritance diagram for CTL::SimpleSubsetGenerator:

[legend]

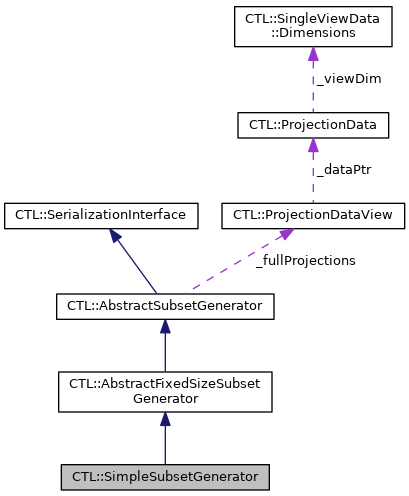

Collaboration diagram for CTL::SimpleSubsetGenerator:

[legend]

Public Types
enum	{ Type = 1010 }

enum	Order { Random, Adjacent, Orthogonal180, Orthogonal360 }

Public Types inherited from CTL::AbstractFixedSizeSubsetGenerator
enum	{ Type = 1001 }

Public Types inherited from CTL::AbstractSubsetGenerator
enum	{ Type = 1000 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

	SimpleSubsetGenerator (uint nbSubsets=1, Order subsetOrder=Random)
	Creates a SimpleSubsetGenerator that generates nbSubsets subsets according to the creation pattern subsetOrder. More...

void	setOrder (Order order)
	Sets the order used for selecting views for a subset to order. More...

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

Public Member Functions inherited from CTL::AbstractFixedSizeSubsetGenerator
uint	nbSubsets () const
	Returns the number of subsets that are generated.

void	setNbSubsets (uint nbSubsets)
	Sets the number of subsets that will be generated to nbSubsets.

Public Member Functions inherited from CTL::AbstractSubsetGenerator
virtual void	setSetup (const AcquisitionSetup &)
	Sets the AcquisitionSetup that belongs to the projection data to setup. More...

virtual void	setProjections (ProjectionDataView projections)
	Sets the projections that this instance shall operate on to projections. More...

void	setData (ProjectionDataView projections, const AcquisitionSetup &setup)
	Sets the projections to projections and the corresponding acquisition setup to setup. More...

std::vector< ProjectionDataView >	generateSubsets (uint iteration) const
	Generates the subsets for iteration iteration. More...

virtual std::vector< std::vector< ProjectionDataView > >	generateAllSubsets (uint nbIterations)
	Convenience method to generate subsets for a certain number of iterations. More...

bool	isSubsetPermutationEnabled () const
	Returns `true` if subset permutation is enabled; `false` otherwise.

const ProjectionDataView &	projections () const
	Returns the ProjectionDataView that has been set via setProjections().

uint	randomGeneratorSeed () const
	Returns the seed that has been used to seed the RNG of this instance. More...

void	setRandomGeneratorSeed (uint seed=std::random_device{}())
	Sets the seed of the RNG to seed and actually seeds the RNG.

void	setSubsetPermutationEnabled (bool enabled)
	Sets the use of subset permutation to enabled. More...

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Protected Member Functions
std::vector< ProjectionDataView >	generateSubsetsImpl (uint iteration) const override
	Implementation of the subset generation routine. More...

Protected Member Functions inherited from CTL::AbstractFixedSizeSubsetGenerator
	AbstractFixedSizeSubsetGenerator (uint nbSubsets=1u)
	Creates an AbstractFixedSizeSubsetGenerator and sets the number of subsets to nbSubsets.

Protected Member Functions inherited from CTL::AbstractSubsetGenerator
	AbstractSubsetGenerator ()
	Constructs an AbstractSubsetGenerator. More...

	AbstractSubsetGenerator (const AbstractSubsetGenerator &)=default

	AbstractSubsetGenerator (AbstractSubsetGenerator &&)=default

AbstractSubsetGenerator &	operator= (const AbstractSubsetGenerator &)=default

AbstractSubsetGenerator &	operator= (AbstractSubsetGenerator &&)=default

virtual void	shuffleSubsets (std::vector< ProjectionDataView > &subsets) const
	Randomly permutes the order of the subsets in subsets. More...

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Private Member Functions
std::vector< ProjectionDataView >	makeRandomSubsets (const std::vector< uint > &subsetSizes) const
	Creates subsets based on random selection of views. More...

std::vector< ProjectionDataView >	makeAdjacentSubsets (const std::vector< uint > &subsetSizes) const
	Creates subsets taking adjacent blocks of views into a subset. More...

std::vector< ProjectionDataView >	makeOrthogonalSubsets (const std::vector< uint > &subsetSizes) const
	Creates subsets based on the assumption of a circular scan orbit. More...

Static Private Member Functions
static QMetaEnum	metaEnum ()
	QMetaEnum object used to decode/encode subset order enum values.

Private Attributes
Order	_order = Random

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Protected Attributes inherited from CTL::AbstractFixedSizeSubsetGenerator
uint	_nbSubsets = 1u

Protected Attributes inherited from CTL::AbstractSubsetGenerator
ProjectionDataView	_fullProjections = ProjectionDataView::invalidView()
	The projection data view this instance operates on.

std::mt19937	_rng
	random number generator (RNG) instance

uint	_rngSeed = 42
	value used to seed the RNG

bool	_permuteSubsets = true
	state variable if subset permutation is enabled

Related Functions inherited from CTL::AbstractFixedSizeSubsetGenerator
std::vector< uint >	subsetSizes (uint nbViews, uint nbSubsets, SubsetArrangement arrangement)
	Convenience helper function that calculates sizes for subsets given the total number of projections nbViews, the requested number of subsets nbSubsets and an arrangement type. More...

Detailed Description

The SimpleSubsetGenerator class provides an implementation of subset generation featuring a few simple options.

This class implements the AbstractFixedSizeSubsetGenerator interface. The number of subsets that shall be generated can be specified in the constructor or later on through setNbSubsets().

All provided subset generation routines in this class are independent of the acquisition geometry. Instead, simple strategies (such as random selection) or basic assumptions on the geometry (e.g. 360 degree circle) are used. Four different 'creation patterns' are available for the generation of subsets:

Random - randomly selects views for a subset
Adjacent - puts adjacent views into a subset
Orthogonal180 - selects sets of most orthogonal views, assuming the total scan range was 180 degrees
Orthogonal360 - selects sets of most orthogonal views, assuming the total scan range was 360 degrees

The creation pattern (or the order in which views are selected for participation in a subset) can be specified in the constructor or later on through setOrder(). All creation patterns ensure that each view appears only once in the entire set of subsets.

Example:

// create dummy projection data (sizes entirely arbitrary, and irrelevant here)
ProjectionData dummy(1,1,1);
dummy.allocateMemory(36);   // 'dummy' now contains 36 views
// create a subset generator; set the number of subsets to 4 and the pattern to 'Orthogonal360'
SimpleSubsetGenerator subsetGen;
subsetGen.setNbSubsets(4);
subsetGen.setOrder(SimpleSubsetGenerator::Orthogonal360);
// pass the dummy projection data (note: it contains 36 views)
subsetGen.setProjections(dummy);
// generate subsets (note: iteration '0' is arbitrary and has no effect here)
const auto subsets = subsetGen.generateSubsets(0);
// print the ids of the views included in the two subsets
for(const auto& subset : subsets)
    qInfo() << subset.viewIds();
    // output:
    // std::vector(18, 27, 22, 31, 25, 34, 20, 29, 21)
    // std::vector(30, 19, 28, 26, 35, 23, 32, 24, 33)
    // std::vector(0, 9, 4, 13, 7, 16, 2, 11, 3)
    // std::vector(12, 1, 10, 8, 17, 5, 14, 6, 15)

Member Enumeration Documentation

◆ Order

enum CTL::SimpleSubsetGenerator::Order

Enumeration for subset selection orders.

The selection order decides which views will end up in a particular subset.

Enumerator
Random	Randomly selects views for a subset.
Adjacent	Puts adjacent views into a subset.
Orthogonal180	Selects sets of most orthogonal views, assuming a circular scan orbit with an agular range of 180 degrees.
Orthogonal360	Selects sets of most orthogonal views, assuming a circular scan orbit with an agular range of 360 degrees.

Constructor & Destructor Documentation

◆ SimpleSubsetGenerator()

CTL::SimpleSubsetGenerator::SimpleSubsetGenerator	(	uint	nbSubsets = `1`,
		Order	subsetOrder = `Random`
	)

explicit

Creates a SimpleSubsetGenerator that generates nbSubsets subsets according to the creation pattern subsetOrder.

Example:

// create dummy projection data (sizes entirely arbitrary, and irrelevant here)
ProjectionData dummy(1,1,1);
dummy.allocateMemory(10);   // 'dummy' now contains 10 views
// create a subset generator with 3 subsets and the pattern to 'Adjacent'
SimpleSubsetGenerator subsetGen(3, SimpleSubsetGenerator::Adjacent);
// pass the dummy projection data (note: it contains 36 views)
subsetGen.setProjections(dummy);
// generate subsets (note: iteration '0' is arbitrary and has no effect here)
const auto subsets = subsetGen.generateSubsets(0);
// print the ids of the views included in the two subsets
for(const auto& subset : subsets)
    qInfo() << subset.viewIds();
    // output:
    // std::vector(18, 27, 22, 31, 25, 34, 20, 29, 21)
    // std::vector(30, 19, 28, 26, 35, 23, 32, 24, 33)
    // std::vector(0, 9, 4, 13, 7, 16, 2, 11, 3)
    // std::vector(12, 1, 10, 8, 17, 5, 14, 6, 15)

Member Function Documentation

◆ fromVariant()

void CTL::SimpleSubsetGenerator::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractFixedSizeSubsetGenerator.

◆ generateSubsetsImpl()

std::vector< ProjectionDataView > CTL::SimpleSubsetGenerator::generateSubsetsImpl ( uint iteration ) const

overrideprotectedvirtual

Implementation of the subset generation routine.

This generates the subsets for the data that have been set through setProjections() (or setData()). Generates the same subsets independent of the iteration input.

The generation pattern used depends on the mode selected in the constructor or through setOrder():

Order::Random - randomly selects views for a subset
Order::Adjacent - puts adjacent views into a subset
Order::Orthogonal180 - selects sets of most orthogonal views, assuming the total scan range was 180 degrees
Order::Orthogonal360 - selects sets of most orthogonal views, assuming the total scan range was 360 degrees

Example:

// create dummy projection data (sizes entirely arbitrary, and irrelevant here)
ProjectionData dummy(1,1,1);
dummy.allocateMemory(10);   // 'dummy' now contains 10 views
// create a subset generator and set the number of subsets to 2
SimpleSubsetGenerator subsetGen;
subsetGen.setNbSubsets(2);
// pass the dummy projection data (note: it contains 10 views)
subsetGen.setProjections(dummy);
// we use a simple function to try out the different generation patterns
const auto runGeneration = [&subsetGen] (const SimpleSubsetGenerator::Order& order)
{
    // set the subset order
    subsetGen.setOrder(order);
    // generate subsets (note: iteration '0' is arbitrary and has no effect here)
    const auto subsets = subsetGen.generateSubsets(0);
    // print the ids of the views included in the two subsets
    for(const auto& subset : subsets)
        qInfo() << subset.viewIds();
};
// order: Random
runGeneration(SimpleSubsetGenerator::Random);
    // output:
    // std::vector(6, 2, 1, 0, 3)
    // std::vector(8, 7, 9, 4, 5)
// order: Adjacent
runGeneration(SimpleSubsetGenerator::Adjacent);
    // output:
    // std::vector(0, 1, 2, 3, 4)
    // std::vector(5, 6, 7, 8, 9)
// order: Orthogonal180
runGeneration(SimpleSubsetGenerator::Orthogonal180);
    // output:
    // std::vector(9, 1, 6, 2, 7)
    // std::vector(0, 5, 3, 8, 4)
// order: Orthogonal360
runGeneration(SimpleSubsetGenerator::Orthogonal360);
    // output:
    // std::vector(0, 3, 1, 4, 2)
    // std::vector(5, 8, 6, 9, 7)

Implements CTL::AbstractSubsetGenerator.

◆ makeAdjacentSubsets()

std::vector< ProjectionDataView > CTL::SimpleSubsetGenerator::makeAdjacentSubsets ( const std::vector< uint > & subsetSizes ) const

private

Creates subsets taking adjacent blocks of views into a subset.

Ensures that each view appears only once in the entire set of subsets.

◆ makeOrthogonalSubsets()

std::vector< ProjectionDataView > CTL::SimpleSubsetGenerator::makeOrthogonalSubsets ( const std::vector< uint > & subsetSizes ) const

private

Creates subsets based on the assumption of a circular scan orbit.

Assumes a total scan range of either 180 or 360 degrees, depending on what has been specified as order for the subsets (see setOrder()).

Ensures that each view appears only once in the entire set of subsets.

◆ makeRandomSubsets()

std::vector< ProjectionDataView > CTL::SimpleSubsetGenerator::makeRandomSubsets ( const std::vector< uint > & subsetSizes ) const

private

Creates subsets based on random selection of views.

Ensures that each view appears only once in the entire set of subsets.

◆ setOrder()

void CTL::SimpleSubsetGenerator::setOrder ( SimpleSubsetGenerator::Order order )

Sets the order used for selecting views for a subset to order.

The following options of subset generation patterns are available:

Order::Random - randomly selects views for a subset
Order::Adjacent - puts adjacent views into a subset
Order::Orthogonal180 - selects sets of most orthogonal views, assuming the total scan range was 180 degrees
Order::Orthogonal360 - selects sets of most orthogonal views, assuming the total scan range was 360 degrees

Examples: see generateSubsetsImpl().

◆ toVariant()

QVariant CTL::SimpleSubsetGenerator::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::AbstractFixedSizeSubsetGenerator.

◆ type()

int CTL::SimpleSubsetGenerator::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractFixedSizeSubsetGenerator.

The documentation for this class was generated from the following files:

modules/src/recon/simplesubsetgenerator.h
modules/src/recon/simplesubsetgenerator.cpp

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Order

Constructor & Destructor Documentation

◆ SimpleSubsetGenerator()

Member Function Documentation

◆ fromVariant()

◆ generateSubsetsImpl()

◆ makeAdjacentSubsets()

◆ makeOrthogonalSubsets()

◆ makeRandomSubsets()

◆ setOrder()

◆ toVariant()

◆ type()
