The XraySpectrumTabulatedModel class provides an implementation of an X-ray spectrum model based on tabulated data. More...

#include <xrayspectrummodels.h>

Inheritance diagram for CTL::XraySpectrumTabulatedModel:

[legend]

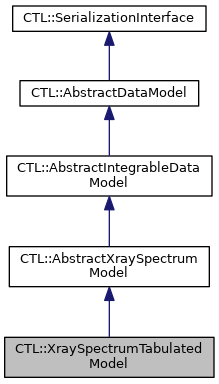

Collaboration diagram for CTL::XraySpectrumTabulatedModel:

[legend]

Public Types
enum	{ Type = 35 }

Public Types inherited from CTL::AbstractDataModel
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

float	valueAt (float position) const override
	Returns the value (i.e. photon count per energy) of the model at the given position (in keV). More...

float	binIntegral (float position, float binWidth) const override
	Returns the integral over model values (i.e. total number of photons) in the (energy) interval [position - 0.5 * binWidth, position + 0.5 * binWidth]. More...

XraySpectrumTabulatedModel *	clone () const override

	XraySpectrumTabulatedModel ()
	Creates an empty XraySpectrumTabulatedModel. More...

void	addLookupTable (float voltage, const TabulatedDataModel &table)
	Inserts table as a lookup table for the energy setting voltage. More...

void	setLookupTables (const QMap< float, TabulatedDataModel > &tables)
	Sets the lookup tables used by this instance to tables. More...

QVariant	parameter () const override

void	setParameter (const QVariant &parameter) override
	Sets the parameters of this instance based in data in parameter. More...

bool	hasTabulatedDataFor (float voltage) const
	Returns true if this instance can provide data for an energy parameter set to voltage. More...

Public Member Functions inherited from CTL::AbstractIntegrableDataModel
float	meanValue (float position, float binWidth) const

Public Member Functions inherited from CTL::AbstractDataModel
void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

bool	isIntegrable () const

void	setName (const QString &name)

const QString &	name () const

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Protected Attributes
QMap< float, TabulatedDataModel >	_lookupTables
	The spectra lookup tables (key = energy).

Protected Attributes inherited from CTL::AbstractXraySpectrumModel
float	_energy = 0.0f
	Control parameter of device setting (usually tube voltage).

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Protected Member Functions inherited from CTL::AbstractIntegrableDataModel
	AbstractIntegrableDataModel (const AbstractIntegrableDataModel &)=default

	AbstractIntegrableDataModel (AbstractIntegrableDataModel &&)=default

AbstractIntegrableDataModel &	operator= (const AbstractIntegrableDataModel &)=default

AbstractIntegrableDataModel &	operator= (AbstractIntegrableDataModel &&)=default

Protected Member Functions inherited from CTL::AbstractDataModel
	AbstractDataModel (const AbstractDataModel &)=default

	AbstractDataModel (AbstractDataModel &&)=default

AbstractDataModel &	operator= (const AbstractDataModel &)=default

AbstractDataModel &	operator= (AbstractDataModel &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Related Functions inherited from CTL::AbstractDataModel
	DataModelPtr
	Template alias name for CopyableUniquePtr<ModelType> to a suitable ModelType.

	AbstractDataModelPtr
	Alias name for DataModelPtr<AbstractDataModel>. More...

std::unique_ptr< ModelType >	makeDataModel (ConstructorArguments &&... arguments)

using DataModelPtr	CopyableUniquePtr
	Alias name for CopyableUniquePtr<ModelType> to a suitable ModelType.

Detailed Description

The XraySpectrumTabulatedModel class provides an implementation of an X-ray spectrum model based on tabulated data.

This class implements AbstractXraySpectrumModel with a backend of several TabulatedDataModel lookup tables. Each of these tables corresponds to a particular energy of operation (e.g. tube voltage). Lookup tables can be added through addLookupTable(). If an energy parameter is set for which no exact match exists in the lookup tables, interpolation between the tables closest to the requested energy parameter is performed.

Note that for introducing a fixed spectrum to the simulation (e.g. some spectrum pre-generated by an external tool), the class FixedXraySpectrumModel might be a more suitable choice.

Example: creating an XraySpectrumTabulatedModel with two lookup tables for spectra at 40 kV and 70 kV, and setting it to provide (interpolated) data for a 55 kV setting.

// we first create a TabulatedDataModel to hold our spectrum at a 40 kV setting
auto table_40kV = std::make_shared<TabulatedDataModel>();
table_40kV->setName("40 kV Table");         // optional name for visualization
// now, we fill in sampling points of the actual spectrum
table_40kV->insertDataPoint(0.0f, 0.0f);
table_40kV->insertDataPoint(10.0f, 15.0f);
table_40kV->insertDataPoint(20.0f, 4.0f);
table_40kV->insertDataPoint(30.0f, 1.5f);
table_40kV->insertDataPoint(40.0f, 0.0f);
// we create another TabulatedDataModel to hold a spectrum at a 70 kV setting
auto table_70kV = std::make_shared<TabulatedDataModel>();
table_70kV->setName("70 kV Table");         // optional name for visualization
// now, we fill in sampling points of the actual spectrum
table_70kV->insertDataPoint(0.0f, 0.0f);
table_70kV->insertDataPoint(10.0f, 10.0f);
table_70kV->insertDataPoint(20.0f, 9.0f);
table_70kV->insertDataPoint(30.0f, 6.0f);
table_70kV->insertDataPoint(40.0f, 5.0f);
table_70kV->insertDataPoint(50.0f, 3.0f);
table_70kV->insertDataPoint(60.0f, 1.0f);
table_70kV->insertDataPoint(70.0f, 0.0f);
// we now create our XraySpectrumTabulatedModel...
auto tabulatedSpectrum = std::make_shared<XraySpectrumTabulatedModel>();
// ... and add both lookup tables at their corresponding energies (i.e. 40 and 70 kV).
tabulatedSpectrum->addLookupTable(40.0f, *table_40kV);
tabulatedSpectrum->addLookupTable(70.0f, *table_70kV);
// we finally set the energy parameter of the XraySpectrumTabulatedModel to 55 kV
// this means that the model will try to provide a spectrum for a 55 kV setting
// (using interpolation between the two lookup tables)
tabulatedSpectrum->setParameter(55.0f);
// we could now sample values from the model; here we choose to visualize the model
// Note: Visualization requires 'gui_widgets_charts.pri' module
gui::plot(table_40kV);
gui::plot(table_70kV);
gui::plot(tabulatedSpectrum);

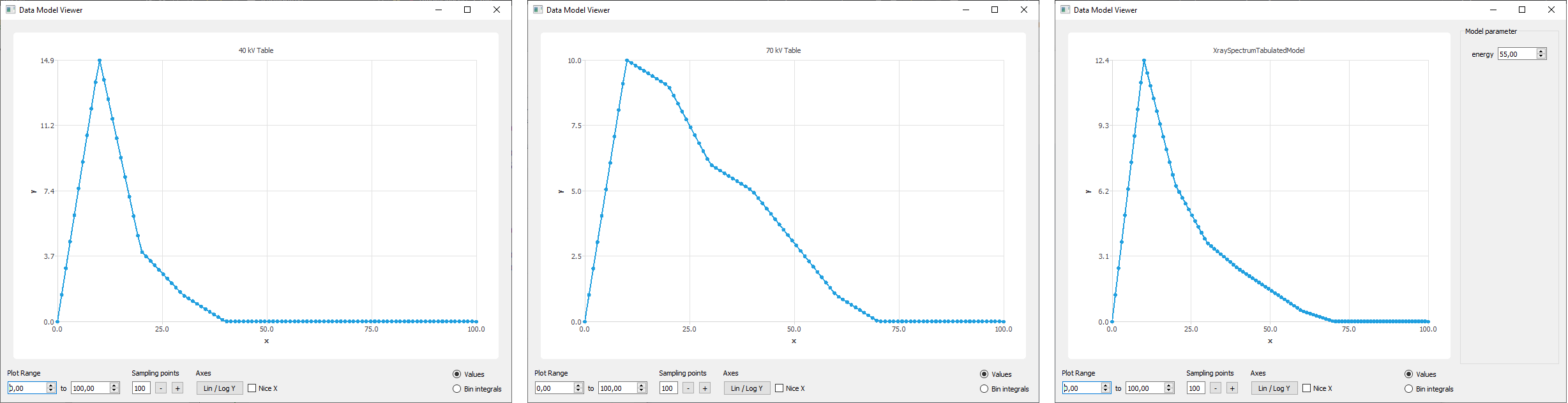

Visualization from the example. (left) Tabulated model for 40 kV, (center) Tabulated model for 70 kV, (left) XrayTabulatedDataModel containing both lookup tables (i.e. at 40 and 70 kV) and sampled at energy parameter 55 kV.

Constructor & Destructor Documentation

◆ XraySpectrumTabulatedModel()

CTL::XraySpectrumTabulatedModel::XraySpectrumTabulatedModel ( )

Creates an empty XraySpectrumTabulatedModel.

Use addLookupTable() or setLookupTables() to provide it with actual data.

Member Function Documentation

◆ addLookupTable()

void CTL::XraySpectrumTabulatedModel::addLookupTable	(	float	voltage,
		const TabulatedDataModel &	table
	)

Inserts table as a lookup table for the energy setting voltage.

Overrides any already existing table for that particular energy (i.e. voltage).

◆ binIntegral()

float CTL::XraySpectrumTabulatedModel::binIntegral	(	float	position,
		float	binWidth
	)		const

overridevirtual

Returns the integral over model values (i.e. total number of photons) in the (energy) interval [position - 0.5 * binWidth, position + 0.5 * binWidth].

The bin integral is computed using sampled values from the available lookup tables of this instance. If a lookup table is available for the exact energy currently set as parameter of this instance, this call reduces to a call of binIntegral() of that particular table (see also TabulatedDataModel::binIntegral()). In case an energy parameter is set for which no exact match exists in the lookup tables, (linear) interpolation between the tables closest to the requested energy parameter is performed by computing the bin integrals from the corresponding tables and computing the weighted sum.

Requires that either a lookup table for the exact energy (i.e. the current energy parameter of this instance) is available or at least one lookup table for an energy lower as well as higher than the current energy parameter must be present (see also hasTabulatedDataFor()).

Implements CTL::AbstractIntegrableDataModel.

◆ clone()

XraySpectrumTabulatedModel * CTL::XraySpectrumTabulatedModel::clone ( ) const

overridevirtual

Creates a copy of this instance and returns a base class pointer to the new object.

Implements CTL::AbstractXraySpectrumModel.

◆ hasTabulatedDataFor()

bool CTL::XraySpectrumTabulatedModel::hasTabulatedDataFor ( float voltage ) const

Returns true if this instance can provide data for an energy parameter set to voltage.

Data for a particular energy setting can be provided if there exists at least one lookup table for an energy lower and higher than voltage. The only exception is if a table with the exact energy (i.e. energy == voltage) is available, in which case this is sufficient to return true.

Returns true if these conditions are met; returns false otherwise (includes models without any lookup tables).

◆ parameter()

QVariant CTL::XraySpectrumTabulatedModel::parameter ( ) const

overridevirtual

Returns the parameters of this instance as a QVariant.

Re-implement this method within your sub-class such that it encapsulates all necessary information into a QVariant.

Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::parameter().toMap();
ret.insert("my new parameter", _myNewParameter);
return ret;

Reimplemented from CTL::AbstractXraySpectrumModel.

◆ setLookupTables()

void CTL::XraySpectrumTabulatedModel::setLookupTables ( const QMap< float, TabulatedDataModel > & tables )

Sets the lookup tables used by this instance to tables.

Each lookup table (one entry in the QMap) consist of a key-value-pair in which the key refers to the energy the table belongs to (e.g. tube voltage setting) and the value is the actual table (TabulatedDataModel) holding the spectrum data.

Overrides any already existing data.

◆ setParameter()

void CTL::XraySpectrumTabulatedModel::setParameter ( const QVariant & parameter )

overridevirtual

Sets the parameters of this instance based in data in parameter.

The passed QVariant paramter must be a QVariantMap containing the key-value-pair ("energy", [float] value_to_set) (see also AbstractXraySpectrumModel::setParameter()) and might also contain a key-value-pair with key "lookup tables" and a QVariantList holding the variants for all lookup tables that shall be set. Note that this overrides any already existing lookup tables.

In general, it is not advised to use this method to set lookup table data. Consider using addLookupTable() or setLookupTables() instead.

Reimplemented from CTL::AbstractXraySpectrumModel.

◆ type()

int CTL::XraySpectrumTabulatedModel::type ( ) const

inlineoverridevirtual

Returns the type id of this instance.

Reimplemented from CTL::AbstractDataModel.

◆ valueAt()

float CTL::XraySpectrumTabulatedModel::valueAt ( float position ) const

overridevirtual

Returns the value (i.e. photon count per energy) of the model at the given position (in keV).

The value is computed using sampled values from the available lookup tables of this instance. If a lookup table is available for the exact energy currently set as parameter of this instance, this call reduces to a call of valueAt() of that particular table (see also TabulatedDataModel::valueAt()). In case an energy parameter is set for which no exact match exists in the lookup tables, (linear) interpolation between the tables closest to the requested energy parameter is performed by sampling values from the corresponding tables and computing the weighted sum.

Requires that either a lookup table for the exact energy (i.e. the current energy parameter of this instance) is available or at least one lookup table for an energy lower as well as higher than the current energy parameter must be present (see also hasTabulatedDataFor()).

Implements CTL::AbstractDataModel.

The documentation for this class was generated from the following files:

modules/src/models/xrayspectrummodels.h
modules/src/models/xrayspectrummodels.cpp
