The OrthogonalSubsetGenerator class provides an implementation of subset generation considering real geometric orthogonality. More...

#include <orthogonalsubsetgenerator.h>

Inheritance diagram for CTL::OrthogonalSubsetGenerator:

[legend]

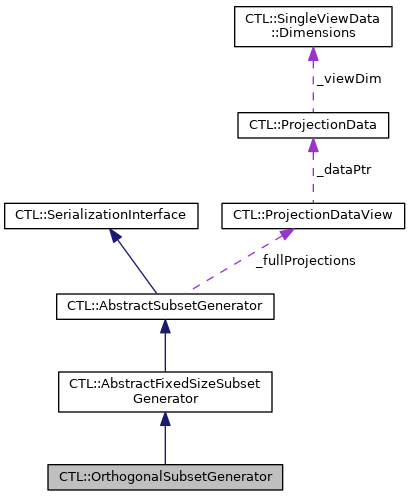

Collaboration diagram for CTL::OrthogonalSubsetGenerator:

[legend]

Classes
struct	Candidate

Public Types
enum	{ Type = 1011 }

Public Types inherited from CTL::AbstractFixedSizeSubsetGenerator
enum	{ Type = 1001 }

Public Types inherited from CTL::AbstractSubsetGenerator
enum	{ Type = 1000 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

	OrthogonalSubsetGenerator (uint nbSubsets=1u)
	Creates an OrthogonalSubsetGenerator that generates nbSubsets subsets. More...

void	setSetup (const AcquisitionSetup &setup) override
	Sets the AcquisitionSetup that belongs to the projection data to setup. More...

Public Member Functions inherited from CTL::AbstractFixedSizeSubsetGenerator
uint	nbSubsets () const
	Returns the number of subsets that are generated.

void	setNbSubsets (uint nbSubsets)
	Sets the number of subsets that will be generated to nbSubsets.

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

Public Member Functions inherited from CTL::AbstractSubsetGenerator
virtual void	setProjections (ProjectionDataView projections)
	Sets the projections that this instance shall operate on to projections. More...

void	setData (ProjectionDataView projections, const AcquisitionSetup &setup)
	Sets the projections to projections and the corresponding acquisition setup to setup. More...

std::vector< ProjectionDataView >	generateSubsets (uint iteration) const
	Generates the subsets for iteration iteration. More...

virtual std::vector< std::vector< ProjectionDataView > >	generateAllSubsets (uint nbIterations)
	Convenience method to generate subsets for a certain number of iterations. More...

bool	isSubsetPermutationEnabled () const
	Returns `true` if subset permutation is enabled; `false` otherwise.

const ProjectionDataView &	projections () const
	Returns the ProjectionDataView that has been set via setProjections().

uint	randomGeneratorSeed () const
	Returns the seed that has been used to seed the RNG of this instance. More...

void	setRandomGeneratorSeed (uint seed=std::random_device{}())
	Sets the seed of the RNG to seed and actually seeds the RNG.

void	setSubsetPermutationEnabled (bool enabled)
	Sets the use of subset permutation to enabled. More...

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Protected Member Functions
std::vector< ProjectionDataView >	generateSubsetsImpl (uint iteration) const override
	Implementation of the subset generation routine. More...

Protected Member Functions inherited from CTL::AbstractFixedSizeSubsetGenerator
	AbstractFixedSizeSubsetGenerator (uint nbSubsets=1u)
	Creates an AbstractFixedSizeSubsetGenerator and sets the number of subsets to nbSubsets.

Protected Member Functions inherited from CTL::AbstractSubsetGenerator
	AbstractSubsetGenerator ()
	Constructs an AbstractSubsetGenerator. More...

	AbstractSubsetGenerator (const AbstractSubsetGenerator &)=default

	AbstractSubsetGenerator (AbstractSubsetGenerator &&)=default

AbstractSubsetGenerator &	operator= (const AbstractSubsetGenerator &)=default

AbstractSubsetGenerator &	operator= (AbstractSubsetGenerator &&)=default

virtual void	shuffleSubsets (std::vector< ProjectionDataView > &subsets) const
	Randomly permutes the order of the subsets in subsets. More...

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Private Member Functions
ProjectionDataView	createSubset (std::vector< Candidate > &candidates, uint subsetSize) const
	Creates a subset from the data managed by this instance. More...

Private Attributes
std::vector< mat::Matrix< 3, 1 > >	_directionVectors
	source-to-detector vectors of the latest setup set

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Protected Attributes inherited from CTL::AbstractFixedSizeSubsetGenerator
uint	_nbSubsets = 1u

Protected Attributes inherited from CTL::AbstractSubsetGenerator
ProjectionDataView	_fullProjections = ProjectionDataView::invalidView()
	The projection data view this instance operates on.

std::mt19937	_rng
	random number generator (RNG) instance

uint	_rngSeed = 42
	value used to seed the RNG

bool	_permuteSubsets = true
	state variable if subset permutation is enabled

Related Functions inherited from CTL::AbstractFixedSizeSubsetGenerator
std::vector< uint >	subsetSizes (uint nbViews, uint nbSubsets, SubsetArrangement arrangement)
	Convenience helper function that calculates sizes for subsets given the total number of projections nbViews, the requested number of subsets nbSubsets and an arrangement type. More...

Detailed Description

The OrthogonalSubsetGenerator class provides an implementation of subset generation considering real geometric orthogonality.

This class implements the AbstractFixedSizeSubsetGenerator interface. The number of subsets that shall be generated can be specified in the constructor or later on through setNbSubsets().

The subset generation routine implemented by this class depends on the acquisition geometry referring to the projections that shall be divided into subsets. For that reason, the corresponding AcquisitionSetup needs to be set in advance of generating the subsets. This can be done individually through setSetup() or along with setting projection data using setData().

In order to assign individual views to a particular subset, the degree of orthogonality between the view directions (i.e. the source-to-detector vector) of all views already included in the subset and all remaining candidates (i.e. views from the full projection data that are not yet assigned to any subset) is computed. The candidate maximizing the average orthogonality is then subsequnetly added to the subset under construction and the full procedure is repeated until the required number (subject to the requested number of subsets) of views is reached.

Example: creating two subsets for a set of 18 views from a ShortScanTrajectory

constexpr uint nbViews = 18;
// first, we create the AcquisitionSetup with 'nbViews' and a ShortScanTrajectory
AcquisitionSetup setup(makeSimpleCTSystem<blueprints::GenericCarmCT>());
setup.setNbViews(nbViews);
setup.applyPreparationProtocol(protocols::ShortScanTrajectory(700.0));
// create some dummy projections (the actual dimensions are irrelevant here)
ProjectionData dummyProjections(1,1,1);
dummyProjections.allocateMemory(nbViews); // dummyProjections now contains 'nbViews' views
// create our subset generator and set the number of subsets to 2
OrthogonalSubsetGenerator subsetGen;
subsetGen.setNbSubsets(2);
// pass both projection data and the correponding setup to the generator
subsetGen.setData(dummyProjections, setup);
// create the subsets (note: iteration '0' is entirely arbitrary and has no particular effect)
const auto subsets = subsetGen.generateSubsets(0);
// print the ids of the views that have been assigned to our two subsets
for(const auto& subset : subsets)
    qInfo() << subset.viewIds();
    // output:
    // std::vector(17, 10, 5, 13, 3, 11, 2, 16, 1)
    // std::vector(0, 8, 4, 12, 6, 14, 7, 15, 9)
// out of interest:
// we want to compare that to a SimpleSubsetGenerator that assumes a 180 degree circle
SimpleSubsetGenerator simpleGen(2, SimpleSubsetGenerator::Orthogonal180);
simpleGen.setProjections(dummyProjections); // note that we do not need the AcquisitionSetup here
for(const auto& subset : simpleGen.generateSubsets(0))
    qInfo() << subset.viewIds();
    // output:
    // std::vector(12, 1, 10, 8, 17, 5, 14, 6, 15)
    // std::vector(0, 9, 4, 13, 7, 16, 2, 11, 3)

Constructor & Destructor Documentation

◆ OrthogonalSubsetGenerator()

CTL::OrthogonalSubsetGenerator::OrthogonalSubsetGenerator ( uint nbSubsets = 1u )

Creates an OrthogonalSubsetGenerator that generates nbSubsets subsets.

The number of subsets to create may be changed later on through setNbSubsets(). Please note that this subset generator requires a valid AcquisitionSetup that corresponds to the projections that shall be partitioned into subsets before requesting the subsets.

Example: creating four subsets for a set of 36 views from a WobbleTrajectory

constexpr uint nbViews = 36;
// first, we create the AcquisitionSetup with 'nbViews'
AcquisitionSetup setup(makeSimpleCTSystem<blueprints::GenericCarmCT>(), nbViews);
// here, we decide for a WobbleTrajectory as our acquisition geometry
setup.applyPreparationProtocol(protocols::WobbleTrajectory(700.0));
// create some dummy projections (the actual dimensions are irrelevant here)
ProjectionData dummyProjections(1,1,1);
dummyProjections.allocateMemory(nbViews); // dummyProjections now contains 'nbViews' views
// create our subset generator with four subsets
OrthogonalSubsetGenerator subsetGen(4);
// pass both projection data and the correponding setup to the generator
subsetGen.setData(dummyProjections, setup);
// create the subsets (note: iteration '0' is entirely arbitrary and has no particular effect)
const auto subsets = subsetGen.generateSubsets(0);
// print the ids of the views that have been assigned to our four subsets
for(const auto& subset : subsets)
    qInfo() << subset.viewIds();
    // output:
    // std::vector(31, 14, 29, 12, 30, 6, 32, 4, 3)
    // std::vector(0, 16, 26, 10, 23, 8, 1, 17, 25)
    // std::vector(33, 15, 22, 5, 21, 7, 27, 13, 28)
    // std::vector(35, 19, 9, 24, 2, 18, 34, 20, 11)

Member Function Documentation

◆ createSubset()

ProjectionDataView CTL::OrthogonalSubsetGenerator::createSubset	(	std::vector< Candidate > &	candidates,
		uint	subsetSize
	)		const

private

Creates a subset from the data managed by this instance.

This selects subsetSize views from the list of available candidates, w.r.t. the maximum orthogonality approach described in generateSubsetsImpl().

◆ generateSubsetsImpl()

std::vector< ProjectionDataView > CTL::OrthogonalSubsetGenerator::generateSubsetsImpl ( uint iteration ) const

overrideprotectedvirtual

Implementation of the subset generation routine.

This generates the subsets for the data that have been set through setData() (or individual calls of setSetup() and setProjections()). Please note that setting a valid AcquisitionSetup that corresponds to the projections is required before this method is called (i.e. before requesting the subsets).

Generates the same subsets independent of the iteration input.

The subset generation routine implemented by this class depends on the acquisition geometry referring to the projections that shall be divided into subsets: In order to assign individual views to a particular subset, the degree of orthogonality between the view directions (i.e. the source-to-detector vector) of all views already included in the subset and all remaining candidates (i.e. views from the full projection data that are not yet assigned to any subset) is computed. The candidate maximizing the average orthogonality is then subsequnetly added to the subset under construction and the full procedure is repeated until the required number (subject to the requested number of subsets) of views is reached.

Note that this procedure is solely based on the orthogonality of the direction vectors. This means, in particular, that shifted view positions are not considered at all when determining their information content for the purpose of their assignment to a subset.

Implements CTL::AbstractSubsetGenerator.

◆ setSetup()

void CTL::OrthogonalSubsetGenerator::setSetup ( const AcquisitionSetup & setup )

overridevirtual

Sets the AcquisitionSetup that belongs to the projection data to setup.

setup must be the AcquisitionSetup that describes the acquisition of the projection data passed to setProjections(). Please note that setup must always represent the full ProjectionData that is managed by the view passed to setProjections(). That means if the ProjectionDataView passed to setProjections() is already a subset, the setup passed here must still refer to the full ProjectionData the view belongs to.

This class extracts only the view directions, i.e. the vector pointing from the source position towards the detector position, from setup.

Reimplemented from CTL::AbstractSubsetGenerator.

◆ type()

int CTL::OrthogonalSubsetGenerator::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractFixedSizeSubsetGenerator.

The documentation for this class was generated from the following files:

modules/src/recon/orthogonalsubsetgenerator.h
modules/src/recon/orthogonalsubsetgenerator.cpp
