The XrayLaser class represents source components that emit monoenergetic radiation. More...

#include <xraylaser.h>

Inheritance diagram for CTL::XrayLaser:

[legend]

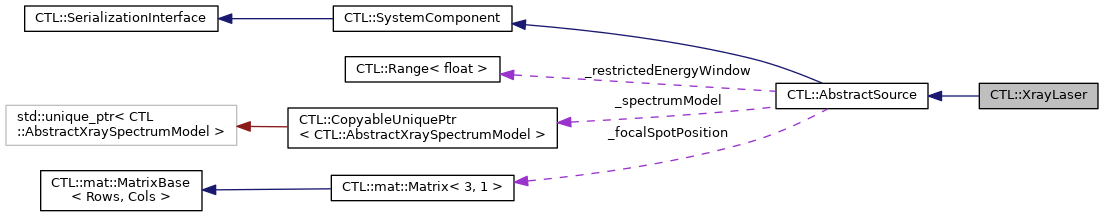

Collaboration diagram for CTL::XrayLaser:

[legend]

Public Types
enum	{ Type = 310 }

Public Types inherited from CTL::AbstractSource
enum	{ Type = 300 }

Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

EnergyRange	nominalEnergyRange () const override
	Returns the energy range [in keV] of the radiation emitted by this instance. More...

	XrayLaser (const QString &name)

	XrayLaser (double energy, double output, const QString &name=defaultName())

	XrayLaser (const QSizeF &focalSpotSize=QSizeF(0.0, 0.0), const Vector3x1 &focalSpotPosition=Vector3x1(0.0), double energy=100.0, double output=1.0, const QString &name=defaultName())

SystemComponent *	clone () const override

QString	info () const override

IntervalDataSeries	spectrum (uint nbSamples) const override
	Returns the (relative) emitted radiation spectrum sampled with nbSamples bins covering the energy range of [energyRange().start(), energyRange().end()] keV. More...

uint	spectrumDiscretizationHint () const override

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

double	photonEnergy () const

double	radiationOutput () const

void	setPhotonEnergy (double energy)

void	setRadiationOutput (double output)

Public Member Functions inherited from CTL::AbstractSource
virtual void	setSpectrumModel (AbstractXraySpectrumModel *model)

EnergyRange	energyRange () const

float	meanEnergy () const

double	photonFlux () const

double	fluxModifier () const

const QSizeF &	focalSpotSize () const

const Vector3x1 &	focalSpotPosition () const

const AbstractXraySpectrumModel *	spectrumModel () const

void	setFluxModifier (double modifier)

void	setFocalSpotSize (const QSizeF &size)

void	setFocalSpotSize (double width, double height)

void	setFocalSpotPosition (const Vector3x1 &position)

void	setFocalSpotPosition (double x, double y, double z)

void	setEnergyRangeRestriction (const EnergyRange &window)

IntervalDataSeries	spectrum (EnergyRange range, uint nbSamples) const

bool	hasSpectrumModel () const

void	setSpectrumModel (std::unique_ptr< AbstractXraySpectrumModel > model)

std::unique_ptr< GenericSource >	toGeneric () const

Public Member Functions inherited from CTL::SystemComponent
	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static QString	defaultName ()

Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Protected Member Functions
double	nominalPhotonFlux () const override

Protected Member Functions inherited from CTL::AbstractSource
	AbstractSource (const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const Vector3x1 &focalSpotPosition, const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const Vector3x1 &focalSpotPosition, AbstractXraySpectrumModel *spectumModel, const QString &name)

	AbstractSource (const AbstractSource &)=default

	AbstractSource (AbstractSource &&)=default

AbstractSource &	operator= (const AbstractSource &)=default

AbstractSource &	operator= (AbstractSource &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Protected Attributes
double	_energy
	Energy of the emitted photons (in keV).

double	_output
	Total emission output (in mWs).

Protected Attributes inherited from CTL::AbstractSource
QSizeF	_focalSpotSize = QSizeF(0.0, 0.0)
	Size of the focal spot (in mm).

Vector3x1	_focalSpotPosition = Vector3x1(0.0)
	Position of the focal spot (relative to source center).

double	_fluxModifier = 1.0
	Global (multiplicative) modifier for the photon flux.

DataModelPtr< AbstractXraySpectrumModel >	_spectrumModel
	Data model for the emitted radiation spectrum.

EnergyRange	_restrictedEnergyWindow = { 0.0f, 0.0f }
	Windowed energy range.

bool	_hasRestrictedEnergyWindow = false

Private Member Functions
virtual void	setSpectrumModel (AbstractXraySpectrumModel *model)

void	setSpectrumModel (std::unique_ptr< AbstractXraySpectrumModel > model)

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Static Public Attributes inherited from CTL::AbstractSource
static const uint	DEFAULT_SPECTRUM_RESOLUTION_HINT = 10

Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)

Related Functions inherited from CTL::AbstractSource
	EnergyRange
	Alias name for CTL::Range<float>. More...

Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Detailed Description

The XrayLaser class represents source components that emit monoenergetic radiation.

Constructor & Destructor Documentation

◆ XrayLaser() [1/3]

CTL::XrayLaser::XrayLaser ( const QString & name )

Constructs an XrayLaser named name.

The focal spot size defaults to QSizeF(0.0,0.0) and the focal spot position is set to Vector3x1(0.0f). Sets the photon energy to 100 keV and the total emitted output to 1.0 mWs.

◆ XrayLaser() [2/3]

CTL::XrayLaser::XrayLaser	(	double	energy,
		double	output,
		const QString &	name = `defaultName()`
	)

Constructs an XrayLaser that emits photons with an energy of energy and a total emitted output of output [in mWs]. Also sets the component's name to name.

The focal spot size defaults to QSizeF(0.0,0.0) and the focal spot position is set to Vector3x1(0.0f).

◆ XrayLaser() [3/3]

CTL::XrayLaser::XrayLaser	(	const QSizeF &	focalSpotSize = `QSizeF(0.0, 0.0)`,
		const Vector3x1 &	focalSpotPosition = `Vector3x1(0.0)`,
		double	energy = `100.0`,
		double	output = `1.0`,
		const QString &	name = `defaultName()`
	)

Constructs an XrayLaser with a focal spot size of focalSpotSize and its focal spot positioned at focalSpotPosition. Sets the energy of emitted photons to energy [in keV] and the total emitted output to output [in mWs]. Also sets the component's name to name.

Member Function Documentation

◆ clone()

SystemComponent * CTL::XrayLaser::clone ( ) const

overridevirtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented from CTL::SystemComponent.

◆ defaultName()

QString CTL::XrayLaser::defaultName ( )

static

Returns the default name for the component: "X-ray laser".

◆ fromVariant()

void CTL::XrayLaser::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractSource.

◆ info()

QString CTL::XrayLaser::info ( ) const

overridevirtual

Returns a formatted string with information about the object.

In addition to the information from the base class (SystemComponent), the info string contains the following details:

Energy of emitted photons
Total emitted radiation output

Reimplemented from CTL::AbstractSource.

◆ nominalEnergyRange()

EnergyRange CTL::XrayLaser::nominalEnergyRange ( ) const

overridevirtual

Returns the energy range [in keV] of the radiation emitted by this instance.

This returns an very small interval centered around the photon energy. In particular it returns [(1.0 - 1.0e-6) * photonEnergy, (1.0 + 1.0e-6) * photonEnergy].

Implements CTL::AbstractSource.

◆ nominalPhotonFlux()

double CTL::XrayLaser::nominalPhotonFlux ( ) const

overrideprotectedvirtual

Returns the nominal photon flux (photons/cm² in 1m distance).

This is computed as the quotient between the total emitted output and the energy of an individual photon.

Implements CTL::AbstractSource.

◆ photonEnergy()

double CTL::XrayLaser::photonEnergy ( ) const

Returns the energy of emitted photons (in keV).

◆ radiationOutput()

double CTL::XrayLaser::radiationOutput ( ) const

Returns the total emission output (in mWs). This refers to all radiation that is emitted to an area of 1cm² in a distance of 1m from the source.

◆ setPhotonEnergy()

void CTL::XrayLaser::setPhotonEnergy ( double energy )

Sets the energy of emitted photons to energy (in keV).

◆ setRadiationOutput()

void CTL::XrayLaser::setRadiationOutput ( double output )

Sets the total radiation output emitted to an area of 1cm² in a distance of 1m to output (in mWs).

◆ setSpectrumModel() [1/2]

void CTL::AbstractSource::setSpectrumModel

inlineprivate

Sets the spectrum model to model.

◆ setSpectrumModel() [2/2]

void CTL::AbstractSource::setSpectrumModel

inlineprivate

Sets the spectrum model to model.

This instance manages ownership of model as a std::shared_ptr.

◆ spectrum()

IntervalDataSeries CTL::XrayLaser::spectrum ( uint nbSamples ) const

overridevirtual

Returns the (relative) emitted radiation spectrum sampled with nbSamples bins covering the energy range of [energyRange().start(), energyRange().end()] keV.

Each energy bin in the returned data series is defined to represent the integral over the contribution to the total number of emitted photons of all energies within that particular bin. The individual contributions are extracted from the spectrum model of this component (see XrayLaserSpectrumModel).

The returned spectrum contains relative photon flux, i.e. the sum over all bins equals to one. To get quantitative energy-dependent photon flux values, multiply this (relative) spectrum with the photon flux constant (see photonFlux()).

Note that the recommended number of samples is one (see spectrumDiscretizationHint()). When using nbSamples > 1, the resulting spectrum may include two bins with a value of 0.5 or only a single bin with 1.0, depending on the numerics of the bin segregation.

Reimplemented from CTL::AbstractSource.

◆ spectrumDiscretizationHint()

uint CTL::XrayLaser::spectrumDiscretizationHint ( ) const

overridevirtual

Returns a hint for a reasonable number of sampling points when querying a spectrum of the component. This always returns 1, since a single energy bin is sufficient to represent monochromatic radiation.

Reimplemented from CTL::AbstractSource.

◆ toVariant()

QVariant CTL::XrayLaser::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::AbstractSource.

◆ type()

int CTL::XrayLaser::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractSource.

The documentation for this class was generated from the following files:

modules/src/components/xraylaser.h
modules/src/components/xraylaser.cpp
