Inheritance diagram for CTL::XrayTube:

[legend]

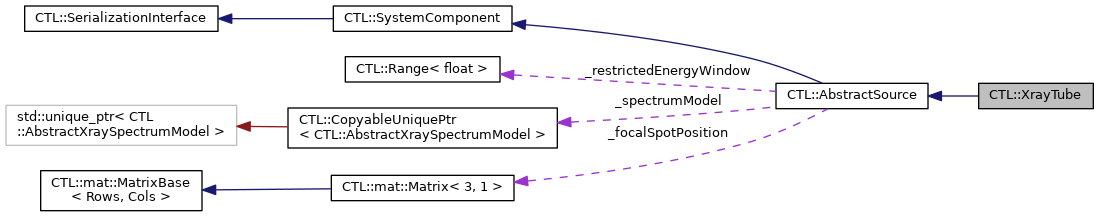

Collaboration diagram for CTL::XrayTube:

[legend]

Public Types
enum	{ Type = 320 }

Public Types inherited from CTL::AbstractSource
enum	{ Type = 300 }

Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

virtual EnergyRange	nominalEnergyRange () const override

	XrayTube (const QString &name)

	XrayTube (const QSizeF &focalSpotSize=QSizeF(0.0, 0.0), const Vector3x1 &focalSpotPosition=Vector3x1(0.0), double tubeVoltage=100.0, double mAs=1.0, const QString &name=defaultName())

	XrayTube (const QSizeF &focalSpotSize, double tubeVoltage, double mAs, const QString &name=defaultName())

	XrayTube (double tubeVoltage, double mAs, const QString &name=defaultName())

SystemComponent *	clone () const override

QString	info () const override

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

uint	spectrumDiscretizationHint () const override

double	tubeVoltage () const

double	mAs () const

void	setTubeVoltage (double voltage)

void	setMilliampereSeconds (double mAs)

Public Member Functions inherited from CTL::AbstractSource
virtual IntervalDataSeries	spectrum (uint nbSamples) const
	Returns the (relative) emitted radiation spectrum sampled with nbSamples bins covering the energy range of [energyRange().start(), energyRange().end()] keV. More...

virtual void	setSpectrumModel (AbstractXraySpectrumModel *model)

EnergyRange	energyRange () const

float	meanEnergy () const

double	photonFlux () const

double	fluxModifier () const

const QSizeF &	focalSpotSize () const

const Vector3x1 &	focalSpotPosition () const

const AbstractXraySpectrumModel *	spectrumModel () const

void	setFluxModifier (double modifier)

void	setFocalSpotSize (const QSizeF &size)

void	setFocalSpotSize (double width, double height)

void	setFocalSpotPosition (const Vector3x1 &position)

void	setFocalSpotPosition (double x, double y, double z)

void	setEnergyRangeRestriction (const EnergyRange &window)

IntervalDataSeries	spectrum (EnergyRange range, uint nbSamples) const

bool	hasSpectrumModel () const

void	setSpectrumModel (std::unique_ptr< AbstractXraySpectrumModel > model)

std::unique_ptr< GenericSource >	toGeneric () const

Public Member Functions inherited from CTL::SystemComponent
	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static QString	defaultName ()

Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Protected Member Functions
virtual double	nominalPhotonFlux () const override

Protected Member Functions inherited from CTL::AbstractSource
	AbstractSource (const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const Vector3x1 &focalSpotPosition, const QString &name)

	AbstractSource (const QSizeF &focalSpotSize, const Vector3x1 &focalSpotPosition, AbstractXraySpectrumModel *spectumModel, const QString &name)

	AbstractSource (const AbstractSource &)=default

	AbstractSource (AbstractSource &&)=default

AbstractSource &	operator= (const AbstractSource &)=default

AbstractSource &	operator= (AbstractSource &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Protected Attributes
double	_tubeVoltage = 100.0

double	_mAs = 1.0

double	_intensityConstant = 3.2e8

Protected Attributes inherited from CTL::AbstractSource
QSizeF	_focalSpotSize = QSizeF(0.0, 0.0)
	Size of the focal spot (in mm).

Vector3x1	_focalSpotPosition = Vector3x1(0.0)
	Position of the focal spot (relative to source center).

double	_fluxModifier = 1.0
	Global (multiplicative) modifier for the photon flux.

DataModelPtr< AbstractXraySpectrumModel >	_spectrumModel
	Data model for the emitted radiation spectrum.

EnergyRange	_restrictedEnergyWindow = { 0.0f, 0.0f }
	Windowed energy range.

bool	_hasRestrictedEnergyWindow = false

Private Member Functions
void	updateIntensityConstant ()

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Static Public Attributes inherited from CTL::AbstractSource
static const uint	DEFAULT_SPECTRUM_RESOLUTION_HINT = 10

Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)

Related Functions inherited from CTL::AbstractSource
	EnergyRange
	Alias name for CTL::Range<float>. More...

Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Constructor & Destructor Documentation

◆ XrayTube() [1/4]

CTL::XrayTube::XrayTube ( const QString & name )

Constructs an XrayTube named name.

This constructor defaults the focal spot size to QSizeF(0.0,0.0) and the focal spot position to Vector3x1(0.0). The tube (acceleration) voltage is set to 100 kV and the emission-current- time-product (used for a single X-ray shot) to 1.0 mAs.

◆ XrayTube() [2/4]

CTL::XrayTube::XrayTube	(	const QSizeF &	focalSpotSize = `QSizeF(0.0, 0.0)`,
		const Vector3x1 &	focalSpotPosition = `Vector3x1(0.0)`,
		double	tubeVoltage = `100.0`,
		double	mAs = `1.0`,
		const QString &	name = `defaultName()`
	)

Constructs an XrayTube with a focal spot size of focalSpotSize and its focal spot positioned at focalSpotPosition. Sets the tube (acceleration) voltage to tubeVoltage and the emission- current-time-product (used for a single X-ray shot) to mAs. Also sets the component's name to name.

◆ XrayTube() [3/4]

CTL::XrayTube::XrayTube	(	const QSizeF &	focalSpotSize,
		double	tubeVoltage,
		double	mAs,
		const QString &	name = `defaultName()`
	)

Constructs an XrayTube with a focal spot size of focalSpotSize. Sets the tube (acceleration) voltage to tubeVoltage and the emission-current-time-product (used for a single X-ray shot) to mAs. Also sets the component's name to name.

This constructor defaults the focal spot position to Vector3x1(0.0).

◆ XrayTube() [4/4]

CTL::XrayTube::XrayTube	(	double	tubeVoltage,
		double	mAs,
		const QString &	name = `defaultName()`
	)

Constructs an XrayTube with a tube (acceleration) voltage of tubeVoltage and an emission- current-time-product (used for a single X-ray shot) of mAs. Also sets the component's name to name.

This constructor defaults the focal spot size to QSizeF(0.0,0.0) and the focal spot position to Vector3x1(0.0).

Member Function Documentation

◆ clone()

SystemComponent * CTL::XrayTube::clone ( ) const

overridevirtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented from CTL::SystemComponent.

◆ defaultName()

QString CTL::XrayTube::defaultName ( )

static

Returns the default name for the component: "X-ray tube".

◆ fromVariant()

void CTL::XrayTube::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractSource.

◆ info()

QString CTL::XrayTube::info ( ) const

overridevirtual

Returns a formatted string with information about the object.

In addition to the information from the base class (SystemComponent), the info string contains the following details:

Tube voltage
Emission-current-time-product (mAs)

Reimplemented from CTL::AbstractSource.

◆ mAs()

double CTL::XrayTube::mAs ( ) const

Returns the emission-current-time-product (in mAs) for an individual X-ray shot.

◆ nominalEnergyRange()

EnergyRange CTL::XrayTube::nominalEnergyRange ( ) const

overridevirtual

Returns the energy range [in keV] of the radiation emitted by this instance.

This is [0 keV, e * tubeVoltage].

Implements CTL::AbstractSource.

◆ nominalPhotonFlux()

double CTL::XrayTube::nominalPhotonFlux ( ) const

overrideprotectedvirtual

Returns the nominal photon flux (photons/cm² in 1m distance).

This is the product of the emission-current-time-product (mAs) and the intensity constant.

Implements CTL::AbstractSource.

◆ setMilliampereSeconds()

void CTL::XrayTube::setMilliampereSeconds ( double mAs )

Sets the emission-current-time-product [in mAs] (used for a single X-ray shot) to mAs.

◆ setTubeVoltage()

void CTL::XrayTube::setTubeVoltage ( double voltage )

Sets the tube (acceleration) voltage to voltage (in kV).

◆ spectrumDiscretizationHint()

uint CTL::XrayTube::spectrumDiscretizationHint ( ) const

overridevirtual

Returns a hint for a reasonable number of sampling points when querying a spectrum of the XrayTube instance. This returns the number of samples (rounded up) required to cover the full energy range of this instance (see energyRange()) with a resolution of (at least) 10 keV. Returns a minimum of one sample.

Example:

 XrayTube tube; // Default tube voltage is 100kV.
 qInfo() << "Energy range:" << tube.energyRange().start() << tube.energyRange().end() << "keV";
 qInfo() << "Recommended nb. of samples:" << tube.spectrumDiscretizationHint();
 tube.setTubeVoltage(75.0);
 qInfo() << "Energy range:" << tube.energyRange().start() << tube.energyRange().end() << "keV";
 qInfo() << "Recommended nb. of samples:" << tube.spectrumDiscretizationHint();
// Output:
// Energy range: 0 100 keV
// Recommended nb. of samples: 10
// Energy range: 0 75 keV
// Recommended nb. of samples: 8

Reimplemented from CTL::AbstractSource.

◆ toVariant()

QVariant CTL::XrayTube::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::AbstractSource.

◆ tubeVoltage()

double CTL::XrayTube::tubeVoltage ( ) const

Returns the tube (acceleration) voltage (in kV).

◆ type()

int CTL::XrayTube::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractSource.

The documentation for this class was generated from the following files:

modules/src/components/xraytube.h
modules/src/components/xraytube.cpp
