CTL::GenericDetector Class Reference

Generic implementation of a detector component. More...

#include <genericdetector.h>

Inheritance diagram for CTL::GenericDetector:

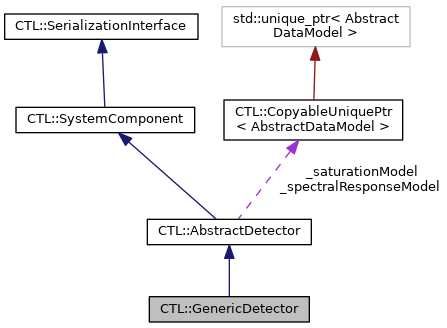

Collaboration diagram for CTL::GenericDetector:

Public Types
enum	{ Type = 101 }
Public Types inherited from CTL::AbstractDetector
enum	{ Type = 100 }
enum	SaturationModelType { Extinction, PhotonCount, Intensity, Undefined }
typedef mat::Location	ModuleLocation
Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }
Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override
QVector< ModuleLocation >	moduleLocations () const override
	GenericDetector (const QSize &nbPixelPerModule, uint nbModules, const QString &name=defaultName())
	GenericDetector (const QSize &nbPixelPerModule, const QSizeF &pixelSize, QVector< ModuleLocation > moduleLocations, const QString &name=defaultName())
SystemComponent *	clone () const override
QString	info () const override
void	fromVariant (const QVariant &variant) override
QVariant	toVariant () const override
std::unique_ptr< GenericDetector >	cloneWithOtherModuleLocations (QVector< ModuleLocation > moduleLocations) const
void	setModuleLocations (QVector< ModuleLocation > moduleLocations)
void	setPixelSize (const QSizeF &size)
void	setSkewAngle (double skewAngle)
Public Member Functions inherited from CTL::AbstractDetector
	AbstractDetector (const QSize &nbPixelPerModule, const QSizeF &pixelSize, const QString &name)
void	setSaturationModel (AbstractDataModel *model, SaturationModelType type)
void	setSaturationModel (std::unique_ptr< AbstractDataModel > model, SaturationModelType type)
void	setSpectralResponseModel (AbstractDataModel *model)
void	setSpectralResponseModel (std::unique_ptr< AbstractDataModel > model)
uint	nbDetectorModules () const
const QSize &	nbPixelPerModule () const
const QSizeF &	pixelDimensions () const
const QSizeF &	pixelSize () const
ModuleLocation	moduleLocation (uint module) const
const AbstractDataModel *	saturationModel () const
const AbstractDataModel *	spectralResponseModel () const
XYDataSeries	inputResponse (float from, float to, uint nbSamples) const
XYDataSeries	spectralResponse (float from, float to, uint nbSamples) const
SaturationModelType	saturationModelType () const
double	skewAngle () const
bool	hasSaturationModel () const
bool	hasSpectralResponseModel () const
QSizeF	moduleDimensions () const
SingleViewData::Dimensions	viewDimensions () const
std::unique_ptr< GenericDetector >	toGeneric () const
Public Member Functions inherited from CTL::SystemComponent
int	type () const override
	SystemComponent (const QString &name=defaultName())
virtual int	elementalType () const
void	fromVariant (const QVariant &variant) override
QVariant	toVariant () const override
const QString &	name () const
void	rename (QString name)
Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static std::unique_ptr< GenericDetector >	fromOther (const AbstractDetector &other)
static QString	defaultName ()
Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Protected Attributes
QVector< ModuleLocation >	_moduleLocations
	Vector of locations of all detector modules.
Protected Attributes inherited from CTL::AbstractDetector
QSize	_nbPixelPerModule
	Number of pixels in each detector module.
QSizeF	_pixelSize
	Size of individual pixels (in mm).
double	_skewAngle = 0.0
	obliqueness angle (specifies non-orthogonality of pixels)
AbstractDataModelPtr	_spectralResponseModel
	Data model for spectral detector response.
AbstractDataModelPtr	_saturationModel
	Data model for saturation of measured values.
SaturationModelType	_saturationModelType = Undefined
	States whether saturation model refers to intensity or extinction values.

Private Member Functions
	GenericDetector (const QString &name=defaultName())

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Protected Member Functions inherited from CTL::AbstractDetector
	AbstractDetector (const QString &name)
	AbstractDetector (const AbstractDetector &)=default
	AbstractDetector (AbstractDetector &&)=default
AbstractDetector &	operator= (const AbstractDetector &)=default
AbstractDetector &	operator= (AbstractDetector &&)=default
Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default
	SerializationInterface (const SerializationInterface &)=default
	SerializationInterface (SerializationInterface &&)=default
SerializationInterface &	operator= (const SerializationInterface &)=default
SerializationInterface &	operator= (SerializationInterface &&)=default
Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)
Related Functions inherited from CTL::AbstractDetector
std::unique_ptr< AbstractDetector >	makeDetector (ConstructorArguments &&... arguments)
Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)
std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Detailed Description

Generic implementation of a detector component.

This class implements AbstractDetector with a straightforward parametrization of the locations of individual flat panel detector modules. In particular, for each module, the location (i.e. position and rotation information) is stored in a private member of this class.

The required interface method moduleLocations() then simply returns this private member.

Use setModuleLocations() to change the location of the modules.

Constructor & Destructor Documentation

GenericDetector() [1/3]

CTL::GenericDetector::GenericDetector	(	const QSize &	nbPixelPerModule,
		uint	nbModules,
		const QString &	name = defaultName()
	)

Constructs a generic detector element with nbModules modules that have nbPixelPerModule pixels (channels x rows) with. The moduleLocation will have default constructed locations (position (0,0,0) and unity rotation matrix). Make sure to properly set the module locations using setModuleLocations(). The pixel size is initialized with default values of 1mm x 1mm (width mm x height mm). If necessary, adjust them using setPixelSize().

GenericDetector() [2/3]

CTL::GenericDetector::GenericDetector	(	const QSize &	nbPixelPerModule,
		const QSizeF &	pixelSize,
		QVector< ModuleLocation >	moduleLocations,
		const QString &	name = defaultName()
	)

Constructs a generic detector element with modules that have nbPixelPerModule pixels (channels x rows) with physical dimensions of pixelSize (width mm x height mm). The arrangement of the individual modules with respect to the entire detector system are specified in moduleLocations as a vector of ModuleLocation elements (each of which contain the modules position and rotation).

GenericDetector() [3/3]

CTL::GenericDetector::GenericDetector ( const QString &  name = defaultName() )

private

Constructs an empty object named name.

Member Function Documentation

clone()

SystemComponent * CTL::GenericDetector::clone ( ) const

overridevirtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented from CTL::SystemComponent.

defaultName()

QString CTL::GenericDetector::defaultName ( )

static

Returns the default name for the component: "Generic detector".

fromVariant()

void CTL::GenericDetector::fromVariant ( const QVariant &  variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);

// assuming our class has a member "double _myMemberVariable"

_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractDetector.

info()

QString CTL::GenericDetector::info ( ) const

overridevirtual

Returns a formatted string with information about the object.

In addition to the information from the base class, the info string contains the following details:

• Nb. of detector modules
• Nb. of pixels per module
• Pixel size.

Reimplemented from CTL::AbstractDetector.

moduleLocations()

QVector< AbstractDetector::ModuleLocation > CTL::GenericDetector::moduleLocations ( ) const

overridevirtual

Returns the vector that stores the module locations.

Each ModuleLocation object contains the position of the module in world coordinates as well as a rotation matrix that represents the transformation from the module's coordinate system to the CT-system (i.e. the coordinate system of the detector as a whole).

Implements CTL::AbstractDetector.

setModuleLocations()

void CTL::GenericDetector::setModuleLocations

(

QVector< ModuleLocation >

moduleLocations

)

Sets the module locations to moduleLocations.

setPixelSize()

void CTL::GenericDetector::setPixelSize

(

const QSizeF &

size

)

Sets the pixel size to size.

Pixel sizes always refer to the pixel's rectangular (i.e. unskewed) shape.

setSkewAngle()

void CTL::GenericDetector::setSkewAngle

(

double

skewAngle

)

Sets the skew angle to skewAngle. The skew angle refers to the angle between the oblique pixel edge and the (imaginary) edge of a corresponding rectangular pixel.

This is zero if the detector coordinate system is orthogonal.

toVariant()

QVariant CTL::GenericDetector::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();

ret.insert("my member variable", _myMemberVariable);

return ret;

Reimplemented from CTL::AbstractDetector.

type()

int CTL::GenericDetector::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractDetector.

---

The documentation for this class was generated from the following files:

• modules/src/components/genericdetector.h
• modules/src/components/genericdetector.cpp
