Specialized sub-class of AbstractDetector for detector systems with cylindrical arrangement of modules. More...

#include <cylindricaldetector.h>

Inheritance diagram for CTL::CylindricalDetector:

[legend]

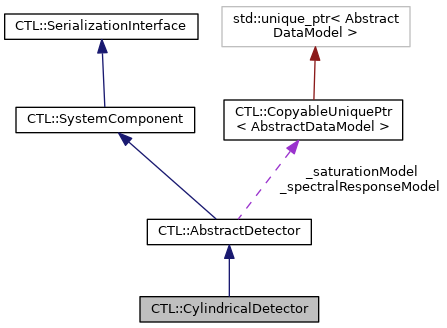

Collaboration diagram for CTL::CylindricalDetector:

[legend]

Public Types
enum	{ Type = 110 }

Public Types inherited from CTL::AbstractDetector
enum	{ Type = 100 }

enum	SaturationModelType { Extinction, PhotonCount, Intensity, Undefined }

typedef mat::Location	ModuleLocation

Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

QVector< ModuleLocation >	moduleLocations () const override
	Computes the locations, i.e. their relative position and orientation w.r.t. the center of the full detector, of all detector modules. More...

	CylindricalDetector (const QSize &nbPixelPerModule, const QSizeF &pixelSize, uint nbDetectorModules, double angulationPerModule, double moduleSpacing, const QString &name=defaultName())

SystemComponent *	clone () const override

QString	info () const override

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

double	angulationOfModule (uint module) const

double	moduleSpacing () const

double	coneAngle () const

double	curvatureRadius () const

double	fanAngle () const

double	rowCoverage () const

Public Member Functions inherited from CTL::AbstractDetector
	AbstractDetector (const QSize &nbPixelPerModule, const QSizeF &pixelSize, const QString &name)

void	setSaturationModel (AbstractDataModel *model, SaturationModelType type)

void	setSaturationModel (std::unique_ptr< AbstractDataModel > model, SaturationModelType type)

void	setSpectralResponseModel (AbstractDataModel *model)

void	setSpectralResponseModel (std::unique_ptr< AbstractDataModel > model)

uint	nbDetectorModules () const

const QSize &	nbPixelPerModule () const

const QSizeF &	pixelDimensions () const

const QSizeF &	pixelSize () const

ModuleLocation	moduleLocation (uint module) const

const AbstractDataModel *	saturationModel () const

const AbstractDataModel *	spectralResponseModel () const

XYDataSeries	inputResponse (float from, float to, uint nbSamples) const

XYDataSeries	spectralResponse (float from, float to, uint nbSamples) const

SaturationModelType	saturationModelType () const

double	skewAngle () const

bool	hasSaturationModel () const

bool	hasSpectralResponseModel () const

QSizeF	moduleDimensions () const

SingleViewData::Dimensions	viewDimensions () const

std::unique_ptr< GenericDetector >	toGeneric () const

Public Member Functions inherited from CTL::SystemComponent
int	type () const override

	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static CylindricalDetector	fromAngulationAndSpacing (const QSize &nbPixelPerModule, const QSizeF &pixelSize, uint nbDetectorModules, double angulationPerModule, double moduleSpacing, const QString &name=defaultName())

static CylindricalDetector	fromRadiusAndFanAngle (const QSize &nbPixelPerModule, const QSizeF &pixelSize, uint nbDetectorModules, double radius, double fanAngle, const QString &name=defaultName())

static QString	defaultName ()

Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Protected Attributes
uint	_nbModules
	Number of individual (flat-panel) modules in the detector.

double	_angulationPerModule
	Angulation (in rad) between adjacent detector modules.

double	_moduleSpacing
	Gap between adjacent detector modules (zero if fitting tight).

Protected Attributes inherited from CTL::AbstractDetector
QSize	_nbPixelPerModule
	Number of pixels in each detector module.

QSizeF	_pixelSize
	Size of individual pixels (in mm).

double	_skewAngle = 0.0
	obliqueness angle (specifies non-orthogonality of pixels)

AbstractDataModelPtr	_spectralResponseModel
	Data model for spectral detector response.

AbstractDataModelPtr	_saturationModel
	Data model for saturation of measured values.

SaturationModelType	_saturationModelType = Undefined
	States whether saturation model refers to intensity or extinction values.

Private Member Functions
	CylindricalDetector (const QString &name=defaultName())

double	moduleWidth () const

void	setAngulationFromFanAngle (uint nbModules, double fanAngle, double radius)

void	setSpacingFromRadius (double radius)

QVector< double >	moduleAngulations () const

QVector< ModuleLocation >	moduleLocationsFlatApprox () const
	Computes the locations, i.e. their relative position and orientation w.r.t. the center of the full detector, of all detector modules based on a flat detector approximation. More...

Static Private Attributes
static constexpr auto	MIN_ANGUL = 1.0e-6

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Protected Member Functions inherited from CTL::AbstractDetector
	AbstractDetector (const QString &name)

	AbstractDetector (const AbstractDetector &)=default

	AbstractDetector (AbstractDetector &&)=default

AbstractDetector &	operator= (const AbstractDetector &)=default

AbstractDetector &	operator= (AbstractDetector &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)

Related Functions inherited from CTL::AbstractDetector
std::unique_ptr< AbstractDetector >	makeDetector (ConstructorArguments &&... arguments)

Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Detailed Description

Specialized sub-class of AbstractDetector for detector systems with cylindrical arrangement of modules.

This class implements a structure to describe cylindrical detector systems. The detector system consists of multiple flat panel modules that are organized in a linear fashion, i.e. the system can be described as one row of modules. In this geometry, all center points of the modules lay on a cylindrical surface. The geometry is specified by the angulation between adjacent modules and the (optional) spacing in between them.

Constructor & Destructor Documentation

◆ CylindricalDetector() [1/2]

CTL::CylindricalDetector::CylindricalDetector	(	const QSize &	nbPixelPerModule,
		const QSizeF &	pixelSize,
		uint	nbDetectorModules,
		double	angulationPerModule,
		double	moduleSpacing,
		const QString &	name = `defaultName()`
	)

Constructs a CylindricalDetector object that is composed of nbDetectorModules (flat-panel) detector modules, each of which with nbPixelPerModule pixels with physical dimensions pixelSize. The arrangement of the individual modules is constructed based on the angulationPerModule and moduleSpacing parameters.

◆ CylindricalDetector() [2/2]

CTL::CylindricalDetector::CylindricalDetector ( const QString & name = defaultName() )

private

Constructs an empty (invalid) CylindricalDetector object.

To be used only in combination with deserialization by means of fromVariant().

Member Function Documentation

◆ angulationOfModule()

double CTL::CylindricalDetector::angulationOfModule ( uint module ) const

Returns the angulation of module module (in radians) with respect to the center of the detector.

◆ clone()

SystemComponent * CTL::CylindricalDetector::clone ( ) const

overridevirtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented from CTL::SystemComponent.

◆ coneAngle()

double CTL::CylindricalDetector::coneAngle ( ) const

Returns the cone angle of the detector.

The cone angle is computed under the assumption that a point source located at the distance of the curvature radius is used.

◆ curvatureRadius()

double CTL::CylindricalDetector::curvatureRadius ( ) const

Returns the curvature radius of the given detector arrangement.

This is computed as: \(r=d/\sqrt{2(1-\cos\alpha)}\) where \(r\) denotes the curvature radius and \(\alpha=\mathtt{\_angulationPerModule}\). The length \(d\) is computed as follows: \(d=\mathtt{\_moduleSpacing}+\mathtt{\_moduleWidth}\cdot\cos\left(\alpha/2\right)\).

Returns std::numeric_limits<double>::max() if the module angulation is zero (flat panel),

◆ defaultName()

QString CTL::CylindricalDetector::defaultName ( )

static

Returns the default name for the component: "Cylindrical detector".

◆ fanAngle()

double CTL::CylindricalDetector::fanAngle ( ) const

Returns the total fan angle covered by the detector.

This contains the angle between all modules and the fan angle of one isolated module (two times half a module at the borders of the detector): \(\mathtt{fanAngle}=\left(\mathtt{nbModule}-1\right)\cdot\alpha+2\cdot\arctan(\mathtt{moduleWidth}/ (2\cdot\mathtt{radius})\)

◆ fromAngulationAndSpacing()

CylindricalDetector CTL::CylindricalDetector::fromAngulationAndSpacing	(	const QSize &	nbPixelPerModule,
		const QSizeF &	pixelSize,
		uint	nbDetectorModules,
		double	angulationPerModule,
		double	moduleSpacing,
		const QString &	name = `defaultName()`
	)

static

Factory method to construct a CylindricalDetector from the parameters angulationPerModule and moduleSpacing. This method simply calls the constructor.

See also: CylindricalDetector().

◆ fromRadiusAndFanAngle()

CylindricalDetector CTL::CylindricalDetector::fromRadiusAndFanAngle	(	const QSize &	nbPixelPerModule,
		const QSizeF &	pixelSize,
		uint	nbDetectorModules,
		double	radius,
		double	fanAngle,
		const QString &	name = `defaultName()`
	)

static

Factory method to construct a CylindricalDetector from the parameters radius and fanAngle instead of module spacing and angulation (as used in the constructor). Use this factory if you want to specify the detector system by its curvature radius and fan angle.

Module angulation and spacing are computed using setAngulationFromFanAngle() and setSpacingFromRadius(), respectively.

◆ fromVariant()

void CTL::CylindricalDetector::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractDetector.

◆ info()

QString CTL::CylindricalDetector::info ( ) const

overridevirtual

Returns a formatted string with information about the object.

In addition to the information from the base classes (GenericDetector and GenericComponent), the info string contains the following details:

Fan angle
Cone angle
Row coverage
Curvature radius

Reimplemented from CTL::AbstractDetector.

◆ moduleAngulations()

QVector< double > CTL::CylindricalDetector::moduleAngulations ( ) const

private

Computes and returns a vector \(\vec{\varphi}\) with equidistributed angulation values.

For a given number of \(N\) modules (extracted using nbDetectorModules()) and an angulation \(\alpha\) between adjacent modules (angulationPerModule), this is yields: \( \vec{\varphi}=\begin{cases} \left(-(N-1)/2\cdot\alpha,-(N-2)/2\cdot\alpha,...,0,...,(N-2)/2\cdot\alpha,(N-1)/2\cdot\alpha \right) & N\,\textrm{odd}\\ \left(-(N-1)/2\cdot\alpha,-(N-2)/2\cdot\alpha,...,-1/2\cdot\alpha,1/2\cdot\alpha,...,(N-2)/2 \cdot\alpha,(N-1)/2\cdot\alpha\right) & N\,\textrm{even} \end{cases} \)

◆ moduleLocations()

QVector< AbstractDetector::ModuleLocation > CTL::CylindricalDetector::moduleLocations ( ) const

overridevirtual

Computes the locations, i.e. their relative position and orientation w.r.t. the center of the full detector, of all detector modules.

Computation is based on the defining parameters radius (extracted using curvatureRadius()) and _angulationPerModule.

This will be delegated to the flat panel approximation if _angulationPerModule < MIN_ANGUL.

See also: moduleLocationsFlatApprox().

Implements CTL::AbstractDetector.

◆ moduleLocationsFlatApprox()

QVector< AbstractDetector::ModuleLocation > CTL::CylindricalDetector::moduleLocationsFlatApprox ( ) const

private

Computes the locations, i.e. their relative position and orientation w.r.t. the center of the full detector, of all detector modules based on a flat detector approximation.

This will be used when the module angulation is smaller than MIN_ANGUL. In this approximation, all modules will be placed within one plane, with their centers aligned on the x-axis. The spacing between the modules will be the requested _moduleSpacing.

Note that other (informative) values of this instance, such as curvatureRadius() and angle coverages (fanAngle(), coneAngle()) will contain inconsistent information in this approximation case.

◆ moduleSpacing()

double CTL::CylindricalDetector::moduleSpacing ( ) const

Returns the spacing between individual modules in this instance. Spacing refers to the edge-to-edge distance between adjacent modules in x-direction.

◆ moduleWidth()

double CTL::CylindricalDetector::moduleWidth ( ) const

private

Returns the width (in mm) of an individual module. Computes as number of pixels times width of a pixel.

◆ rowCoverage()

double CTL::CylindricalDetector::rowCoverage ( ) const

Returns the total coverage (in mm) by the rows of the detector. This is computed as number of rows times height of a module.

◆ setAngulationFromFanAngle()

void CTL::CylindricalDetector::setAngulationFromFanAngle	(	uint	nbModules,
		double	fanAngle,
		double	radius
	)

private

Sets the module angulations based on the parameters nbModules, fanAngle, and radius.

To do so, the required angulation per module \(\alpha\) is computed as: \(\alpha=\left(\mathtt{fanAngle}-2\cdot\arctan(\mathtt{moduleWidth}/(2\cdot\mathtt{radius}) \right)/\left(\mathtt{nbModule}-1\right).\)

◆ setSpacingFromRadius()

void CTL::CylindricalDetector::setSpacingFromRadius ( double radius )

private

Sets the module spacing based on the radius.

◆ toVariant()

QVariant CTL::CylindricalDetector::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::AbstractDetector.

◆ type()

int CTL::CylindricalDetector::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractDetector.

The documentation for this class was generated from the following files:

modules/src/components/cylindricaldetector.h
modules/src/components/cylindricaldetector.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Static Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CylindricalDetector() [1/2]

◆ CylindricalDetector() [2/2]

Member Function Documentation

◆ angulationOfModule()

◆ clone()

◆ coneAngle()

◆ curvatureRadius()

◆ defaultName()

◆ fanAngle()

◆ fromAngulationAndSpacing()

◆ fromRadiusAndFanAngle()

◆ fromVariant()

◆ info()

◆ moduleAngulations()

◆ moduleLocations()

◆ moduleLocationsFlatApprox()

◆ moduleSpacing()

◆ moduleWidth()

◆ rowCoverage()

◆ setAngulationFromFanAngle()

◆ setSpacingFromRadius()

◆ toVariant()

◆ type()
