Specialized sub-class of AbstractDetector for flat panel detectors. More...

#include <flatpaneldetector.h>

Inheritance diagram for CTL::FlatPanelDetector:

[legend]

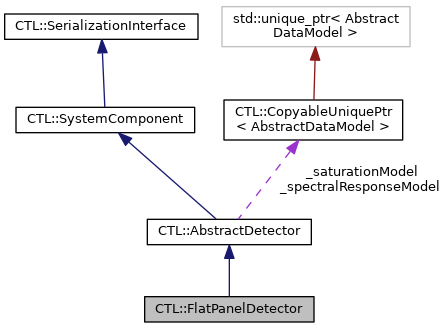

Collaboration diagram for CTL::FlatPanelDetector:

[legend]

Public Types
enum	{ Type = 120 }

Public Types inherited from CTL::AbstractDetector
enum	{ Type = 100 }

enum	SaturationModelType { Extinction, PhotonCount, Intensity, Undefined }

typedef mat::Location	ModuleLocation

Public Types inherited from CTL::SystemComponent
enum	{ Type = 0 }

Public Types inherited from CTL::SerializationInterface
enum	{ Type = -1, UserType = 65536 }

Public Member Functions
int	type () const override

QVector< ModuleLocation >	moduleLocations () const override

	FlatPanelDetector (const QSize &nbPixels, const QSizeF &pixelSize, const QString &name=defaultName())

SystemComponent *	clone () const override

QString	info () const override

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

ModuleLocation	location () const

const QSize &	nbPixels () const

QSizeF	panelDimensions () const

QSizeF	panelSize () const

Public Member Functions inherited from CTL::AbstractDetector
	AbstractDetector (const QSize &nbPixelPerModule, const QSizeF &pixelSize, const QString &name)

void	setSaturationModel (AbstractDataModel *model, SaturationModelType type)

void	setSaturationModel (std::unique_ptr< AbstractDataModel > model, SaturationModelType type)

void	setSpectralResponseModel (AbstractDataModel *model)

void	setSpectralResponseModel (std::unique_ptr< AbstractDataModel > model)

uint	nbDetectorModules () const

const QSize &	nbPixelPerModule () const

const QSizeF &	pixelDimensions () const

const QSizeF &	pixelSize () const

ModuleLocation	moduleLocation (uint module) const

const AbstractDataModel *	saturationModel () const

const AbstractDataModel *	spectralResponseModel () const

XYDataSeries	inputResponse (float from, float to, uint nbSamples) const

XYDataSeries	spectralResponse (float from, float to, uint nbSamples) const

SaturationModelType	saturationModelType () const

double	skewAngle () const

bool	hasSaturationModel () const

bool	hasSpectralResponseModel () const

QSizeF	moduleDimensions () const

SingleViewData::Dimensions	viewDimensions () const

std::unique_ptr< GenericDetector >	toGeneric () const

Public Member Functions inherited from CTL::SystemComponent
int	type () const override

	SystemComponent (const QString &name=defaultName())

virtual int	elementalType () const

void	fromVariant (const QVariant &variant) override

QVariant	toVariant () const override

const QString &	name () const

void	rename (QString name)

Public Member Functions inherited from CTL::SerializationInterface
virtual	~SerializationInterface ()=default

Static Public Member Functions
static QString	defaultName ()

Static Public Member Functions inherited from CTL::SystemComponent
static QString	defaultName ()

Friends
template<class >
struct	SerializationHelper::RegisterWithSerializationHelper

Additional Inherited Members
Protected Member Functions inherited from CTL::AbstractDetector
	AbstractDetector (const QString &name)

	AbstractDetector (const AbstractDetector &)=default

	AbstractDetector (AbstractDetector &&)=default

AbstractDetector &	operator= (const AbstractDetector &)=default

AbstractDetector &	operator= (AbstractDetector &&)=default

Protected Member Functions inherited from CTL::SerializationInterface
	SerializationInterface ()=default

	SerializationInterface (const SerializationInterface &)=default

	SerializationInterface (SerializationInterface &&)=default

SerializationInterface &	operator= (const SerializationInterface &)=default

SerializationInterface &	operator= (SerializationInterface &&)=default

Static Protected Member Functions inherited from CTL::SystemComponent
static QString	typeInfoString (const std::type_info &type)

Protected Attributes inherited from CTL::AbstractDetector
QSize	_nbPixelPerModule
	Number of pixels in each detector module.

QSizeF	_pixelSize
	Size of individual pixels (in mm).

double	_skewAngle = 0.0
	obliqueness angle (specifies non-orthogonality of pixels)

AbstractDataModelPtr	_spectralResponseModel
	Data model for spectral detector response.

AbstractDataModelPtr	_saturationModel
	Data model for saturation of measured values.

SaturationModelType	_saturationModelType = Undefined
	States whether saturation model refers to intensity or extinction values.

Related Functions inherited from CTL::AbstractDetector
std::unique_ptr< AbstractDetector >	makeDetector (ConstructorArguments &&... arguments)

Related Functions inherited from CTL::SystemComponent
std::unique_ptr< ComponentType >	makeComponent (ConstructorArguments &&... arguments)

std::unique_ptr< SystemComponent >	makeComponentFromJson (const QJsonObject &object, bool fallbackToGenericType)

Detailed Description

Specialized sub-class of AbstractDetector for flat panel detectors.

Contrary to the AbstractDetector class, this class is intended to hold only a single detector module.

Constructor & Destructor Documentation

◆ FlatPanelDetector()

CTL::FlatPanelDetector::FlatPanelDetector	(	const QSize &	nbPixels,
		const QSizeF &	pixelSize,
		const QString &	name = `defaultName()`
	)

Constructs a FlatPanelDetector with nbPixels pixels which have a dimension specified by pixelSize.

See also: GenericDetector::GenericDetector().

Member Function Documentation

◆ clone()

SystemComponent * CTL::FlatPanelDetector::clone ( ) const

overridevirtual

Constructs a copy of the object and returns a base class pointer to it.

Reimplemented from CTL::SystemComponent.

◆ defaultName()

QString CTL::FlatPanelDetector::defaultName ( )

static

Returns the default name for the component: "Flat panel detector".

◆ fromVariant()

void CTL::FlatPanelDetector::fromVariant ( const QVariant & variant )

overridevirtual

Interface to read all member variables from the QVariant variant.

Reimplement this method such that it reads all newly introduced content when sub-classing. A typical reimplementation in sub-classes might look like this:

DirectBaseClass::fromVariant(variant);
// assuming our class has a member "double _myMemberVariable"
_myMemberVariable = variant.toMap().value("my member variable").toDouble();

Reimplemented from CTL::AbstractDetector.

◆ info()

QString CTL::FlatPanelDetector::info ( ) const

overridevirtual

Returns a formatted string with information about the object.

Reimplemented from CTL::AbstractDetector.

◆ location()

AbstractDetector::ModuleLocation CTL::FlatPanelDetector::location ( ) const

Returns the location of the detector module.

Convenience method: same as moduleLocations().first().

◆ moduleLocations()

QVector< AbstractDetector::ModuleLocation > CTL::FlatPanelDetector::moduleLocations ( ) const

overridevirtual

Returns the location (i.e. position and rotation) of all individual detector modules with respect to the (physical) center of the detector. These locations are considered in addition to the global positioning of the detector (managed by AbstractGantry).

Implement this method in derived classes to compute the locations of individual modules based on the specific parametrization of that particular sub-class.

Implements CTL::AbstractDetector.

◆ nbPixels()

const QSize & CTL::FlatPanelDetector::nbPixels ( ) const

Returns the number of pixels in the detector module.

Convenience method: same as nbPixelPerModule().

◆ panelDimensions()

QSizeF CTL::FlatPanelDetector::panelDimensions ( ) const

This function has been deprecated. Use panelSize() instead.

◆ panelSize()

QSizeF CTL::FlatPanelDetector::panelSize ( ) const

Returns the physical dimensions of the flat panel module (i.e. [width, height] in mm).

◆ toVariant()

QVariant CTL::FlatPanelDetector::toVariant ( ) const

overridevirtual

Interface to store all member variables in a QVariant.

Stores the object's type-id.

Reimplement this method such that it stores all newly introduced object data when sub-classing. This needs to cover everything that is necessary to fully determine the state of an object. Best practice is to invoke the base class version of this method to take care of all content originating from underlying base classes.

A typical reimplementation in sub-classes might look like this:

QVariantMap ret = DirectBaseClass::toVariant().toMap();
ret.insert("my member variable", _myMemberVariable);
return ret;

Reimplemented from CTL::AbstractDetector.

◆ type()

int CTL::FlatPanelDetector::type ( ) const

inlineoverridevirtual

Returns the type-id of the serializable object. Used in deserialization to determine the proper object type.

Add derived classes to the enumeration using the CTL_TYPE_ID macro.

Reimplemented from CTL::AbstractDetector.

The documentation for this class was generated from the following files:

modules/src/components/flatpaneldetector.h
modules/src/components/flatpaneldetector.cpp
